Create Limit Box

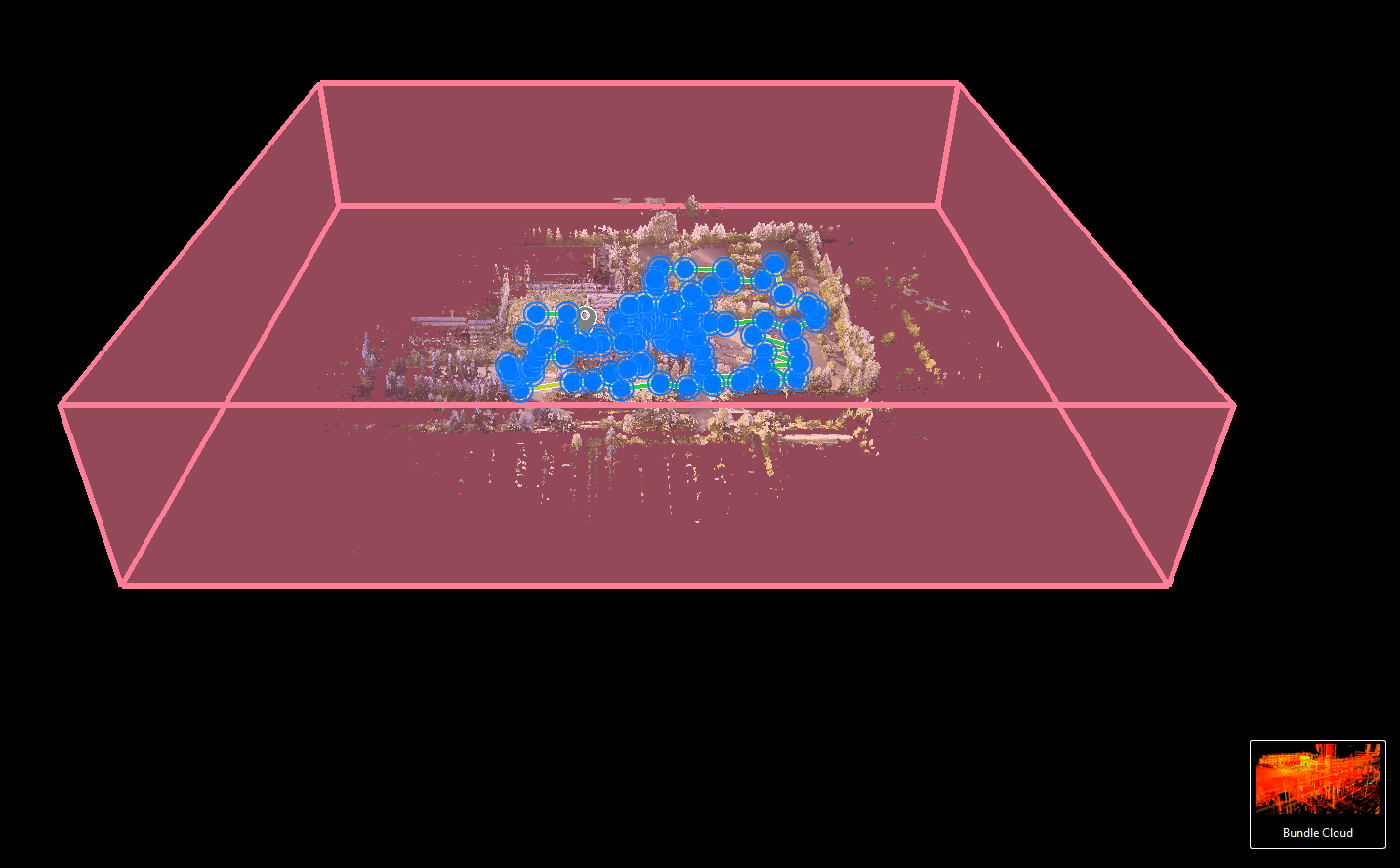

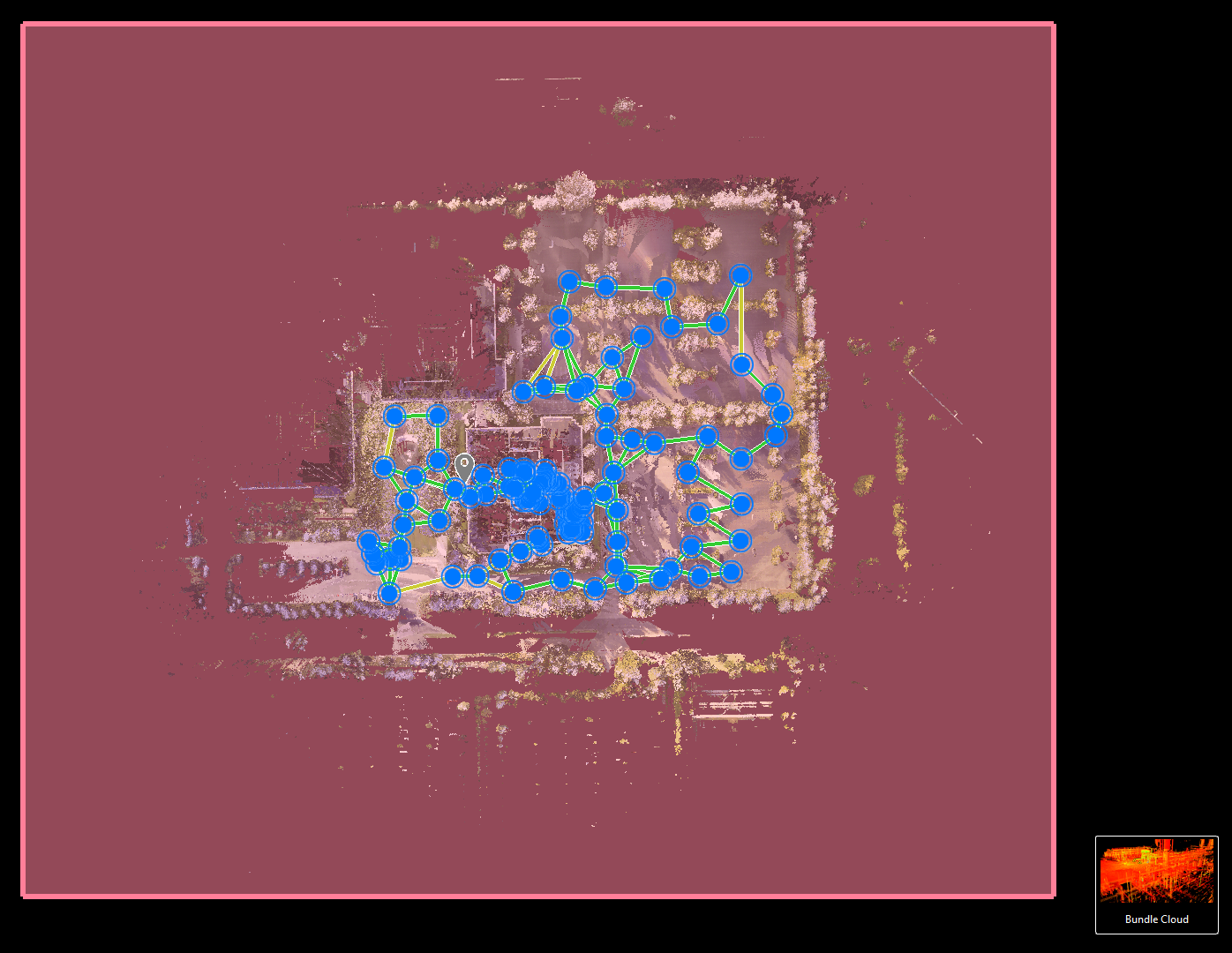

By clicking Create Limit Box, a temporary clipping box is placed and shown that it is vertically aligned to the Z axis and fits the Setup/Bundle extents.

  • If there is an active UCS, then the Limit Box is aligned to the UCS.

  • The current box can be set shown/hidden from the command in the Limit Box tools.
