TV Rotate
This tool can be used to rotate the model in any direction.
Select the Rotate button.
Hotkey H will also initiate the tool.

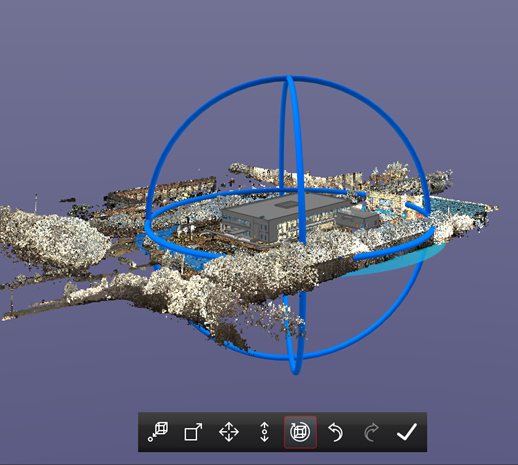

Rings will appear around the three axes of the model.
![](../../__attachments/44277732344/image121.png?inst-v=f9e056c9-f985-428d-a0ce-85f560ea1d91)
Select the model in any location to perform a free form rotation.
![](../../__attachments/44277732344/image122.png?inst-v=f9e056c9-f985-428d-a0ce-85f560ea1d91)

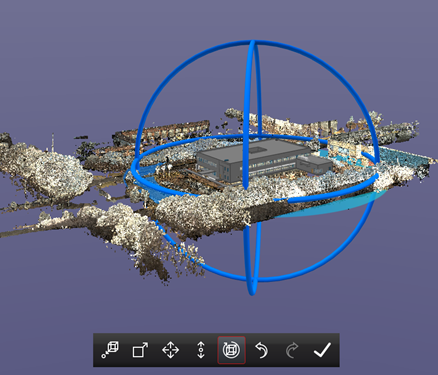

Model prior to free rotation.
![](../../__attachments/44277732344/image123.png?inst-v=f9e056c9-f985-428d-a0ce-85f560ea1d91)

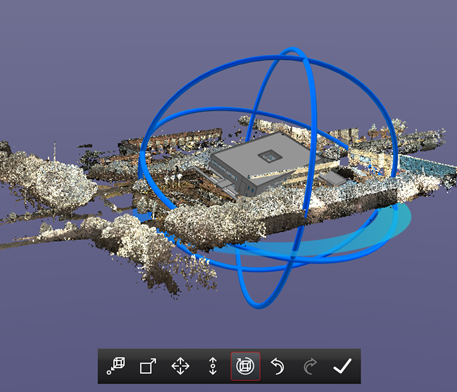

Model has been rotated freely in space.
While in free form rotation mode, hold the SHIFT key to lock the rotation direction to a single axis. The rotation axis will be locked to the last direction in which it was rotated. OR select one of rings to rotate the model along the chosen axis.
![](../../__attachments/44277732344/image124.png?inst-v=f9e056c9-f985-428d-a0ce-85f560ea1d91)

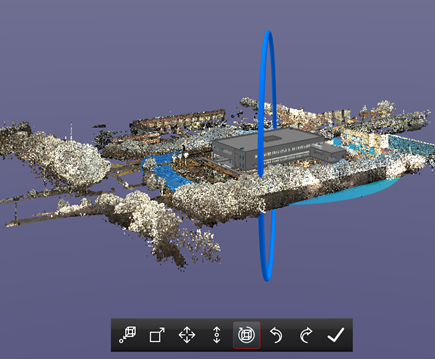

Model prior to rotation on the Z axis. Z axis selected.
![](../../__attachments/44277732344/image125.png?inst-v=f9e056c9-f985-428d-a0ce-85f560ea1d91)

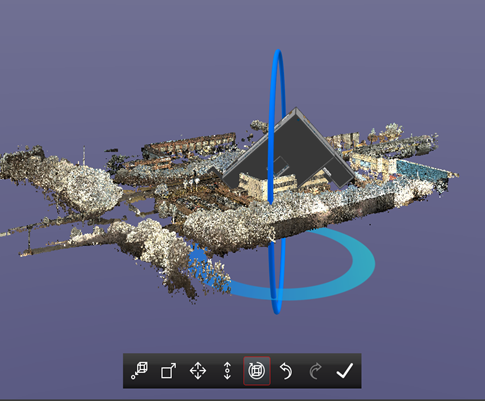

Model has been rotated along the Z axis only.
