TV Scale Model
This tool can be used to adjust the size of the model.
Select the Scale tool.
Hotkey D will also initiate the tool.
Move the mouse from the center of the model outward to make it bigger.
![](../../__attachments/44277994706/image110.png?inst-v=9d433f2d-068b-4381-9df7-98e36399b7dc)

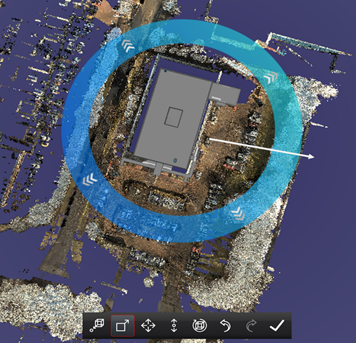

Direction of cursor movement shown
![](../../__attachments/44277994706/image111.png?inst-v=9d433f2d-068b-4381-9df7-98e36399b7dc)

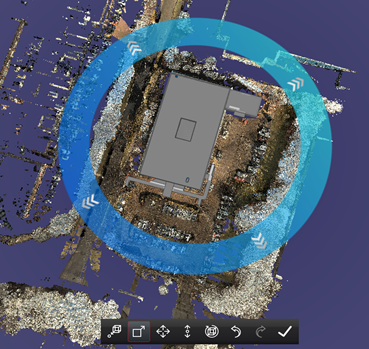

Model has been enlarged. Aspect ratio is maintained.
![](../../__attachments/44277994706/image112.png?inst-v=9d433f2d-068b-4381-9df7-98e36399b7dc)

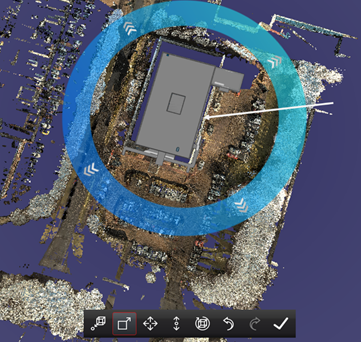

Direction of cursor movement shown.
![](../../__attachments/44277994706/image113.png?inst-v=9d433f2d-068b-4381-9df7-98e36399b7dc)

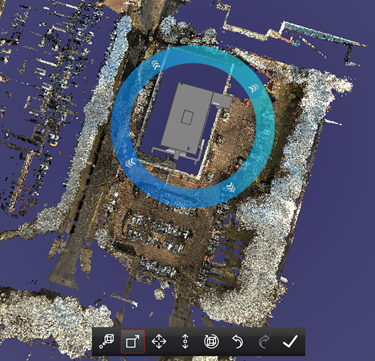

Model has been reduced. Aspect ratio is maintained.
The aspect ratio of the model will always remain the same. No distortion will occur.
