Create GeoTag

In addition to viewing and editing GeoTags created upstream, users can create new GeoTags in TruView. GeoTags created within TruView must be saved to the LGSx file.

To create a GeoTag:

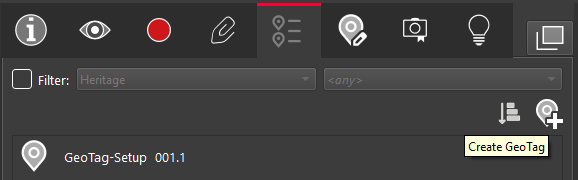

• GeoTags can be created by clicking on the Create GeoTag button on the right hand corner of GeoTag panel.

• Select the location in the point cloud where you would like to place the GeoTag.

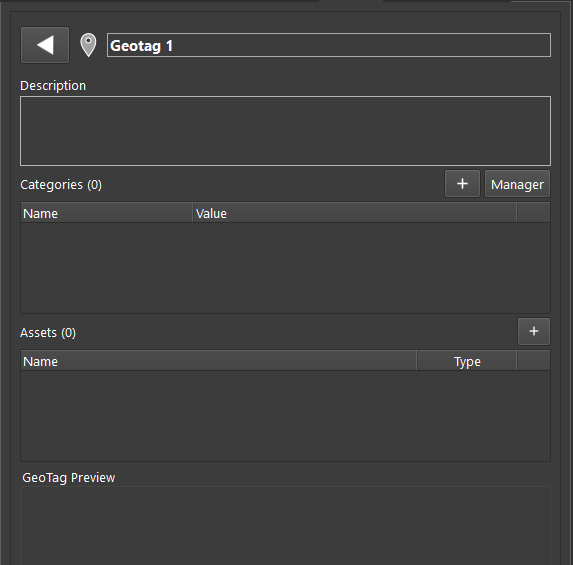

• Enter a GeoTag name. This is the only field required to create a GeoTag.

Categories can now be multiple and each one can be a list or a free text (select “+”).

The category Manager manages a category database valid for all Geotags within the project.

• Category values are a list of text fields with a matching color

• Assets can be multiple. One asset image can be chosen to define the Geotag preview (visible when hovering the Geotag in the scene or when entering edit Geotag)

• Click OK to create the GeoTag.

The new GeoTags are not yet compatible with Cyclone ENTERPRISE.
