TV GeoTags Panel
A GeoTag is a defined location in Cartesian coordinate space that has asset(s) associated with it. GeoTags created in a Cyclone REGISTER product or in Cyclone FIELD 360 can be viewed downstream in TruView.
GeoTags can be useful for identifying objects of interest in a registration. Assets such as websites, pictures and other file types can be attached to provide more information about the object.
GeoTag Categories
GeoTags can also be categorized prior to publishing or when creating them in TruView. Within TruView, GeoTags can be filtered by their category and category value for quick identification. The categories can be viewed in TruView in the GeoTags Panel.

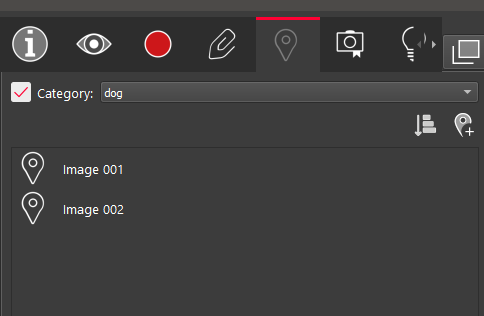

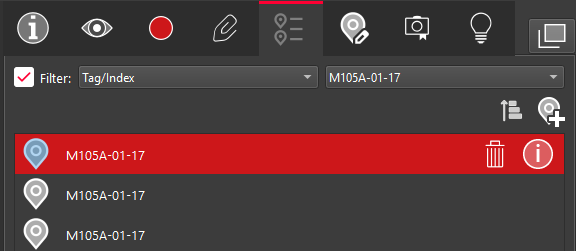

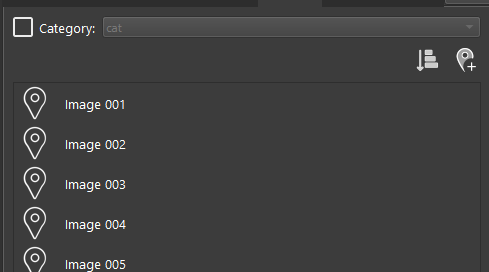

This panel will list all of the GeoTags that were published with the project. Select the check box next to Category to enable the category filter. The drop down will contain a list of categories and category values if they exist. Selecting a category and/or a sub category (category value) will only display the GeoTags associated with that filtering.
Sort GeoTags

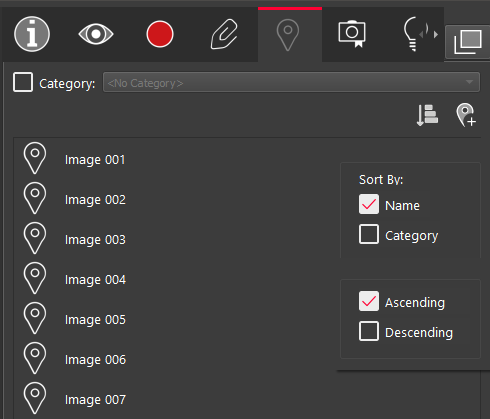

GeoTags can be sorted by clicking on the Sort GeoTags button. Geotags can be sorted by Name. They can be ordered in Decending or Ascending order.
Edit/Create GeoTags
GeoTags can be created or edited by clicking on the respective icons.
Open an existing GeoTag
Create a new GeoTag (click on the scene)
Editing a selected GeoTag and creating a new GeoTag are also available on the panel on the right-hand side of the application.
