CW TruSpace Measurement Annotation Style

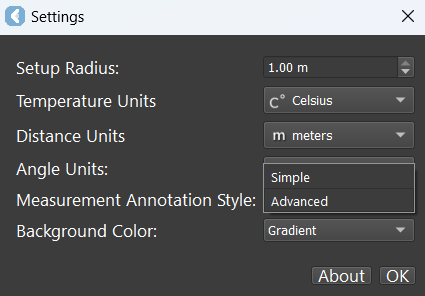

The Measurement Annotation Style setting allows users to change the style of measurement annotations. There are two annotation styles: Simple and Advanced.

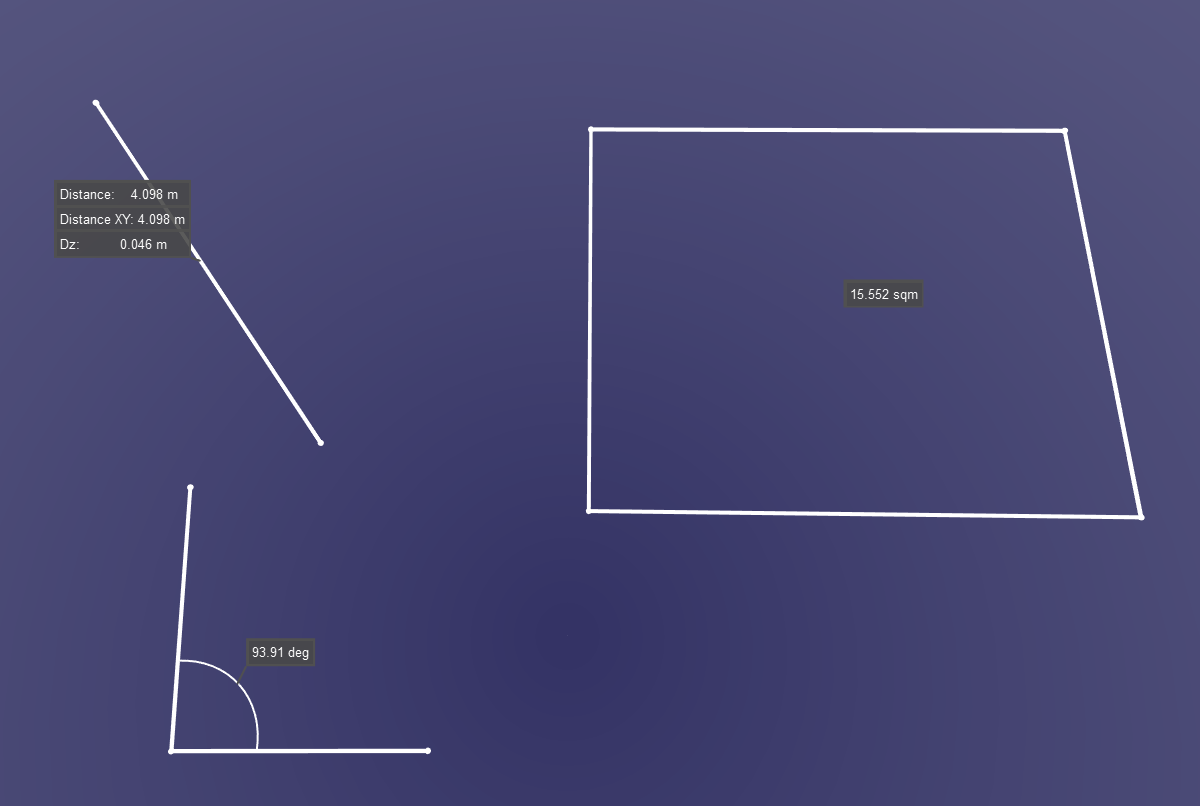

Simple

 Simple measurements will only show a single label based on the measurement type.

  • Measure distance: The Distance, Distance XY, and Dz labels will be displayed.

  • Measure Angle: Angle measurement will be displayed.

  • Measure Area: Area measurement will be displayed.

  • Measure Temperature: Temperature measurement will be displayed.

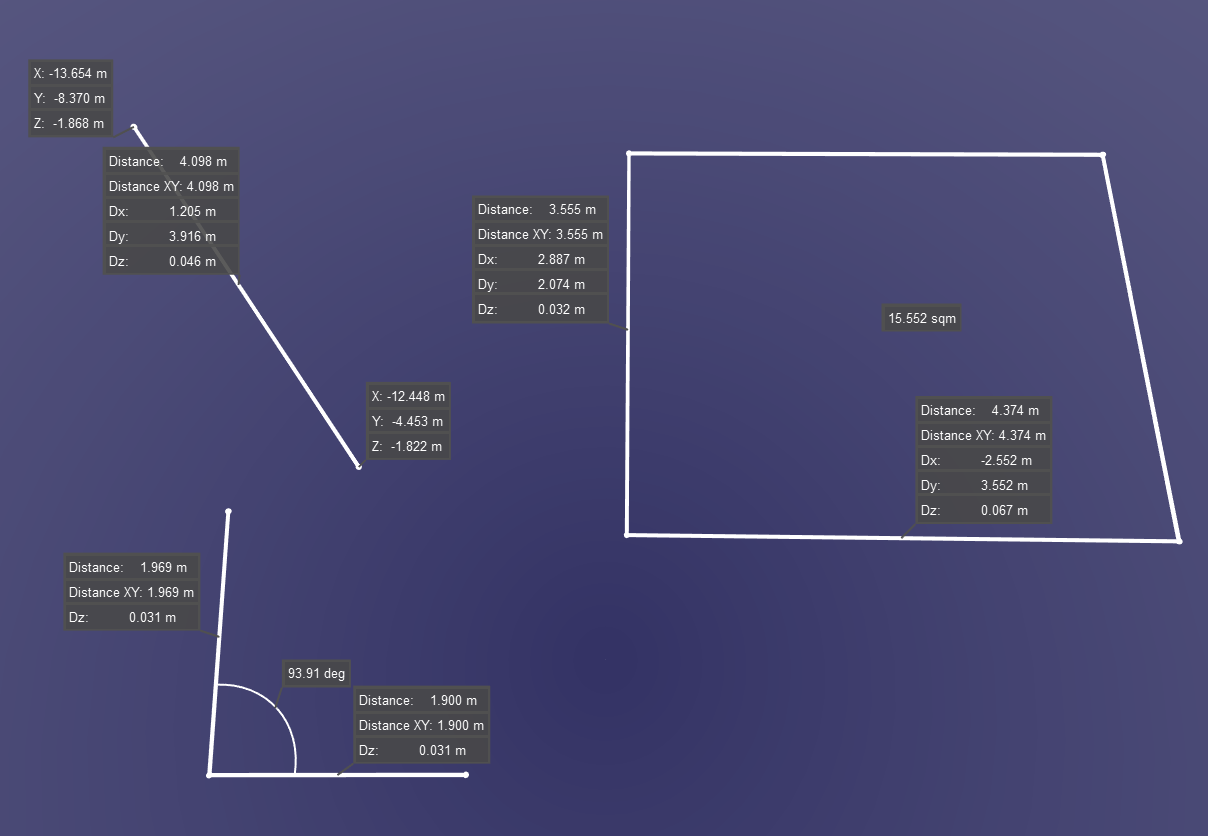

Advanced

Advanced measurements will show labels, including start and end points, as well as distance along the axis for area and angle measurements.

  • Measure distance: The Distance, Distance XY, and Dz labels will be displayed and  XYZ for the start and endpoint node will be displayed.

  • Measure Angle: Angle measurement, Distance, Distance XY, and Dz for each axis will be displayed.

  • Measure Area: Area measurement, Distance, Distance XY, and Dz for each axis will be displayed.

  • Measure Temperature: Temperature measurement will be displayed.
