The point cloud classification can improve the accuracy of cloud-to-cloud registrations (Cyclone REGISTER 360+ 2023.1.0 or newer). This feature allows users to refine the registration process by adjusting point constraints to focus on specific classes. The “Update Cloud-to-Cloud Points” option is available in the Classification Viewer, and a progress bar provides real-time feedback during the update process. This feature applies to all Setups within the SiteMaps, ensuring consistency across projects.
to conduct classification-aided Cloud-to-Cloud registration:
-
Select the desired Setups/Bundle/SiteMap in the “Review & Optimize” module and open the Classification Viewer.
-
If no Classifications are listed, click “Classification Manager” and choose your items.
-
Toggle the visibility of Classifications in the Classification Viewer Dialog and use the “Update Cloud-to-Cloud Points” feature.
-

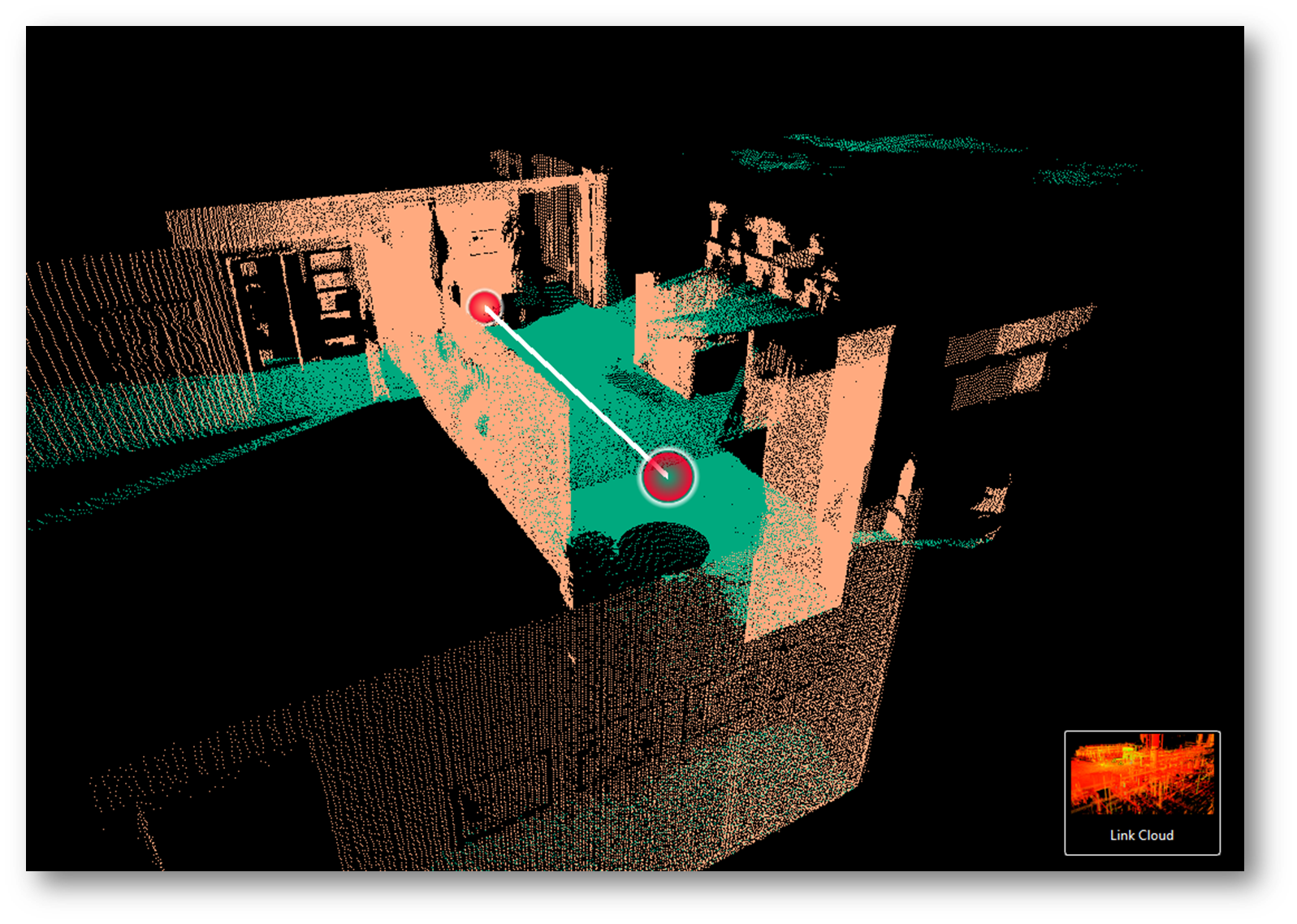

Switch from Point Cloud View to Visual Alignment View to see the updated data.
-
Continue toggling Classification visibility and updating cloud-to-cloud points until you achieve your desired data.
-
The cloud-to-cloud registration will now focus on your chosen classes.
This enhancement simplifies the process of refining cloud-to-cloud registrations and helps achieve more accurate results.
