Using the CloudWorx module to inspect a bridge

Introduction

The CloudWorx module allows the user to open and use extremely large data sets in the form of Leica Cyclone databases, and LGSx files. The ability to open such large files without the exporting and importing steps saves time and increases productivity.

The same general workflow described in this exercise could be used with any Leica Cyclone database you can Connect To.

Exercise overview

In this exercise, we will learn to use the tools in the CloudWorx module by opening an LGSx file and evaluate an area of a bridge to see how it has changed over time.

The steps are as follows:

learn to open and interact with Leica Cyclone data,
use the tools in the CloudWorx module to create a local coordinate system and isolate the area in which we are interested,
compare an area of the bridge structure to a model and create reports.

The files used in this exercise are: BridgeData.lgsx, and BridgeYear1-Deformed.stl.

Explore the CloudWorx module

Launch Import LGSx.
Choose BridgeData.lgsx in your browser.
Select "Import LGSx" in the Import Mode group.
Press Import to open it.

Notice that the treeview now contains a CloudWorx group.

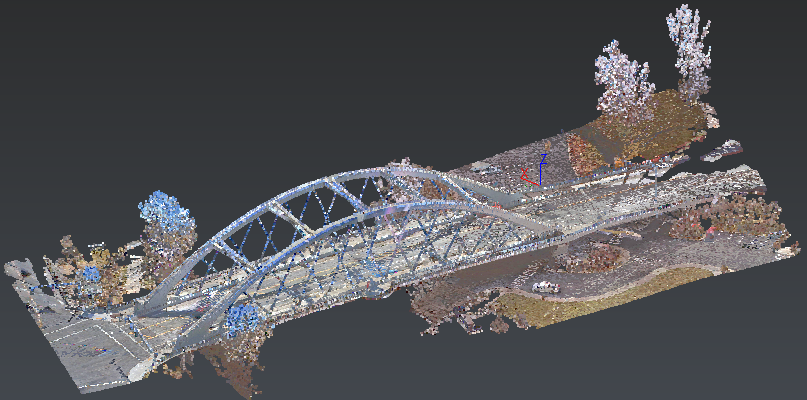

The CloudWorx group contains the Cyclone point cloud. This cloud is handled by the CloudWorx module and allows you to open and interact with huge datasets that would normally not be possible to open and use in any modeling software package. Later on we will isolate the part of this cloud that we want to work with and convert it into a point cloud that we can use. Notice the colored circle next to the BridgeData.lgsx object. If you press this you will be able to change the representation of the cloud from Real Color to Flat or Intensity.

Isolate the area of interest and convert it to a standard cloud

Create a Limit Box

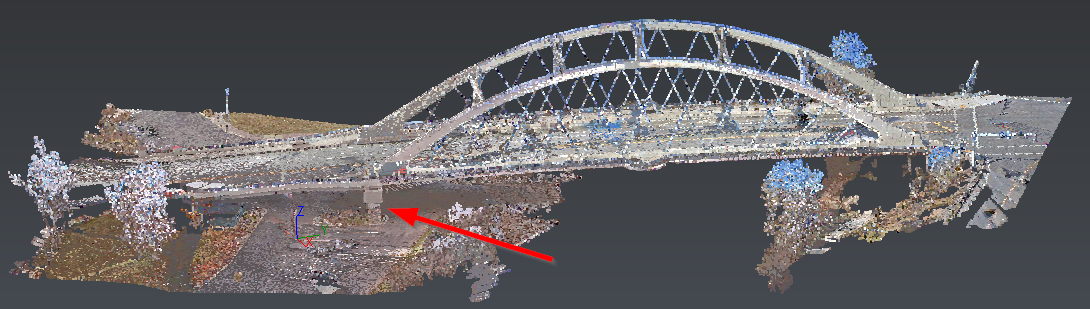

Orient the view so that you have a good view of the area to be isolated. Optionally, you can create a UCS with 2 points (2 Points) so as to create directly a well-oriented box.
In the CloudWorx menu launch Create Limit Box.
You will click three points to define the box; the first two are the two corners of the box in the Z plane, and the third point defines the height of the box.

Don't worry about the shape of the box for now. In the next step we will go through how to change the limits of the box after it is defined.

Adjust the limit box as needed

In the Clipping Group, there should be a new item called Limit box
Click on the lightbulb icon next to Limit box to show it.
Select the limit box and launch Edit Limit Box

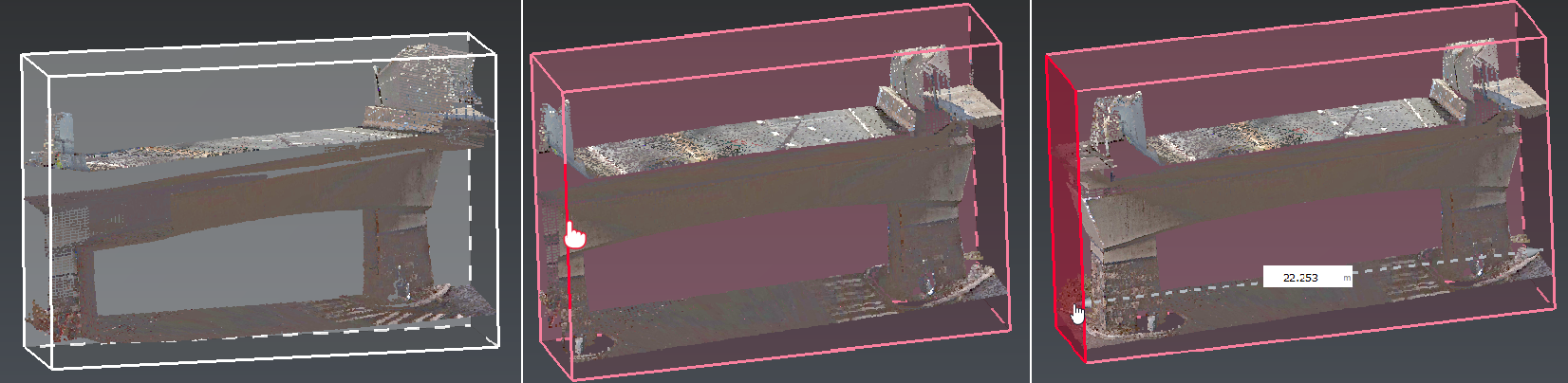

Rotate the box by clicking on edges to make the box parallel to the pier. Adjust the size of the box by clicking on the faces of the box so that only the pier and the area around it are shown, as in the pictures below.
When you have the limit box in the correct size you can press CTRL + Spacebar to exit the Edit Limit Box Mode.
You can Hide the limit box using the lightbulb icon next to the limit box item in the tree.

At this point we have the area that we are interested in isolated using the Limit Box. The next step is to convert the data that we have into a standard cloud so that we can use it to inspect the bridge support for wear.

Convert the CloudWorx cloud to a standard cloud

Launch Convert Project.
Enter a value of 10 million for the Maximum number of points value. The images won't be used later.

In this case it is really not necessary to limit the number of points in the converted cloud as the selection is relatively small, but in the case of a larger selection it may be required that you limit the size of the file to a reasonable level so that your PC does not run out of resources.

Close the CloudWorx connection

At this point we no longer need the CloudWorx cloud as we have taken the parts that we need and converted them to standard cloud.

If you want to save the current work as a CloudWorx project, now is be a good time to do it (Save). The cwproj file is fully compatible with other CloudWorx plugins in order to share clipping objects, UCS...

On the CloudWorx menu, press Close.
Answer Yes to the 'Do you want to remove the existing CloudWorx Cloud?' message.

Import the model of the bridge support

Launch Import and click on Add files.
Browse to the location where you have stored the sample files for this exercise and open BridgeYear1-Deformed.stl file.
Click on Import.

Compare the model that was created one year ago to the scan of the present day support

In the tree view expand the CloudWorx and Mesh groups
Select the mesh BridgeYear1-Deformed first
Select the cloud named BridgeData
The order of selection is important when doing Compare/Inspect operations. The first item selected is treated as the nominal, or 'object to compare to'. The second object selected is compared to the first.
Launch Cloud vs Mesh.
1. In Apply colors on, choose to apply on Reference (BridgeYear1Deformed).
2. Uncheck Force projection direction as we will want to compare the cloud using the mesh normal to calculate deviation.
3. Check Max distance and set to 0.25 m.
4. Check Keep only relevant points.
5. Press Preview.
6. When the computation is done, press the Edit Color button to edit the colormap and show the areas of deviation that we are interested in.

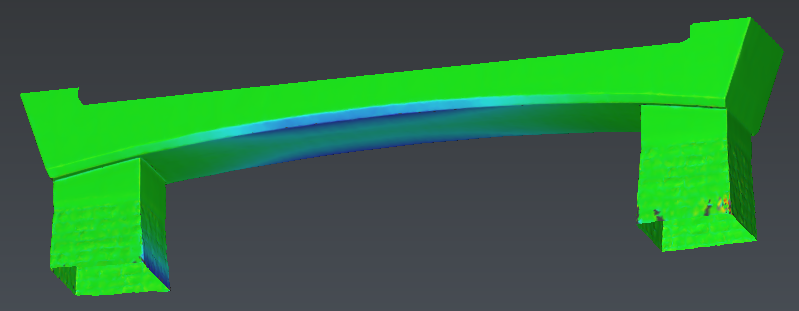

7. Adjust the upper an lower limits to +0.05 m and -0.05 m. The finished inspection should look as you see below.
8. Press OK on both dialogs to exit

Create cross sections

Activate the WCS.
Select the inspected mesh in Compare Inspect folder.

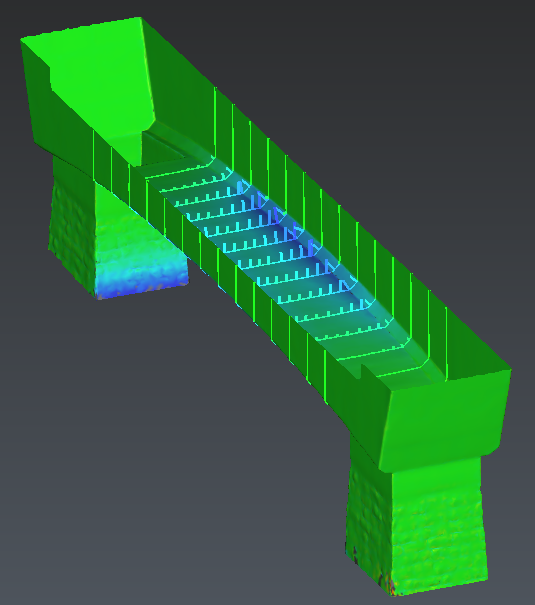

Launch Planar Section.
Define Axis direction: x = -0.95 y = 0.32 z = -0.01
Choose Regular with parameters below:
1. Step: 1m
2. Range: Custom
3. From: 3.7 m
4. To: 17 m
Check Create inspected section. Increase the magnifying. For instance, choose a 10 factor.
Choose to create only the sections, then Click on OK, Exit.

These sections can be sent to AutoCAD (or BricsCAD):

Open AutoCAD,
Select the sections,
Open the contextual menu,
Choose Send to and Autocad.

Then, using CloudWorx for Autocad, you can load the .cwprj.

Create some measures to show the deviation values

Launch Pick Analysis.

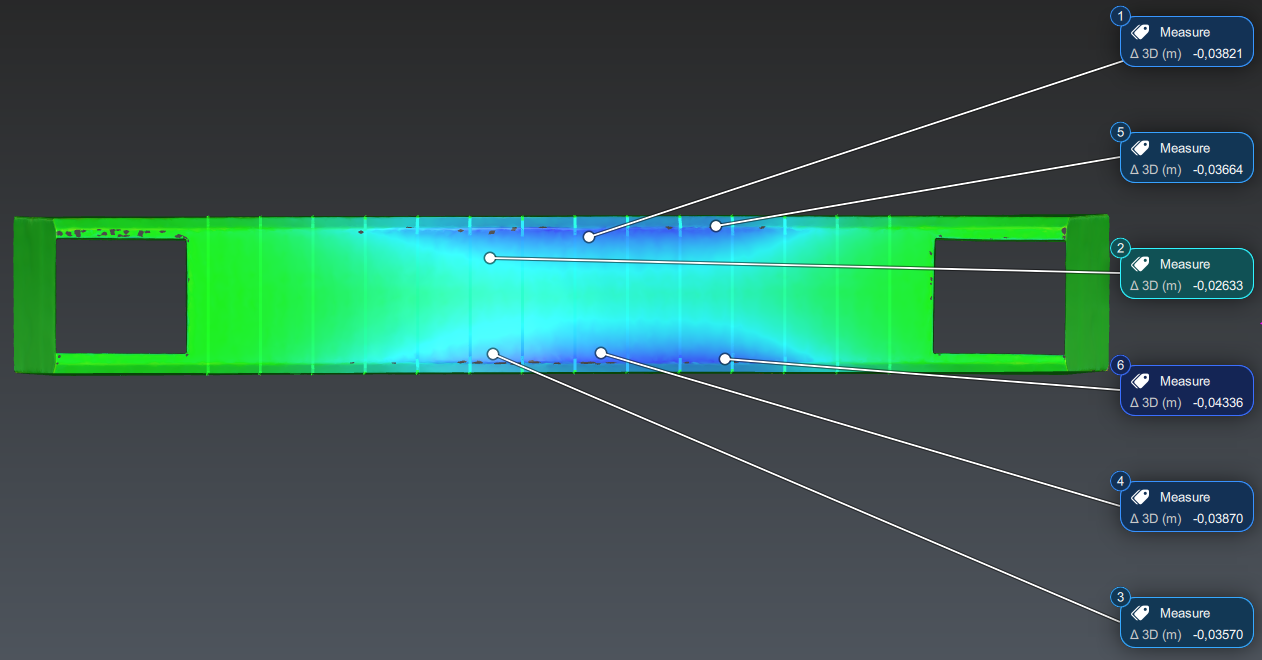

Click on the inspected mesh in the area where the wear is (blue) to create some measures
You can change measure info with Edit Measures:
1. In Values select the different deviation to see how the measures change.
2. Experiment with the other options in General to become familiar with what is possible.
3. In the Advanced options, click Reset to default and close the command.

Create viewsets to have some screen captures in our report

Orient the view so that you are looking down on the project by pressing Z on the keyboard to snap the view to looking down
Launch View Set.
Name this view Top.
Reorient the view to have a look at the bottom from the perspective of someone standing nearby
Create another viewset named Ground

You may want to change the transparency of the inspected bridge to make it easier to see your leader lines. Try to change the transparency by using transparency control next to the inspected mesh in the tree or by selecting the item in the 3D scene and right clicking and selecting Transparency

Create the report

In the ribbon menu, open Report menu.
Remove the chapter called Cover and select the Compare Inspect one. This chapter has been initialized thanks to a default template.
Select the scene and set it on 3D mode in order to insert a 3D PDF.
Select the table. Remove unnecessary columns and align to center the table.
Add two cells below, drag and drop Ground and Top viewsets.
Press To PDF and Open the report.

When opening up the report, it will probably be shown as a black screen with a warning saying that 3D content has been disabled. You will need to press the Options button and either select Trust this document this time only or Trust this document always

Handle a 3DPDF

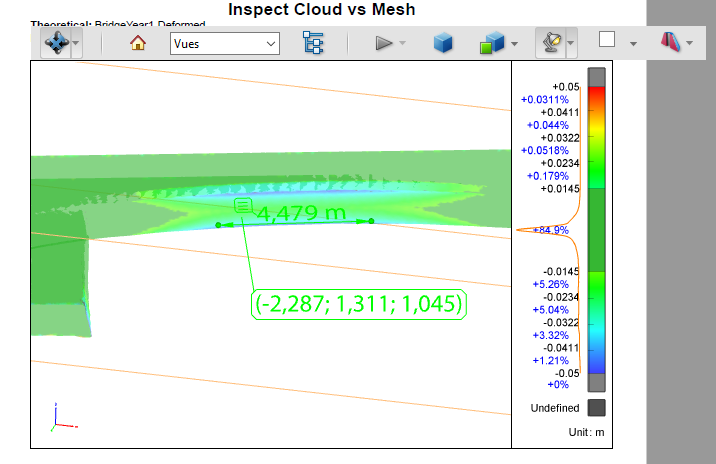

At the top of the 3D scene of the report press the Toggle Model Tree icon next to the Views box
1. Notice that the items from your project can be toggled on or off as you like
2. Close the model tree view
To the left of the Views box press the Rotate icon
1. Insert a comment
2. Take a measurement
Experiment with the Section Cut tools
