By Plane allows the creation of a UCS by assigning a plane to either the X or Y axis without assigning a coordinate like By Pick in the workflow above.
To set a UCS by plane, the user should follow the steps below:
-
Name the UCS.
-

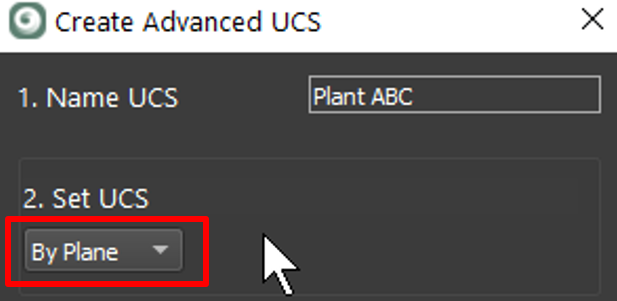

Select By Plane as the UCS creation method.
-
Optionally, fence area to constrain plane creation.
-
Use the fence tool to highlight an area for plane creation.
-
Select X or Y direction to be assigned to the plane.
-
Double-click the surface to region grow a plane.
-
-

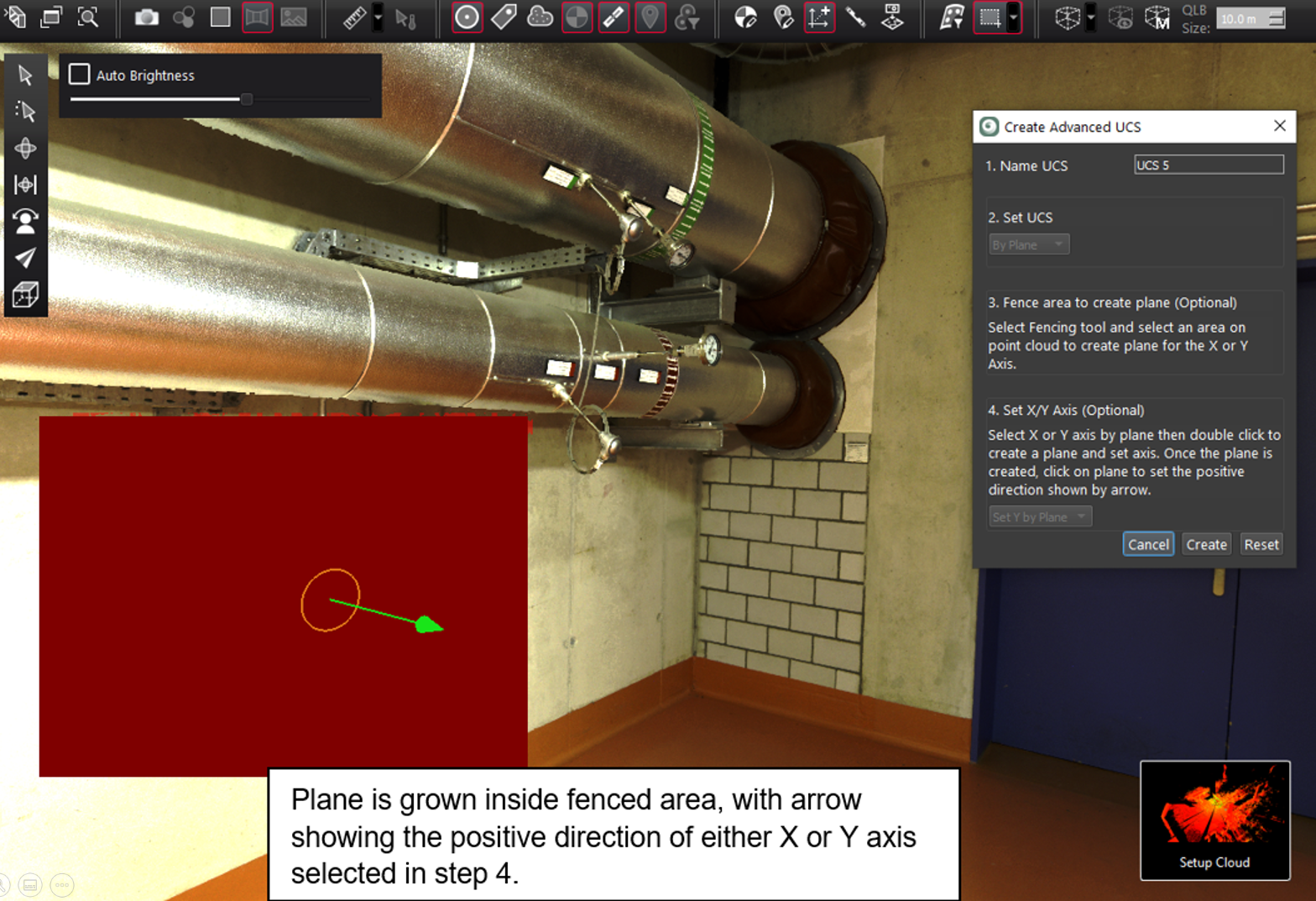

Сlick the plane again to set the positive X or Y direction as shown by an arrow.
-
Click Create to finish and create a UCS.
