Slice on Axis
AUTOCAD BASIC AUTOCAD PRO BENTLEY REVIT NAVISWORKS BRICSCAD BASIC BRICSCAD PRO ULTIMATE
Clipping | Clip Point Cloud | Slice
Command Line
AutoCAD / BricsCAD: CWSLICE | X, Y, or Z
MicroStation: CloudWorx Clip Slice
This command is used to define two parallel planes along a specified axis and then hide the points outside the two planes, resulting in a controlled cross-section view of the point cloud.
Using the Tool
To hide points outside of a slice, follow the steps below:
Activate the tool using any option below:

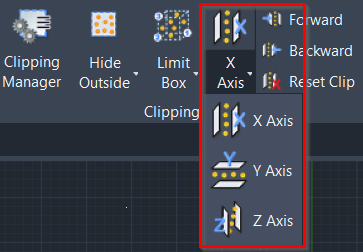

In the Clipping panel, click the Slice drop-down list and select the axis to which the workplane or view should be aligned.
In CloudWorx for Bentley, the Define Slice dialog appears, prompting you to select the axis in the Direction field and specify whether to align the slice to the workplane (Align to ACS) or to the current view (Align to View).
Type a command line prompt specific to the preferred CAD system and press ENTER.
As a result, a temporary line representing the clipping appears and follows the cursor.
Either click once on the Workplane or enter coordinates at the command line and press ENTER to define the first plane.
A temporary indicator marks the placement of the first cutting plane, and a temporary line for the second plane follows the cursor.
Click again to define the second plane.
The points outside the two planes are hidden.
To turn on or off any clipping record, use the CWCLIPMGR command.
Refer to the Slice Backward and Slice Forward pages to find out how to move the slice by one step along an axis.
