Line-Tools | QuickSlice

Command Line

  • AutoCAD: CWQSLICE

CloudWorx includes a set of tools designed to set up a slice, place the Workplane (also UCS) on the slice's mid-plane, and then align the view to the slice. These tools are intended to prepare for Polyline Tools.

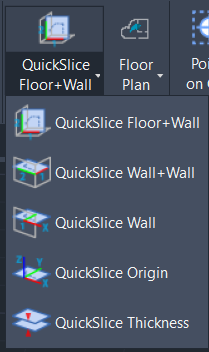

The QuickSlice tool includes the following options to create a slice:

  • Floor+Wall: It is used to define a vertical slice as a Workplane by picking both floor and wall points.

  • Wall+Wall: It is used to define a horizontal slice as a Workplane by picking two wall points.

  • Wall: It is used to define a horizontal slice as a Workplane by picking a wall point.

  • Origin: It is used to create a quick slice on the X and Y planes of the current UCS.

  • Thickness: It is used to change the slice thickness.
