Measurement Annotation Style

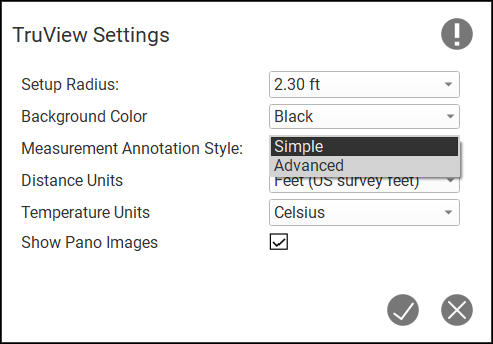

Change the measurement annotation style. The two annotation styles are Simple and Advanced.

Simple

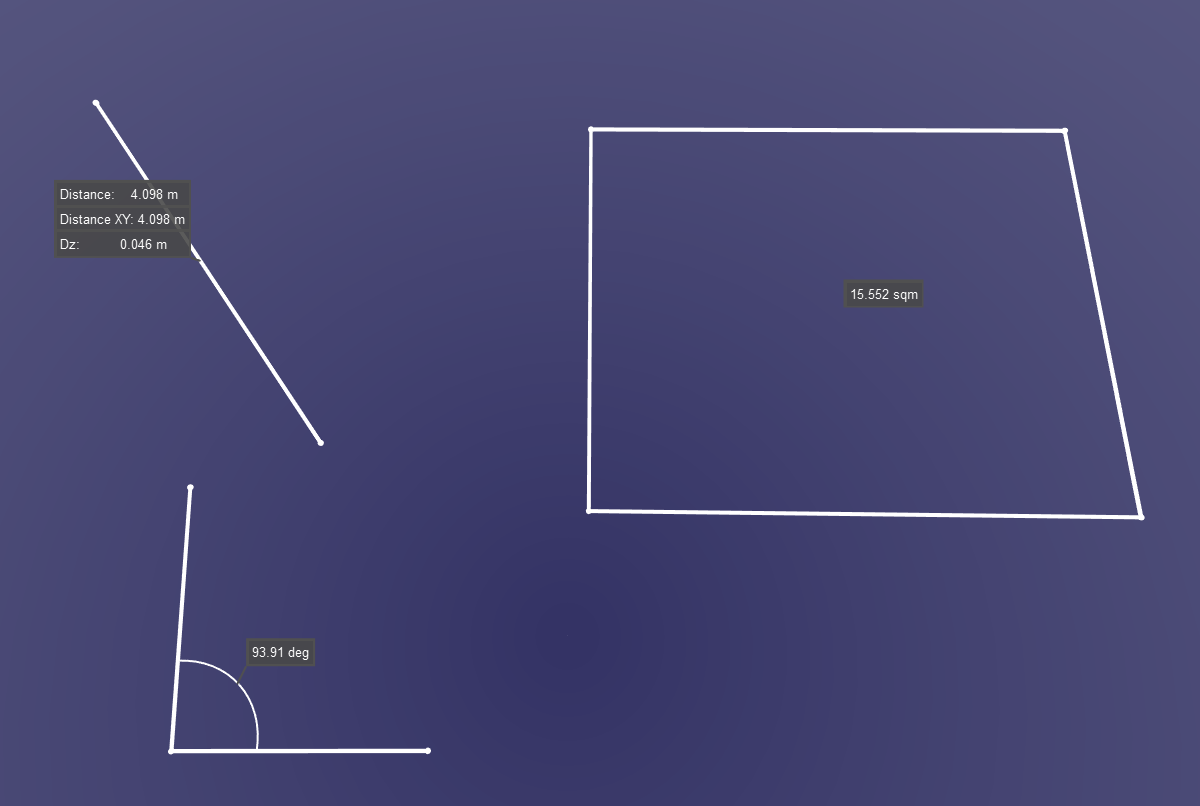

 Simple measurements will only show a single label based on the measurement type.

  • Measure distance: Distance, Distance XY and Dz label will be displayed.

  • Measure Angle: Angle measurement will be displayed.

  • Measure Area: Area measurement will be displayed.

  • Measure Temperature: Temperature measurement will be displayed.

Advanced

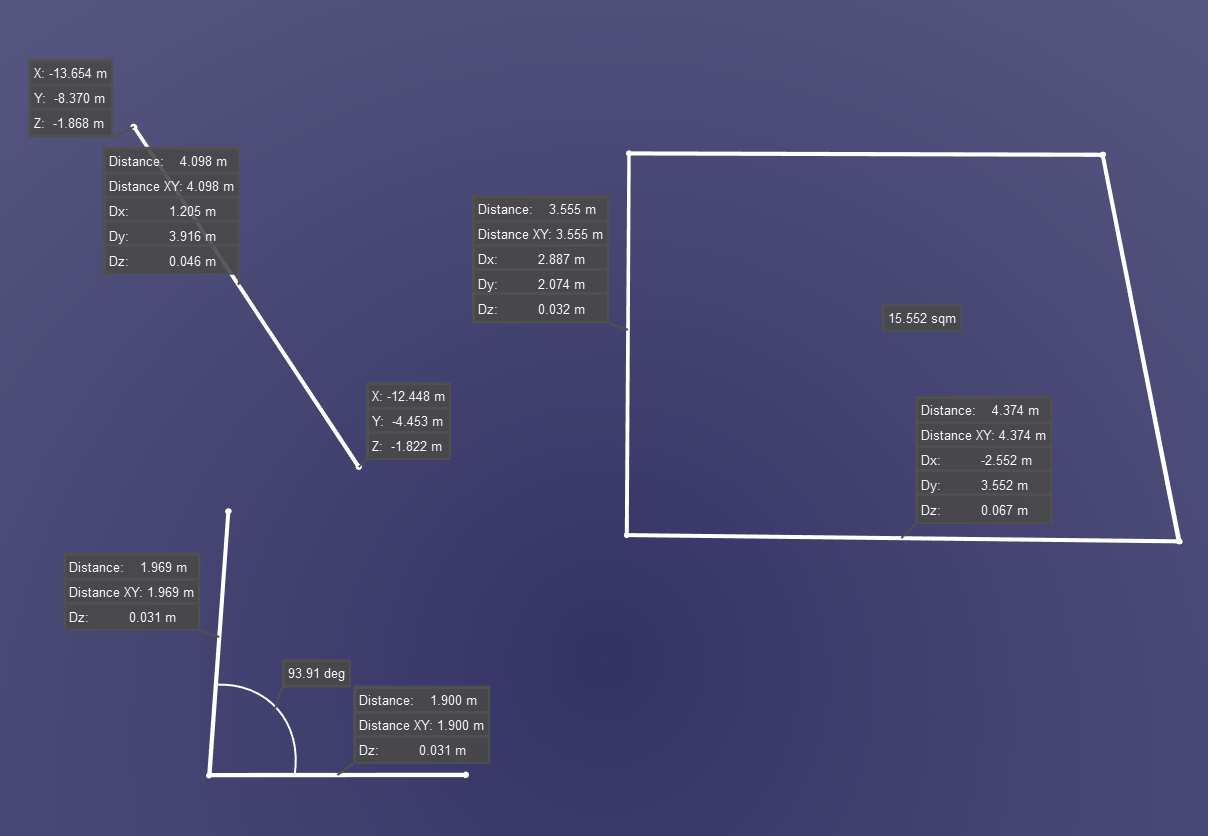

Advanced measurements will show labels including start and end points as well as distance along axis for area and angle measurements.

  • Measure distance: Distance, Distance XY and Dz label will display and  XYZ for the start and endpoint node will be displayed.

  • Measure Angle: Angle measurement, Distance, Distance XY and Dz for each axis will be displayed.

  • Measure Area: Area measurement, Distance, Distance XY and Dz for each axis will be displayed.

  • Measure Temperature: Temperature measurement will be displayed.
