Import Point Cloud

AUTOCAD PRO REVIT BRICSCAD PRO NAVISWORKS ULTIMATE

Project | Connect To… | Import Point Cloud

Command Line

  • AutoCAD / BricsCAD: CWIMPORTPTX

This command enables users to import point clouds in E57, LAS, or PTX formats and automatically convert them into LGSx.


Note: A CloudWorx Pro or Ultimate license key is required to use this feature.


Using the Tool

To import a point cloud in E57, LAS, or PTX, follow the steps below:

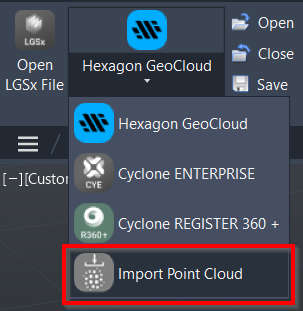

  1. Select Import Point Cloud from the Connect To menu in the Project panel or type a command line prompt specific to the preferred CAD system and press ENTER.

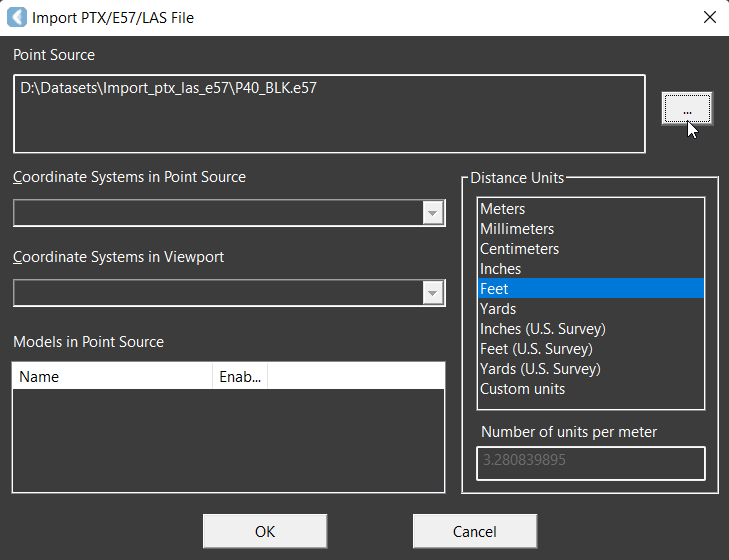

  2. In the Import PTX/E57/LAS File dialog that appears, browse to a local point cloud dataset, select it, and click OK.

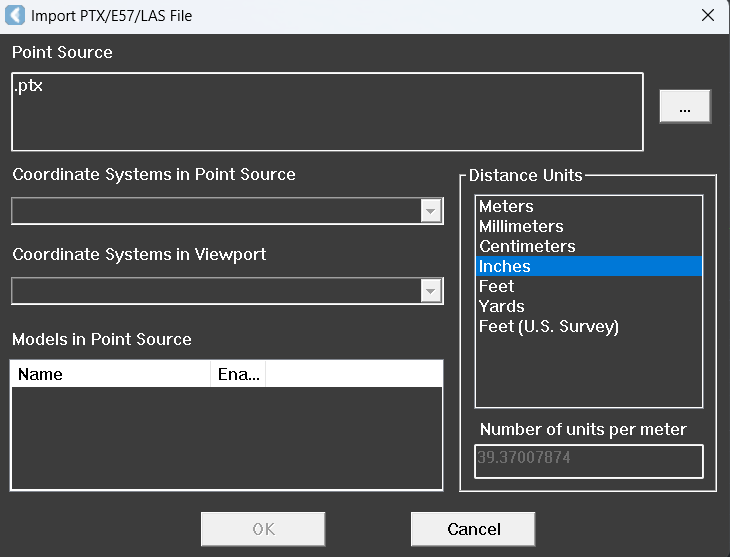

    1. While the conversion is in progress, the OK button will be disabled. This process might take some time, depending on the size of the original point cloud. A new file with the same name as the original file and an .lgsx extension will be created and stored in the same folder.

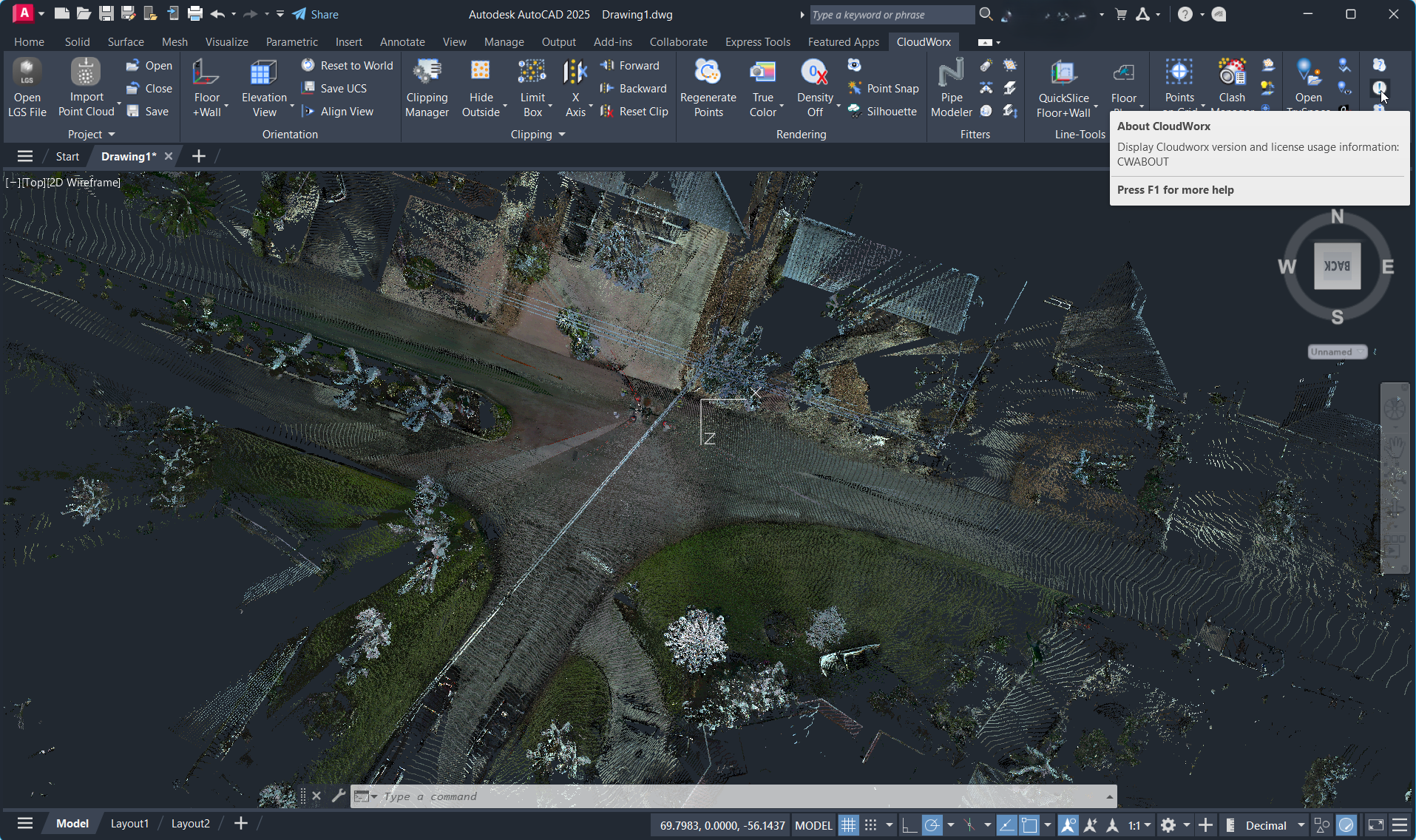

After rendering the converted point cloud in the active workspace, the available CloudWorx toolsets can be used to modify it as necessary.

image-20240828-224553 (1).png
