2022.1.0 Project Compatibility and Supported Model Formats

Project Compatibility

TruView 2021 and later supports models in LGS files and Cyclone ENTERPRISE only. Projects must be published from Cyclone 2020.1 or later, Cyclone REGISTER 360 (including BLK Edition) 2020.1 or later with PUBLISHER Pro license (or a Cyclone JetStream PUBLISHER or Cyclone TruView PUBLISHER license with active CCP).

Models cannot be added to JetStream Enterprise projects.

Reference the following table to determine if models are supported in your LGS file.

Published from

PUBLISHER License

Supports Models

Cyclone 2020.1

PUBLISHER Standard

No

Cyclone 2020.1

PUBLISHER Pro

 Yes

Cyclone 2020.1

JetStream PUBLISHER (with active CPP)

 Yes

Cyclone 2020.1

TruView PUBLISHER (with active CPP)

 Yes

Cyclone REGISTER 360 family 2020.1

PUBLISHER Standard

No

Cyclone REGISTER 360 family 2020.1

PUBLISHER Pro

 Yes

Cyclone REGISTER 360 family 2020.1

JetStream PUBLISHER (with active CPP)

 Yes

Cyclone REGISTER 360 family 2020.1

TruView PUBLISHER (with active CCP)

 Yes

Cyclone 2020 and older

Any license level

No

Cyclone REGISTER 360 family 2020 and older

Any license level

No

Supported Model Formats

TruView supports IFC, OBJ and COE model formats.

OBJ compatibility

All OBJ versions are compatible with TruView.

IFC compatibility

The following IFC versions are compatible with TruView:

  • IFC2X

  • IFC2X2

  • IFC2X3

  • IFC2X4

  • IFC4

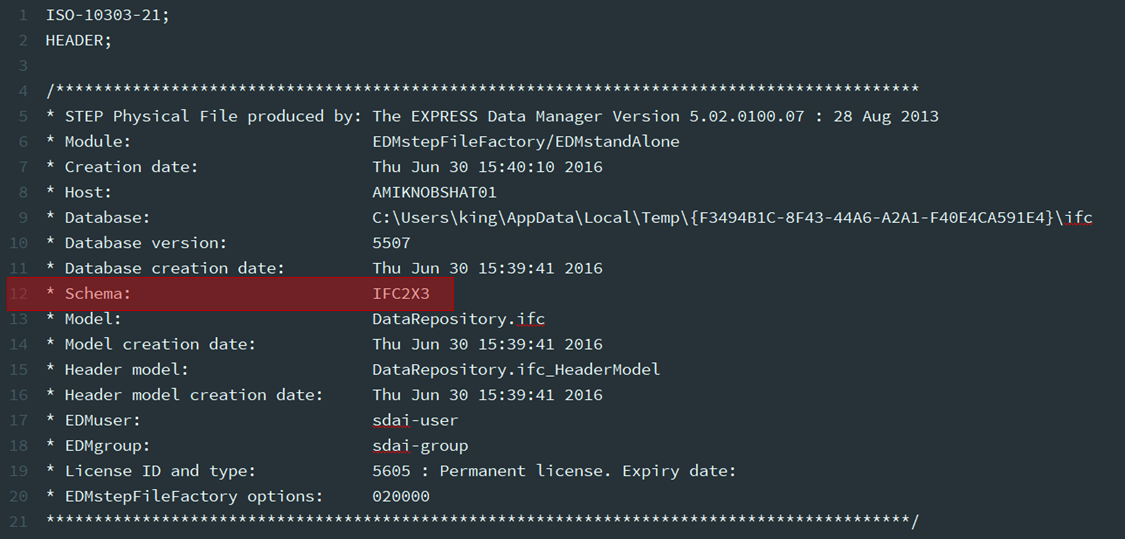

To check the version of IFC you have, open the IFC in a text editor and locate the Schema.

COE Compatibility

TruView support all COE formats and model components that are supported in Cyclone MODEL.
