Project Compatibility and Supported Model Formats

Project Compatibility

TruView 2021 and later supports models in LGS files and Cyclone ENTERPRISE only.

Models cannot be added to JetStream Enterprise projects.

Supported Model Formats

TruView supports IFC, OBJ and COE model formats.

OBJ compatibility

All OBJ versions are compatible with TruView.

IFC compatibility

The following IFC versions are compatible with TruView:

  • IFC2X

  • IFC2X2

  • IFC2X3

  • IFC2X4

  • IFC4

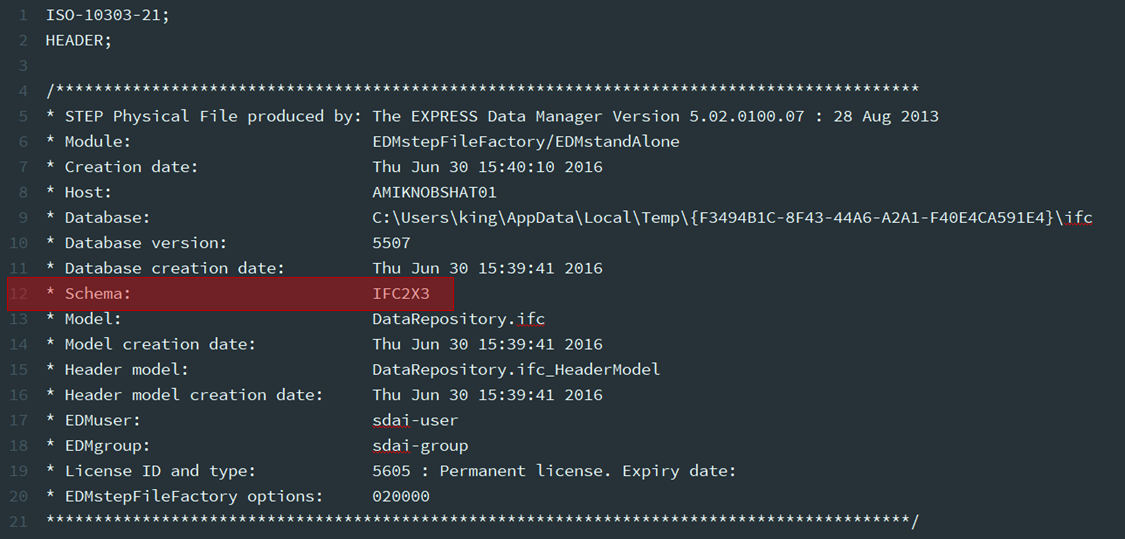

To check the version of IFC you have, open the IFC in a text editor and locate the Schema.

COE Compatibility

TruView support all COE formats and model components that are supported in Cyclone MODEL.
