Wall

AUTOCAD BASIC AUTOCAD PRO BRICSCAD BASIC BRICSCAD PRO ULTIMATE

Orientation | Workplane | Wall

Command Line

  • AutoCAD / BricsCAD: CWWORKPLANE | WALL

This command creates a UCS based on a single pick point. The X and Y axes of the UCS will be aligned to the patch on the wall, while the Z-axis will be perpendicular to the patch.


Using the Tool

Note: Before using the tool, ensure the Snap to Node setting is enabled by typing OSNAP at the CAD command line.

To orientate the UCS to a wall, follow the steps below:

  1. Activate the tool using any option below:

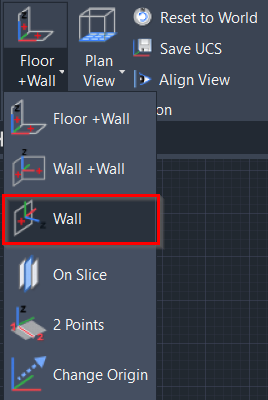

    1. Select Wall from the Workplane menu in the Orientation panel.

    2. Type a command line prompt specific to the preferred CAD system and press ENTER.

  2. When prompted to Pick wall point, select a point on the point cloud to define the wall.

The UCS will now be aligned to the wall that was defined.
