Floor + Wall

AUTOCAD BASIC AUTOCAD PRO BRICSCAD BASIC BRICSCAD PRO ULTIMATE

Orientation | Workplane | Floor + Wall

Command Line

  • AutoCAD / BricsCAD: CWWORKPLANE | FLOOR+WALL

This command creates a UCS based on a floor and a wall without changing the Z-axis. The Workplane is then set to the wall.

Using the Tool

Note: Before using the tool, ensure the Snap to Node setting is enabled by typing OSNAP at the CAD command line.

To create a UCS based on points selected on a floor and a wall, follow the steps below:

  1. Activate the tool using any option below:

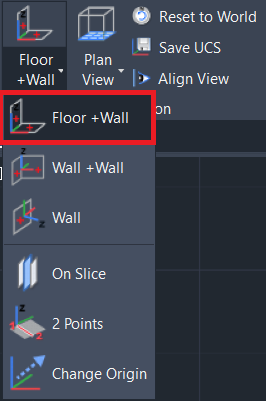

    1. Select Floor + Wall from the Workplane menu in the Orientation panel.

    2. Type a command line prompt specific to the preferred CAD system and press ENTER.

  2. When prompted to Pick floor point, select a point on the point cloud to define the floor.

  3. When prompted to Pick wall point, select a point on the point cloud to define the wall.

The UCS will now be aligned to the intersection of the floor and wall that were defined.
