List of CAD Objects:
Dimension | Name | Example | Type | Description |
|---|---|---|---|---|
0D | POINT |  | Point | (X,Y,Z) |
1D | CAD CURVE |  | Linear | a line (curved or straight) connecting 2 points Its geometry can be for instance: BSpline curve, circular arc, line segment, etc. |

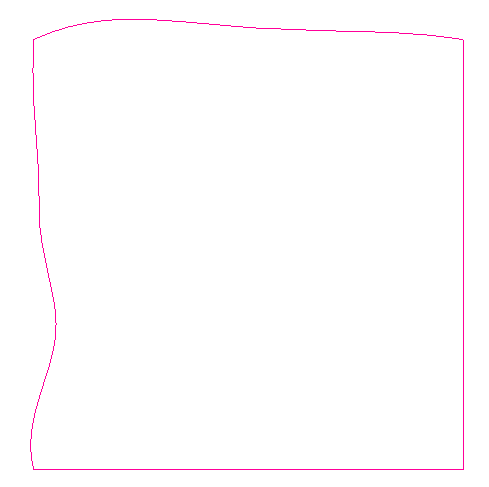

1D | CAD WIRE |  | Linear | made of one or several chained CAD CURVES It may be closed |

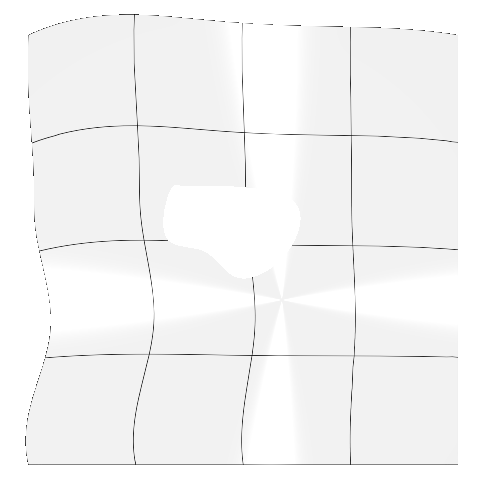

2D | CAD SURFACE |  | Surfacic | a face (planar or not) delimited by closed CAD WIRES Its geometry can be for instance: BSpline surface, conical surface, sphere, plane, etc. The face may have some internal holes Or a discretized surface Its geometry is a list of triangles. This object is not compatible with most of CAD object edition commands. |

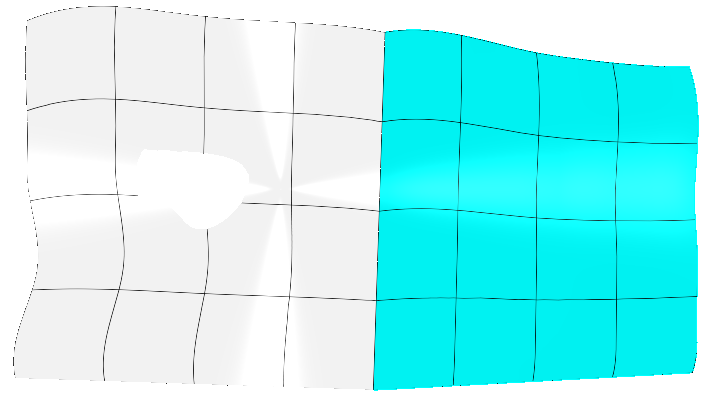

2D | SHELL |  | Surfacic | a set of CAD SURFACES sharing common CAD CURVES (contiguous and stitched) It may be closed |

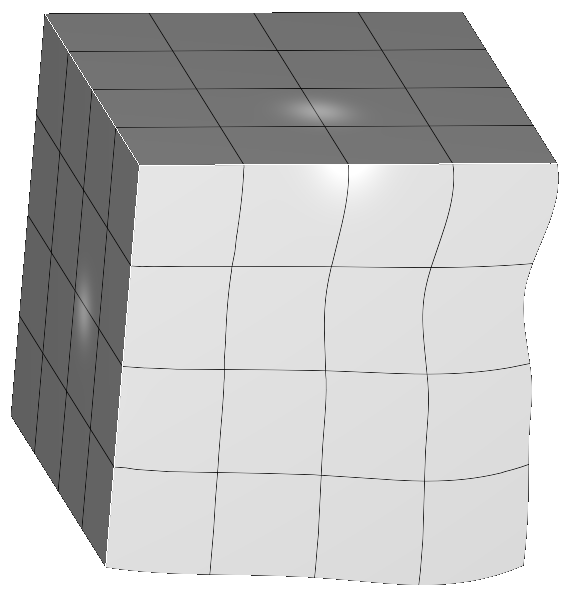

3D | SOLID |  | Surfacic | a watertight SHELL |
COMPOUND
a set of CAD Objects of any type may include other COMPOUND objects.
