Window

REVIT

Fitters | Window

Using the Tool

Note: Before using the tool, create a wall where the window will be fitted using the Wall fitter.

To fit a window, follow the steps below:

1. Click the Window icon in the Fitters panel.

   1. The Fit Window dialog will appear.

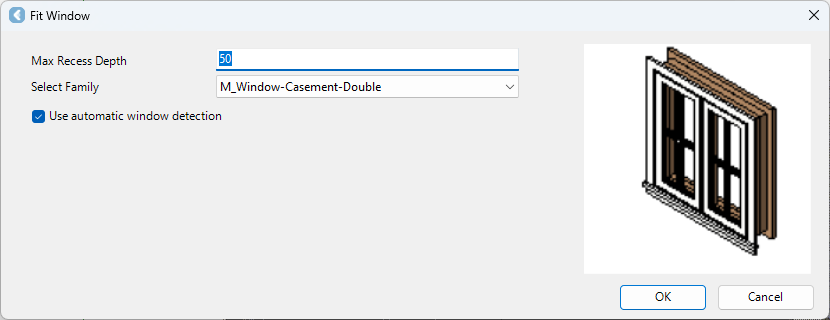

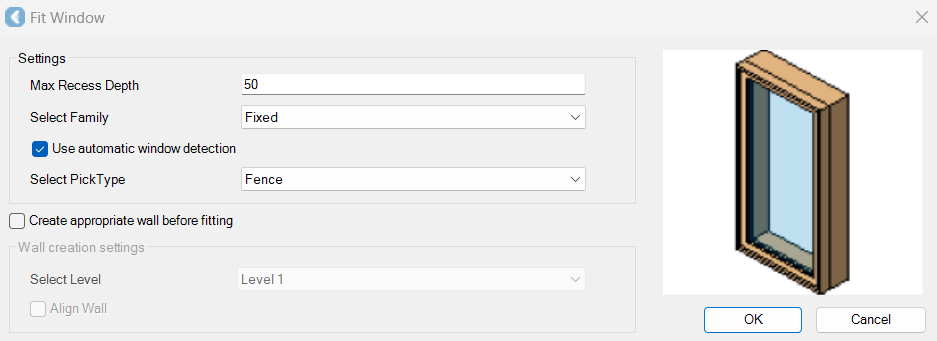

2. In the Fit Window dialog, modify the settings as follows:

   1. Specify the Maximum Recess Depth value.

   2. Select a family.

   3. Select the check box for automatic window detection if needed.

   4. Click OK.

3. Select a region of the point cloud where a window should be fitted.

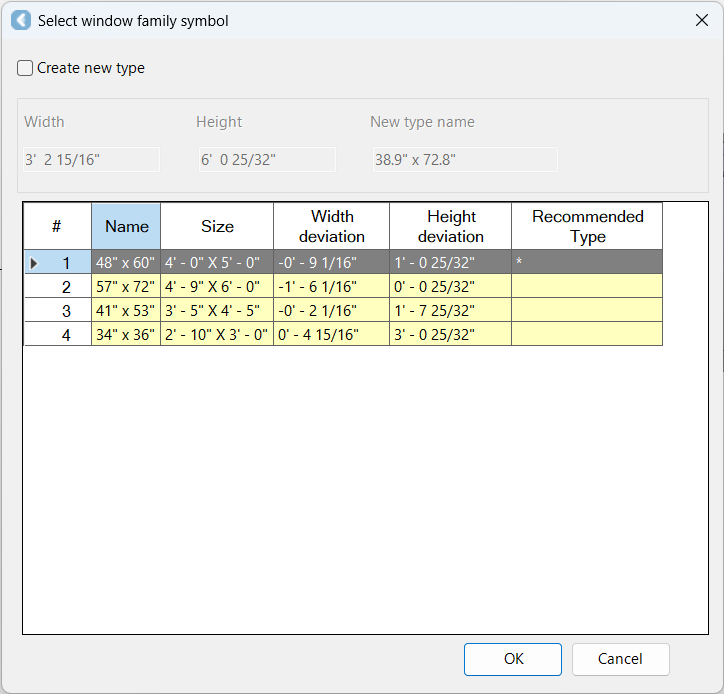

4. A new dialog will appear, suggesting a window type based on the best fit within the family.

   1. Accept the suggested type.

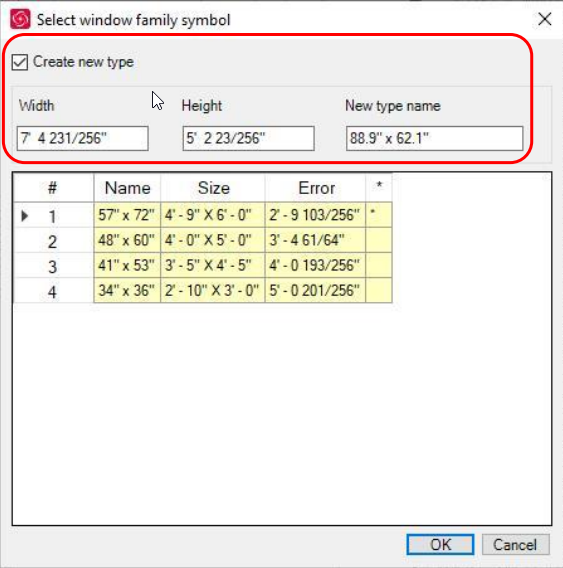

   2. Or, if the suggested type is not a close enough fit, create a new type by defining the name and adjusting the size of the new type, if needed. As a result, a new entry will be created in the family, and the new type will appear on the list for future window fitting.

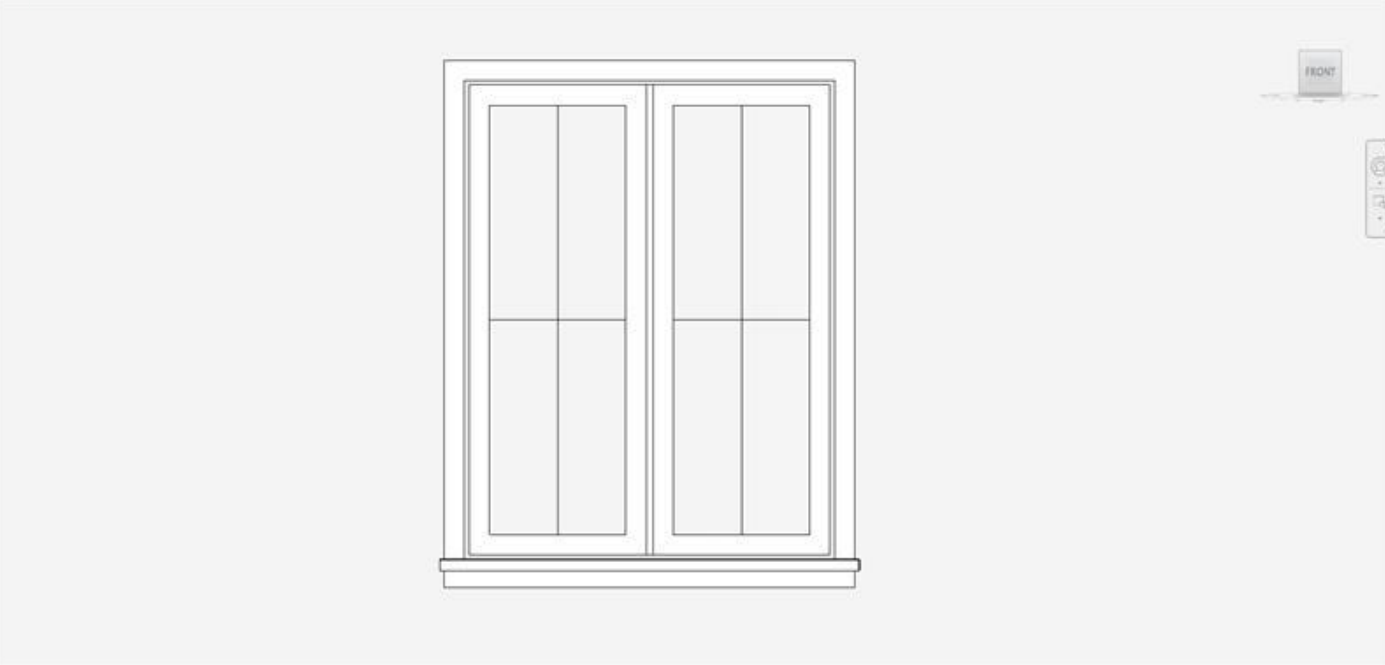

c. Click OK, and the window will be placed.
