Point Cloud Info

AUTOCAD BASIC AUTOCAD PRO REVIT ULTIMATE

Info | Point Cloud Info

Command Line

  • AutoCAD: CWINFO


This command displays coordinate information and other information for a selected point in a point cloud.

All the coordinates and distance parameters are based on the current user coordinate system and unit preference.

The user can use CAD's measurement and dimension tools to measure between cloud points.

Note: When Snap to Cloud Points is enabled, Object Snap On is turned on, and Node type is selected (OSNAP), all commands, including CAD commands that require a 3D point clicking, will perform picking on point clouds. When a cloud point is picked, the 3D position will be returned as the result of 3D point. However, the result may not be compatible with some 2D commands, such as POLYLINE.

Using the Tool

To get point information:

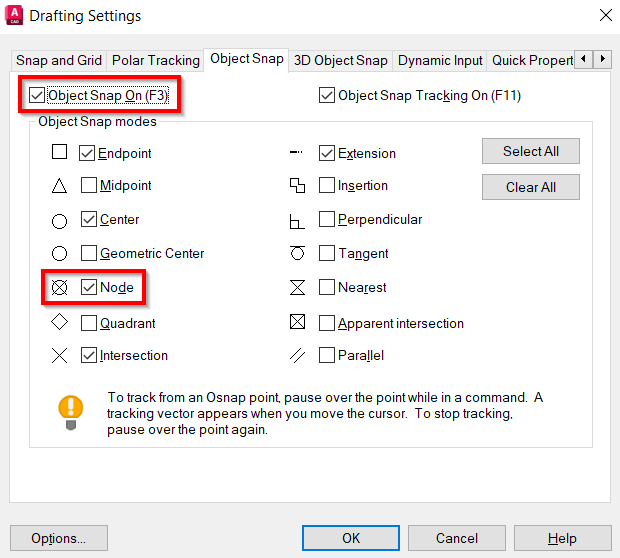

  1. Ensure the Object Snap is enabled and the Node type is selected, using the OSNAP command:

  2. Click Point Cloud Info in the Info panel or type a command line prompt specific to the preferred CAD system and press ENTER.

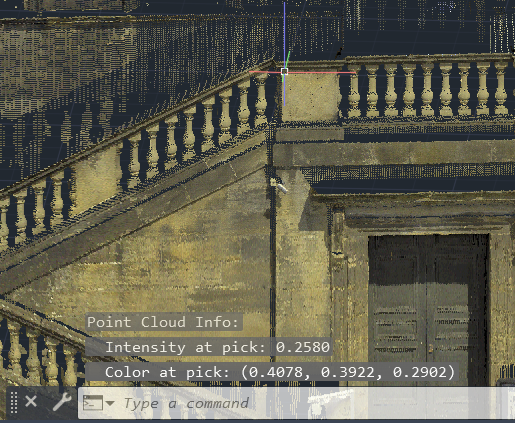

  3. When prompted, pick a point in a point cloud. The point coordinates, as well as other possible information, such as intensity and colour value (where applicable), are displayed.
