Fit Overlap

REVIT

Fitters | Fit Overlap

This tool allows fitting flat floors and roofs to quickly complete a model.


Using the Tool

To fit a floor or roof:

  1. Click the Fit Overlap icon in the Fitters panel.

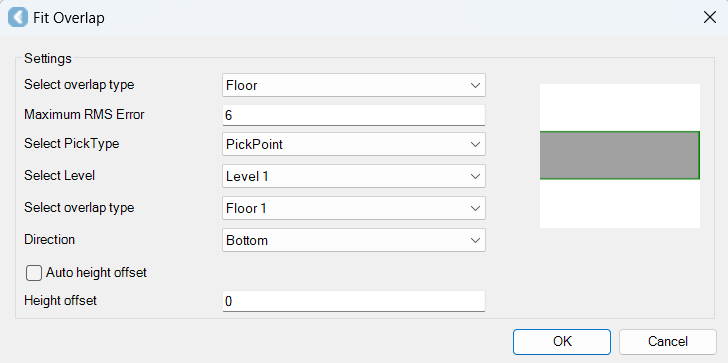

  2. In the Fit Overlap dialog that appears:

    1. Choose the type of overlap (floor or roof).

    2. Adjust other settings if needed.

    3. Click OK.


  1. Click on the floor or roof (depending on the choice in Step 2a) to fit your overlap.
