Command Line

  • AutoCAD / BricsCAD: CWINFO

Thiscommand displays coordinate information and other information for a selected point in a point cloud.


All the coordinates and distance parameters are based on the current user coordinate system and unit preference.

The user can use CAD's measurement and dimension tools to measure between cloud points.

Using the Tool

To get point information:

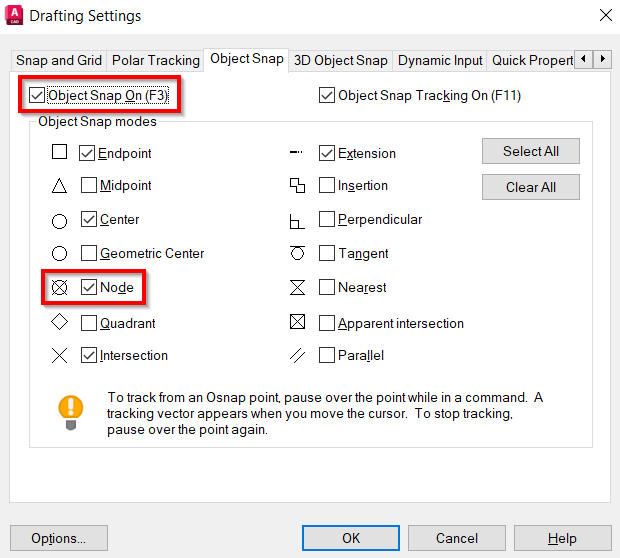

  1. Ensure object snapping is enabled. For details, see the Point Picking section of the Tools and Commands page.

  2. Click Point Cloud Info in the Info panel or type a command line prompt specific to the preferred CAD system and press ENTER.

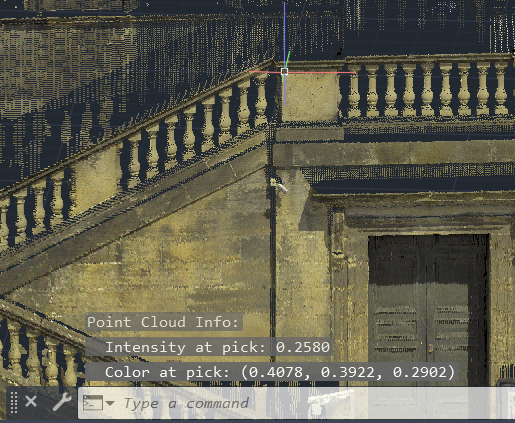

  3. When prompted, pick a point in a point cloud. The point coordinates, as well as other possible information, such as intensity and colour value (where applicable), are displayed. image-20240403-125958.png
