2 Points

Prev Next

AUTOCAD PRO bricscad pro ULTIMATE

Orientation | Workplane | 2 Points

Command Line

  • AutoCAD / BricsCAD: CWWORKPLANE | 2POINTS

This command sets the orientation of the X-axis of the UCS from two user-defined picks on the point cloud while keeping the Z-axis upright.



Using the Tool

To orientate the UCS from two selected points, follow the steps below:

  1. Activate the tool using any option below:

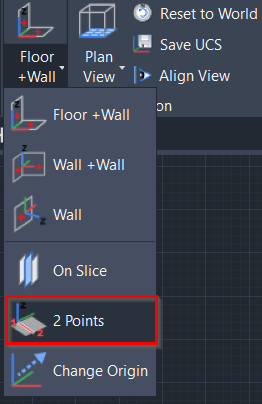

    1. Select 2 Points from the Workplane menu in the Orientation panel.

    2. Type a command line prompt specific to the preferred CAD system and press ENTER.

  2. When prompted to Pick origin, select a point on the point cloud to define the origin.

  3. When prompted to Pick X axis, select a point on the point cloud to define the X-axis direction.

This will not change the orientation or direction of the Z-axis. It will remain in the up direction.

The Y-axis will rotate to match the user-defined pick points and the UCS will be aligned.
