Advanced Applied Control Techniques

Apply Control to a Single Setup

With at least three targets, control can be applied to a single Setup or Walk (BLK2GO):

  • Right-click a Setup in the left-side explorer and select Apply Control.

  • The Setup or Walk will be registered to control if within.

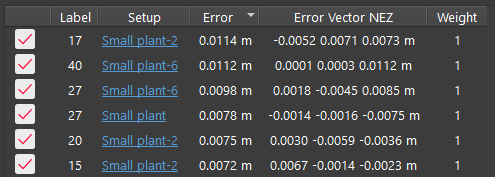

Error Vector Added to Applied Control

Error vector is available in the Applied Control Properties panel.

Multiple Control Files Are Supported

Multiple control files can be imported into the same project.

The user can apply different control files to Bundles in the same project as follows:

  • Import another control TXT file.

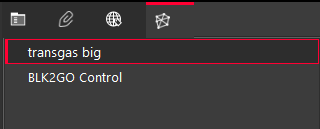

  • Go to the Controls tab to view.

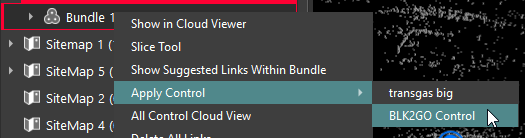

  • When applying control, the dialog will show all imported controls.

Bundles Will Snap into Position in the SiteMap Area when Dropped into the Same Control

With the old behavior, only the first Bundle with Applied Control would snap into position according to the control coordinates.

Now all Bundles applied to the same control snap into position in the SiteMap.

Example workflow:

  • Apply control to Bundle one.

It will snap into position according to the control coordinates.

  • Apply the same control to Bundle 2.

It will also snap into position according to the control coordinates.

Applied Control Can Be Run Without Labeling the Targets in the Bundle

Geometric matching of labeled control targets to unlabeled Bundles is supported. This feature greatly enhances the Applied Control workflow, making it faster.

Example workflow:

  • Import control TXT file.

  • Import Setups with targets and register Setups into one Bundle.

Labeling of targets in the Bundle is not necessary.

  • Use the Applied Control command.

  • Geometric matching will match control targets to the targets in the Bundle without the need for Bundle target labels.

Auto Re-Label or Auto-Add Labels to Targets After Control Is Applied

During applied control, the user is now asked if the Bundle target labels should be re-labeled to match the control labels.

This new feature automatically (but optionally) re-labels all the targets in a Bundle to match the control labels. This saves time when inspecting a Bundle for errors.

Example workflow:

  • Start with a Bundle that has targets with or without user-created labels.

  • Apply Control.

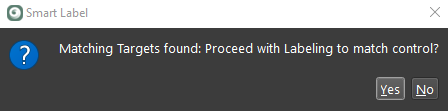

  • A dialog will appear asking if the targets in the Bundle should be re-labeled to match control.

  • If Yes is selected, all the Bundle targets will be re-labeled to match the labels in control.

  • If No is selected, then none of the Bundle targets will be re-labeled to match the labels in control.

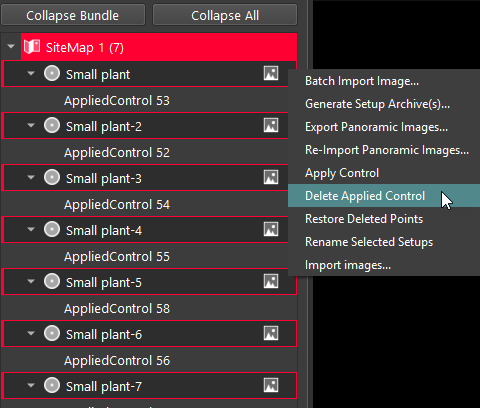

Allow Multi-Selection of Setups to Delete Applied Control

Since multiple Setups can be applied to control without any other connection between them, the user has the ability to select multiple Applied Control objects in the left-side explorer and delete them.

Publishing Setups Registered Only to Control

Setups that are registered to control, but not necessarily to each other, can be finalized and published.

Example workflow:

  • Import Setups with targets.

  • Apply each Setup to the same control.

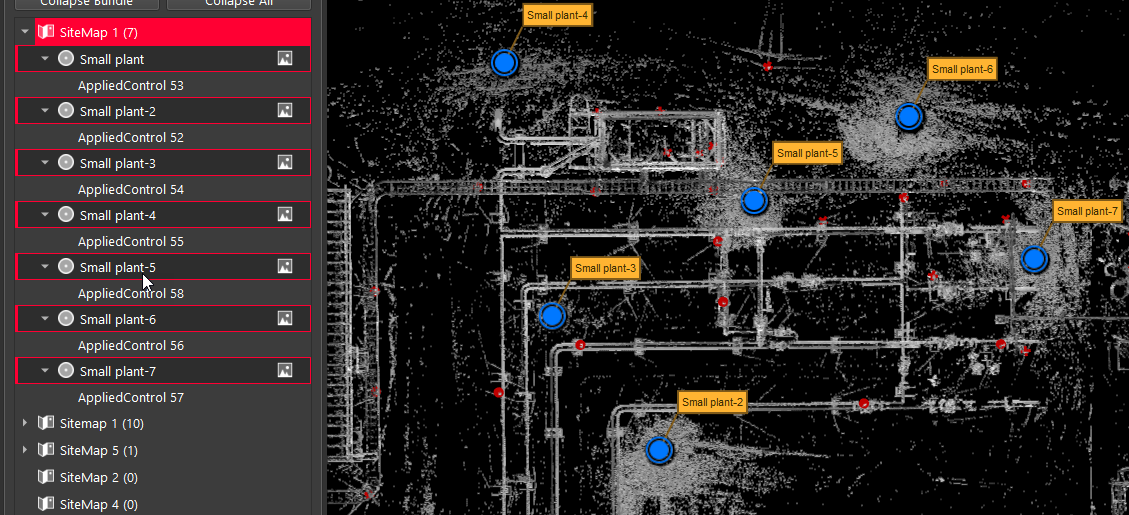

The figure below shows the example of six Setups, each on control, without links:

  • These Setups, attached together only with control, can be finalized and published as a Bundle even though they do not form a Bundle object in the left-side explorer.

Optionally Show Setup/Bundles Tied with Control in the Bundle View

There is an option in Settings to show Setups and Bundles, that are only attached with control, together in the Bundle view.

Example workflow:

  • Import five Setups with targets.

  • Do not register with Cloud-to-Cloud or targets.

  • Apply control separately to each Setup.

  • Try to view all of the Setups together in the Bundle view.

This will fail if the above option is not checked.

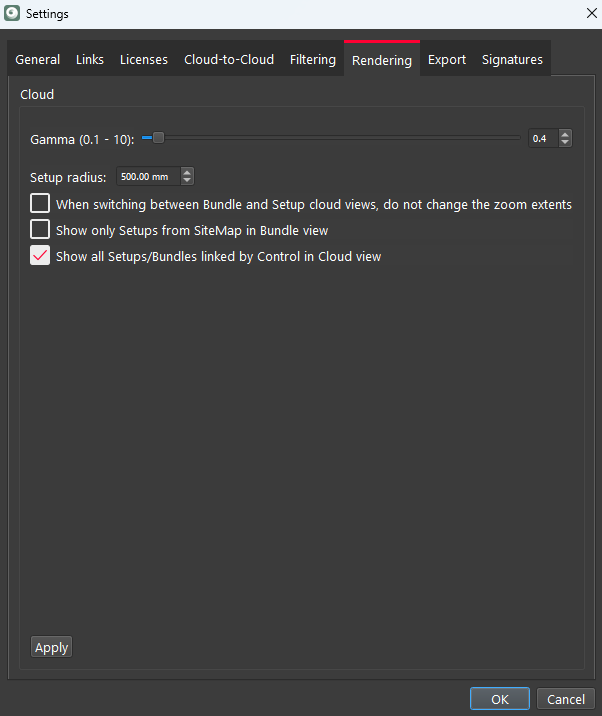

  • In Settings, on the Rendering tab, select the Show all Setups/Bundles linked by Control in Cloud view check box.

  • Click on a Setup and select Show in Setup Cloud Viewer.

  • All Setups will be viewed.

Show all Applied Control Properties in the Applied Control Panel

The Applied Control panel shows all the errors from all the Setups/Bundles that have Applied Control objects. This makes reviewing the control errors faster and more easily viewable for error detection.

Imported Setups with Pre-Registered Option Keep Scan Original Coordinates

Multiple active UCSs are now supported within the same SiteMap. This is accomplished with the new command: Set to Active UCS.

Set to Active UCS allows the selected Setup(s) or Bundle(s) to adopt the coordinate system of the active UCS of another Setup or Bundle in the same SiteMap.

Example workflow:

This example illustrates importing a set of pre-registered data over a couple of days.

  • Day 1: Import a pre-registered set of Setups, creating Bundle 1.

  • The Setups will import as one Bundle with an active UCS called Bundle 1.

    • Click the SiteMap to view the active UCS on the right-side Properties panel for Bundle 1.

  • Day 2: Import another set of Setups that uses the same coordinate system as the first Setups imported in Step 1, creating Bundle 2.

  • Right-click Bundle 2 and select Set to Active UCS.

    • This will cause Bundle 2 to adopt the UCS of Bundle 1.

      See the video of the workflow in the Cyclone REGISTER 360 PLUS Assistant Panel.
