(2022.1.0000) Direct Publish to Cyclone ENTERPRISE

Leica Cyclone ENTERPRISE is a user-managed, on-premise project and data management solution for the reality capture market. Delivering a simplified enterprise-level management and collaboration platform, powered by Leica Geosystems’ JetStream technology, Cyclone ENTERPRISE facilitates:

It is possible to directly publish to Cyclone ENTERPRISE using the following versions of Cyclone REGISTER 360.

  • Cyclone REGISTER 360 version 2021.0.0 or newer.

  • Cyclone REGISTER 360 (BLK Edition) version 2021.0.0 or newer.

Workflow

  • Choose a Finalized Registration in the Report section.

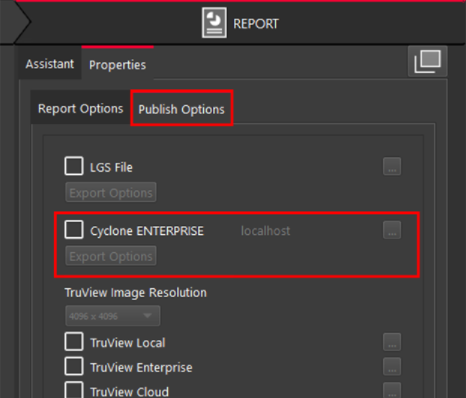

  • Click on "Publish Options" tab and select Cyclone ENTERPRISE.

  • Upon selection, if the Cyclone ENTERPRISE server is not set yet, the “Connection Settings” dialog will pop up.

  • Enter the Cyclone ENTERPRISE Server address port.

For example: "localhost" and "5050" for the local Cyclone ENTERPRISE instance.

  • Click “Check Server”. If the provided address and port is correct and the server is functioning properly it will display "Connected".

  • Click OK to continue.

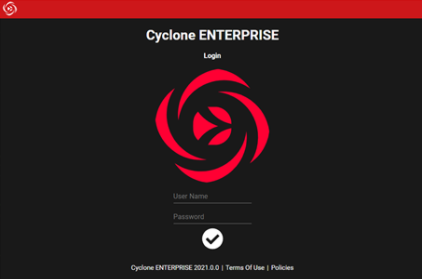

  • Login with a user that has publishing permission.

  •  Choose the Group and Storage location for publishing.

Note: You may need to login to the Cyclone ENTERPRISE from the Internet browser and set the storage location if no Storage location is set.

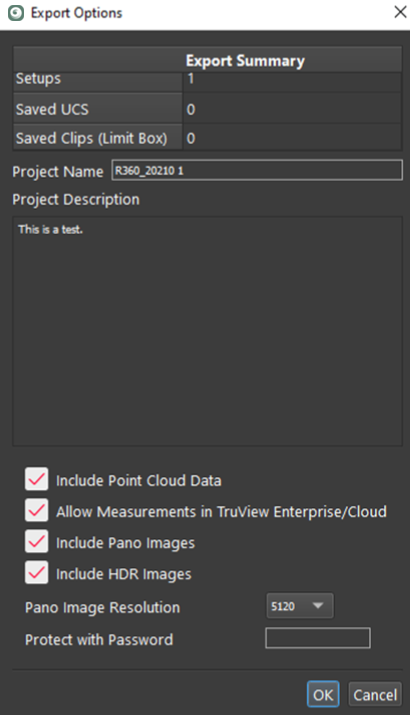

  • Choose Export Options.

  • Select OK to Publish.

Note: See Cyclone ENTERPRISE help doc for more details.
