CW TruSpace Pipe Diameter


The Pipe Diameter tool is used to measure the diameter of the selected pipe. The tool will provide a diameter in the unit of measurement defined in the viewer settings. If the tool is unable to detect a pipe, an error message will appear.

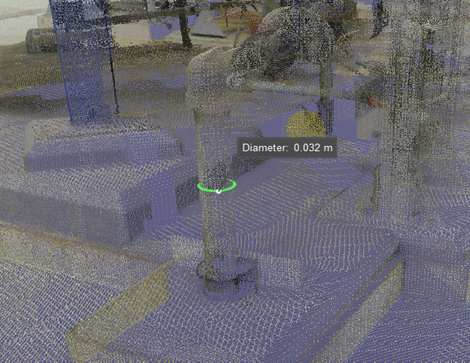

Mouse Control: In the Measure Diameter mode, simply click on a cylindrical pipe in the point cloud.
