This command allows users to export specific Revit geometric objects for use in other third-party software.


Using the Tool

To export COE objects, follow the steps below:

  1. Select the objects for export.

  2. Click COE Export in the COE panel.

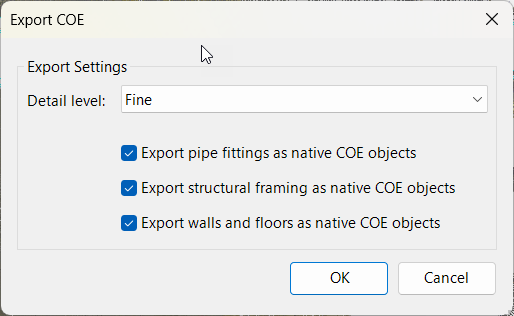

  3. In the Export COE dialog that will open, do the following:

    1. Select the appropriate detail level from the Detail level drop-down list.

    2. Ensure to select or deselect the check boxes according to your needs. If the check boxes are selected, the properties of the specified object types will be retained so that they can be imported back into Cyclone in the native COE format.

    3. Click OK to initiate the export process.


The following objects can be exported:

  • Walls/planes*

  • Pipes/cylinders*

  • Lines

  • Cone

  • Steel beams

  • Elbow

  • Elbow reducer

  • Flange

Note: Objects marked with an asterisk (*) are represented as 2D lines or curves in Revit.

3D vertex, sphere, cube, cone, and taurus are not supported for export.
