2025.2.0 | CloudWorx Plugins Release Notes

What’s New

CloudWorx 2025.2.0 is a major release that introduces significant improvements to:

• CloudWorx Viewers—including the introduction of the CloudWorx Viewer for AutoCAD and extended functionality for the CloudWorx Viewer for Revit.

• CloudWorx PRO Plug-ins—featuring compatibility with BricsCAD 2026, SmartPick functionality enhancements, Accelerated Graphics mode (BETA), automated pipe extraction, a set of bug fixes for stability, and many more.

ALL CLOUDWORX

Optimized Authentication for Reality Cloud Studio Projects

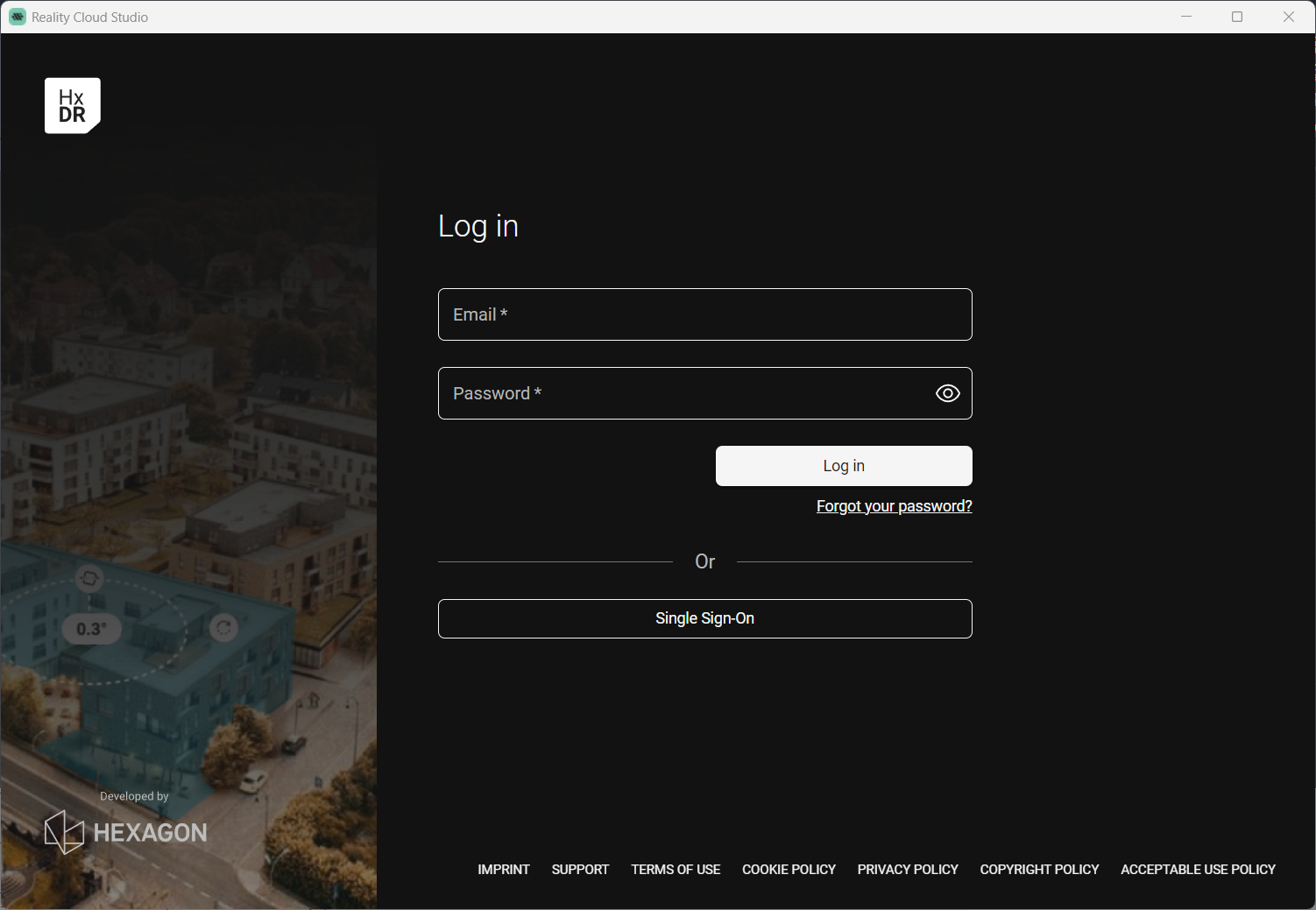

The connection to Reality Cloud Studio (RCS) has been enhanced with Single Sign-On (SSO) support, ensuring a more secure and streamlined login experience and enabling users to easily access and browse their RCS projects.

Enhanced Classification Experience

CloudWorx now reads and renders the latest classification models, aligned with Cyclone 3DR and Reality Cloud Studio, to deliver accurate, consistent, and standardised layer names for classified point cloud data.

Accelerated Graphics Mode (BETA)

The Accelerated Graphics Beta mode has been introduced in CloudWorx to improve point cloud rendering performance. The Accelerated Graphics Beta button is now located in the Rendering panel of the CloudWorx ribbon, allowing users to toggle the feature on or off and access rendering acceleration for their project needs.

Note: This mode represents an early preview of performance improvements being implemented in CloudWorx and may cause some operational issues. If you encounter any issue or want to share your feedback on the Accelerated Graphics Beta mode, please submit it using this MS form.

Updated SmartPick Functionality

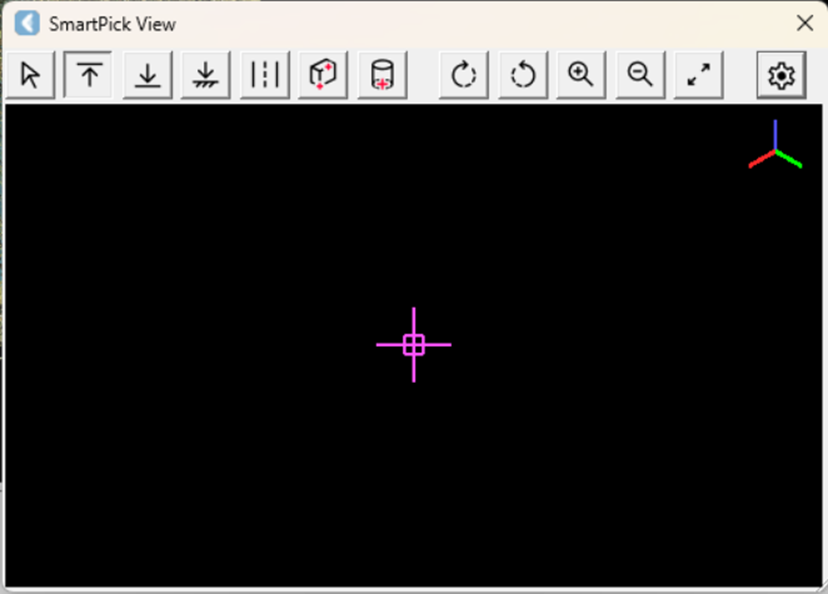

The SmartPick Viewport tool has been improved with advanced algorithms aimed at offering a more intuitive point selection experience and improved performance.

Along with refreshed icons for the existing toolset, the SmartPick Viewport functionality now includes two new tools:

• Pole Center : Identifies the central point of a pole and projects it onto the ground.

• Edge Corner : Facilitates quick selection of corner points along edges.

The SmartPick settings have also been redesigned for improved clarity. Users can now choose the preferred SmartPick method and define the search radius, ensuring a more controlled and predictable workflow for each SmartPick.

Discontinued Support for Cyclone CORE

Starting with this release, Cyclone CORE is no longer supported in all CloudWorx plug-ins.

AUTOCAD

CloudWorx Viewer for AutoCAD

CloudWorx Viewer is now available for AutoCAD. It is a free version of the CloudWorx plug-in that requires no license and offers a familiar, intuitive toolset for point cloud visualisation within the AutoCAD environment.

Supported Data Sources:

• Cyclone REGISTER 360 PLUS

• LGSx

• Reality Cloud Studio

• Direct import of e57, LAS, PTX (to LGSx)

• Cyclone ENTERPRISE

• RCP

Note: Only one point cloud can be opened at a time.

Key Features:

• Level of Detail (LOD) graphics

• Point cloud density levels

• Multiple document LGSx support

• Intensity mapping, true colour, classification, elevation

• Silhouette mode

• Cutplane Manager (sections, slices)

• Hide Regions Manager (fences)

• Limit boxes

• TruSpace (sync and point selection require a PRO license)

• Details on the LGSx project (under the About sub-menu)

• Online help

Deprecation of COE Plug-in for AutoCAD

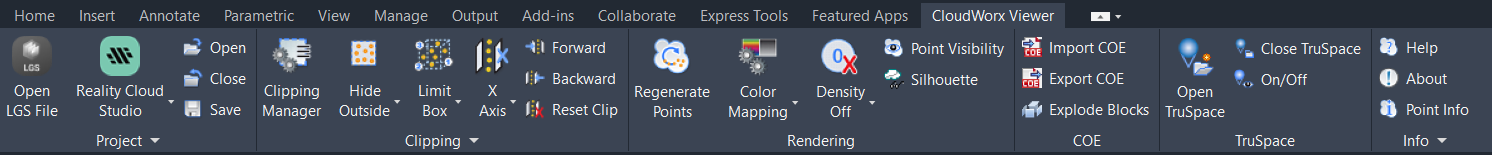

CloudWorx Viewer for AutoCAD now embeds COE functionality directly within the ribbon interface, eliminating the need for a separate COE plug-in. Consequently, the standalone COE plug-in for AutoCAD has been deprecated and removed.

New Find Pipes Tool

The new Find Pipes tool has been introduced in CloudWorx for AutoCAD to enable automated pipe extraction and streamline pipe modelling. Located under Fitters | Pipe Modeler (drop-down)| Find Pipes, this feature uses classification in the point cloud to detect and extract straight pipe sections and elbows from classified point clouds. It is compatible with both Cyclone 3DR and Reality Cloud Studio plant classification models.

To extract pipes using the Find Pipes tool, follow the steps below (refer to the Find Pipes Help page for details):

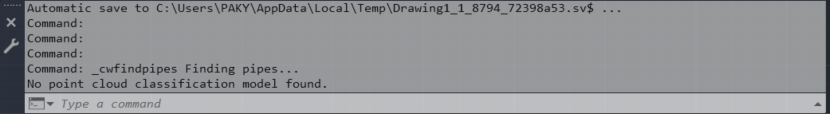

Note: If the data is not properly classified, a warning will appear in the command line.

1. Optional Step: how to verify the correct classification

   1. The initial version of the Find Pipes tool requires data that has been automatically classified by the Cyclone 3DR plant model, which includes classes for pipes at indexes 191 (Pipe Bend) & 192 (Pipe Cylinder). Thus, start by verifying if the dataset is properly classified:

   2. Navigate to Rendering | Color Mapping.

   3. In the Point Cloud Color Mapping dialog, select Classification from the Global Color Mapping drop-down list and click Apply.



   4. The Class Visibility button should become active. Click it, and the Point Cloud Classification dialog will open.

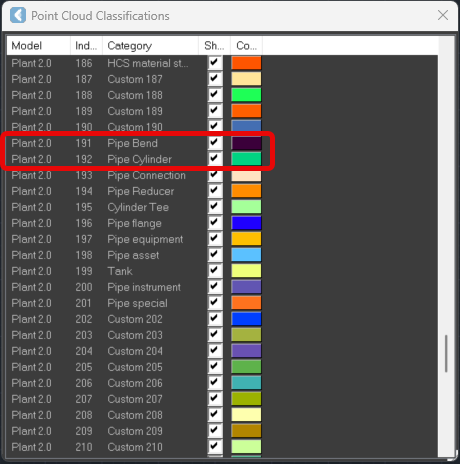

   5. Scroll to index 192 & 192, labelled Pipe Bend & Pipe Cylinder, and deselect the check box. Inspect the point cloud to confirm that the pipe data disappeared, verifying proper classification. Select the check box again to restore the pipe data in the CAD window. Close the Point Cloud Classification dialog.



   6. Apply the changes in the Point Cloud Color Mapping dialog and close it.

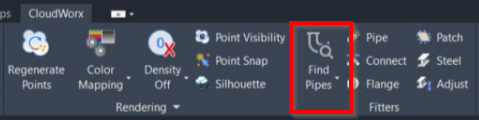

2. Go to Fitters and click Find Pipes.

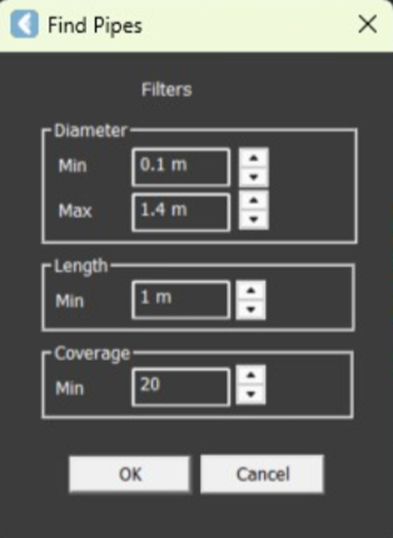

3. The Find Pipes dialog opens, displaying filters that control the parameters of the created pipes. Adjust the filters as necessary and click OK. The process of automatic pipe detection will start.

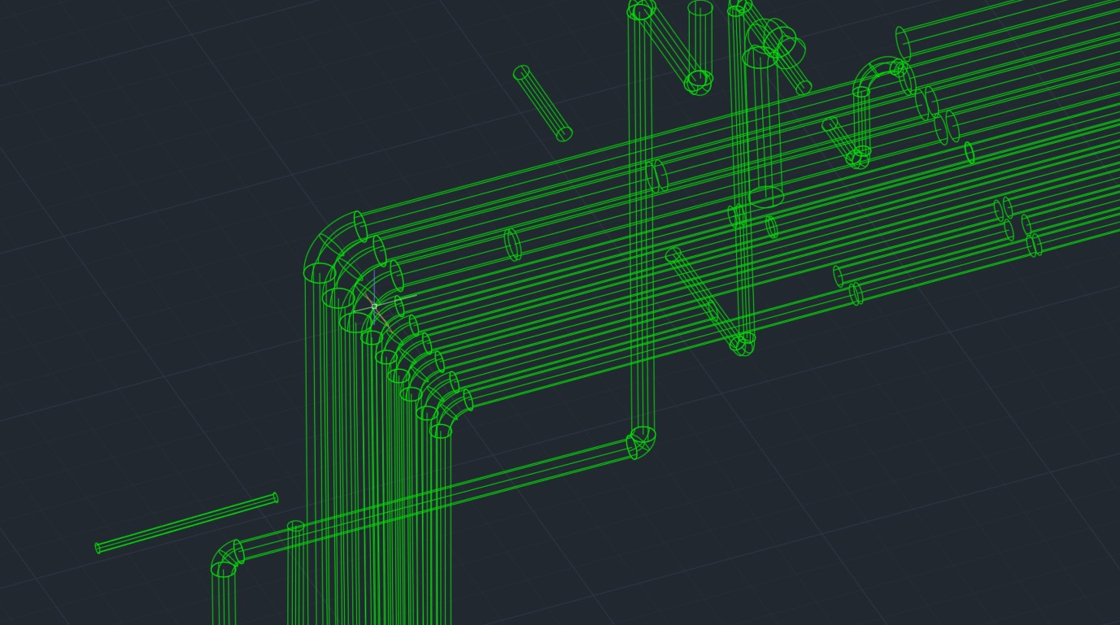

4. Once automatic processing is complete, the identified pipes will be displayed. Disable point visibility (Rendering | Point Visibility) to view the created geometry more clearly.

Align to Surface Tool Discontinued in CloudWorx for AutoCAD

Starting with this release, the Align to Surface tool, activated by the CWVALIGN command, is no longer available in CloudWorx for AutoCAD.

REVIT

TruSpace Support in CloudWorx Viewer for Revit

TruSpace is now integrated into CloudWorx Viewer for Revit, enabling fast point cloud navigation, as well as viewing of GeoTags and panoramic images, if available in the imported data.

When opened, TruSpace automatically displays one point cloud from the host CAD system, eliminating the need for point picking.

Note: TruSpace synchronisation and point selection features are only available in CloudWorx PRO version.

Measure Distance Tool

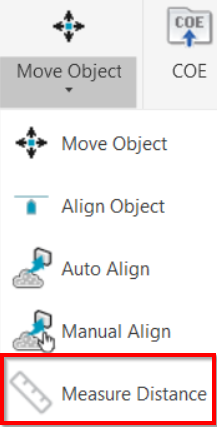

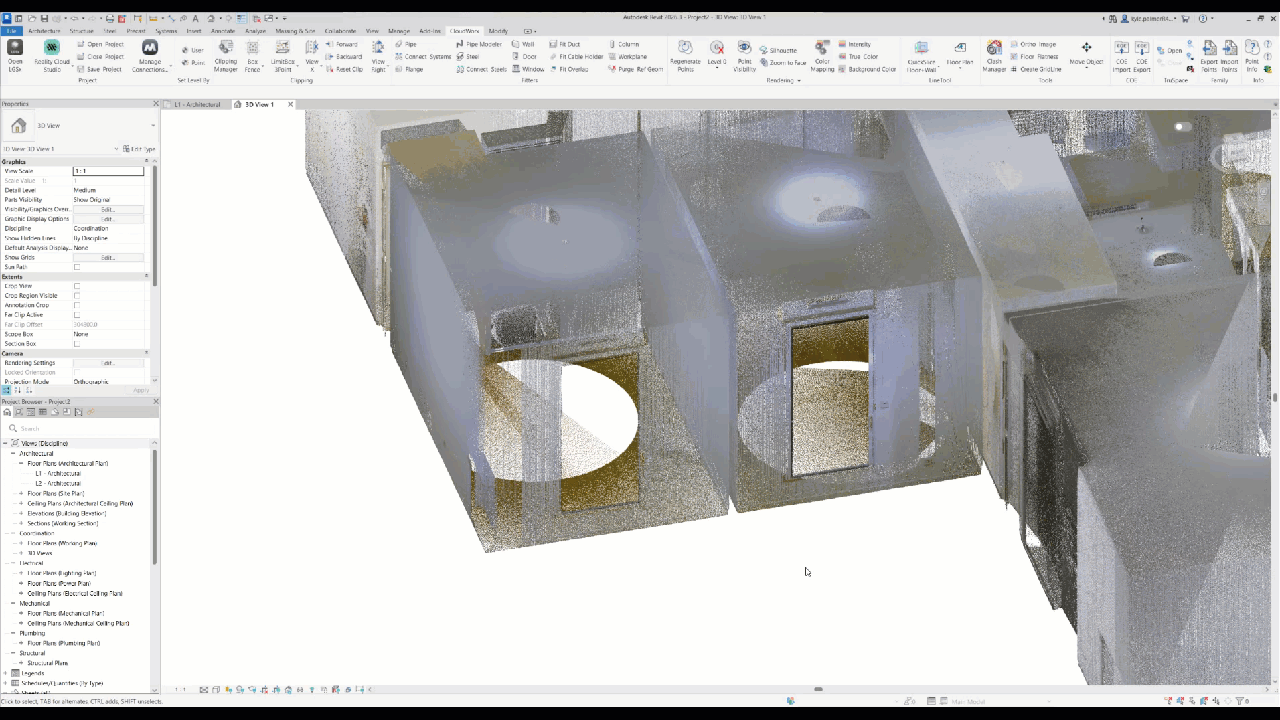

CloudWorx for Revit now features a new tool that enables users to perform point-to-point distance measurements. It can be accessed from the CloudWorx ribbon (Tools | Move Object (drop-down) | Measure Distance).

To measure the distance between two points:

1. Activate the tool.

2. Select two points in sequence.

3. Click OK to view the measurement results, including:

   1. Coordinates of the first point

   2. Coordinates of the second point

   3. 3D distance between the two points

   4. Horizontal distance between the points

   5. Vertical distance between the points

The tool supports both metric and imperial units, making it suitable for different project standards. Refer to the Distance Measurement Help page for details.

BRICSCAD

BricsCAD 2026 Version Compatibility

CloudWorx for BricsCAD now supports V26, enabling users to fully utilise the CloudWorx toolset within the BricsCAD V26 environment.

Bug Fixes

ALL CLOUDWORX

• Fixed an issue that caused TruSpace to show coordinates based on the default UCS, ignoring the coordinates of the active UCS. Now, TruSpace correctly displays coordinates, ensuring consistency between the host and TruSpace views.

• Fixed an issue that caused scan positions to be hidden in TruSpace, requiring extra steps to make them visible. Now, scan positions are accurately displayed upon opening TruSpace.

• Fixed an issue that caused CloudWorx to become unresponsive when importing an LGS file and converting it to LGSx. Now, the conversion process runs silently in the background as intended, and the LGS file loads without causing the software to freeze or shut down.

• Fixed an issue that caused UCSs from the RCS dataset to be unavailable in TruSpace, even though they were correctly displayed in the host software. Now the correct coordinates are shown in TruSpace and update dynamically based on the currently selected UCS.

• Fixed an issue that caused CloudWorx to terminate unexpectedly when importing E57, LAS, or PTX files and converting them into LGSx.

REVIT

• Fixed an issue where CloudWorx for Revit was installed only in English, regardless of the language selected during setup. The plug-in now installs in the chosen language as expected.

CloudWorx Compatibility

The currently supported host CAD application versions per product are as follows:

CloudWorx 2025.2.0 for AutoCAD

AutoCAD, Civil 3D, Plant3D and Map3D 2023 - 2026

CloudWorx 2025.2.0 for Navisworks

Navisworks Simulate and Manage 2023 - 2026

CloudWorx 2025.2.0 for Revit

Revit Architecture, MEP and Structure 2023 - 2026

CloudWorx 2025.2.0 for BricsCAD

BricsCAD V23 - V26

Compatibility with Cyclone ENTERPRISE

CloudWorx 2025.2.0 is compatible with Cyclone ENTERPRISE 2021.0.0 and higher.

Compatibility with Reality Cloud Studio

This version is compatible with Reality Cloud Studio.

Upgrades

Upgrading Leica CloudWorx Installation

Administrator-level privileges for the workstation are required to correctly install Leica CloudWorx software. CloudWorx requires at minimum CLM version 2.14, which can be found in the dependency folder in the installation files.

First, uninstall the relevant CloudWorx plug-in (i.e. CloudWorx for AutoCAD). Run the latest CloudWorx installer as an administrator and follow the directions given in the installation wizard.

Deprecated Features

Leica Geosystems strives to provide support for the widest array of operating systems and file formats possible given current technologies and support from third-party partners.

With each release, we review our list of currently supported formats and operating systems in line with industry trends and announced product terminations.

Leica Geosystems may add or terminate support for a file format during any release. Obsolete operating systems will be supported for six months after their announced termination or the next major software release, whichever comes first. Server products will be supported in alignment with Leica’s Client License Manager (CLM) supported servers to guard users against incompatibility.

Please reference the Leica Geosystems Deprecated Features policy for a complete listing of discontinued features, formats and operating systems.

CloudWorx (All)

• Cyclone CORE is phased out as of version 2025.2.0.

• CLM versions prior to 2.5 are no longer supported.

• JetStream Enterprise is phased out after version 2024.1.

CloudWorx for PDMS

• CloudWorx for PDMS is phased out after version 2023.0.

CloudWorx for AutoCAD

• The Align to Surface tool, activated by the CWVALIGN command, is no longer supported as of version 2025.2.0.

CloudWorx for SolidWorks

• CloudWorx for SolidWorks is phased out after version 2023.0.

CloudWorx for Bentley (Microstation)

• CloudWorx for Bentley is phased out after version 2025.1.0.

Known Issues

ALL CLOUDWORX

Reality Cloud Studio Limit Boxes

Projects uploaded to Reality Cloud Studio between October 2024 and February 2025 may have an issue where limit boxes created in Reality Cloud Studio have an incorrect origin or “anchor point” and should not be activated in the clipping manager in CloudWorx. To correct this issue, re-upload the original file to Reality Cloud Studio.

Streaming From Reality Cloud Studio

IT security measures such firewalls and packets sniffers can affect the performance of streaming data from Reality Cloud Studio. For the best streaming performance, all URLs associated with HxDR and Reality Cloud Studio should be whitelisted by local IT departments.

Support for Reality Cloud Studio Projects

When searching for a specific project file name in the Reality Cloud Studio client browser, the search will be limited based on the user’s account access to the folder where the project file is stored.

After rendering a point cloud dataset that is streamed from Reality Cloud Studio to the CloudWorx workspace the Setups' naming that can be viewed either in the ScanWorld Explorer or TruSpace Explorer are not preserved.

CloudWorx Toolbar Is Missing After Installation

Some host applications do not show the Ribbon toolbar by default. As such, a user may need to enable it to properly see all the CloudWorx tools. To do so, right-click on the toolbar and select Ribbon to turn it on.

Unusual Empty Margin When Viewing in Perspective

Users will experience an unusual empty border around their point cloud view when view is launched from TruSpace. Due to the nature of perspective rendering, the issue is exaggerated when the user zooms as well as when the viewing window is wider (e.g., 16:9 ratio).

Modified Usage for Asian Languages

Some actions and dialogs do not execute properly when operating CloudWorx in an Asian language.

Temporary ModelSpace

When working with IMP data, users may see a temporary ModelSpace created within Cyclone to support rendering in CloudWorx. All ModelSpace views are temporary and will not be permanently added to a project. It is not a requirement that Cyclone be running while using CloudWorx.

Equivalent User Permissions Requirement

When working with IMP data, the host application must be run with the same level of user privileges as Cyclone was originally configured with. Meaning if Cyclone is configured to Run As Administrator, then the host application should be Run As Administrator to connect to Cyclone and open an IMP.

Importing MultiStation Data

There may be a delay when importing MultiStation data into CloudWorx. Users may see an error message which states that the server is not available. However, this message will disappear, and data will be imported as expected.

LGS Usage over Network

The use of LGS files is only officially supported when the files are saved locally. Due to variations between network deployments, LGS files may be unreliable when published to or hosted in a network location.

AUTOCAD

CWVALIGN Command

Starting a move command and then closing the tool window can cause AutoCAD to crash. The recommended workflow is to click the apply button in the tool window after each move is completed.

The tool window may hide after starting a move command, but on subsequent uses the tool window is still shown.

REVIT

TruSpace view sync in Revit

When using TruSpace for point selection such as pipe or steel fitting the Revit 3D window will not sync views with TruSpace. Sync works only in view mode, when another CloudWorx command is not activated.

CloudWorx for Revit Cable Tray Fitter

The cable tray fitter does not currently provide an accurate fit by size and may be rotated incorrectly. For example, a channel cable tray may be oriented upside down.

BRICSCAD

Graphics Card Compatibility in BricsCAD

Some laptop computers with both integrated and dedicated graphics cards might experience an issue when connecting to RCS. Users can set BricsCAD program preferences to use the integrated graphics GPU to resolve the issue.

Licensing

All users with currently valid CCP (Customer Care Package), or with CCP valid as late as 1-October 2025, can run this new version with no new license required.

CloudWorx Ultimate

A current CloudWorx Ultimate license will activate the following products and versions:

• CloudWorx for AutoCAD

• CloudWorx for Revit

• CloudWorx for Navisworks

• CloudWorx for BricsCAD
