CW TruSpace GeoTag Assets

Autocad Pro Revit ultimate

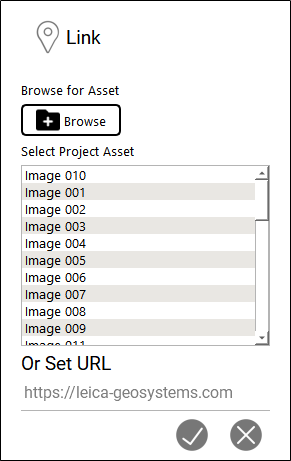

Click the Choose Asset button to change the asset associated with a GeoTag. This will open the asset browse dialog. The dialog will allow the user to choose from a list of assets that were published with the project, browse to an asset on disk, or set a URL.

If the user selects an asset and types in a URL, the asset will take precedence.

Note: When connected to Cyclone ENTERPRISE, GeoTags will automatically be saved to the respective project. For those utilizing an LGS/LGSx, saving the file is necessary to ensure that changes are retained.

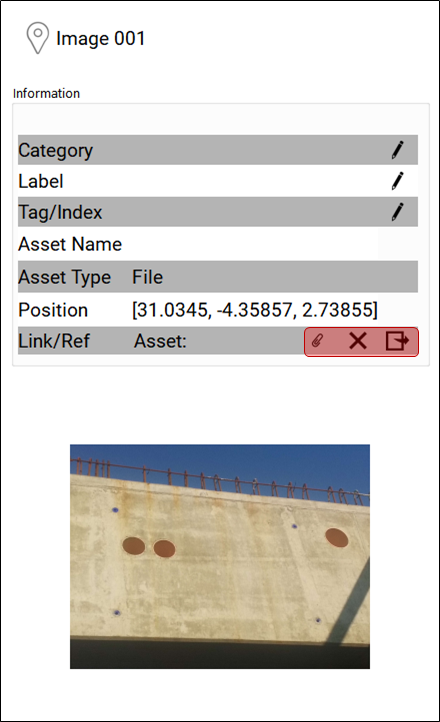

Click the Remove Asset button to remove the asset associated with the GeoTag.

Click the Go to Link Target button to open the asset in the default application. If it is a hyperlink, it will open the link in a default web browser.
