CW TruSpace Creating Markups

Autocad Pro Revit ultimate

To insert markups into a Snapshot, select a Snapshot in the top part of the panel and then select a tool from the tool bar.

Options to edit the Markup will be active based upon the tool selected. Once inserted, the Markup will only be visible in the Snapshot that was selected at the time it was inserted. Once inserted, the colour, opacity, and size of the markup can be adjusted in the lower part of the panel.  If the Markup contains a measurement, the unit can be changed. If the Markup contains text, the font type can be changed.


Markup tools

Coordinate

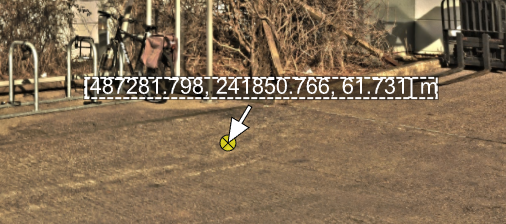

This tool enables the insertion of a coordinate pair into a Snapshot as text.  To do that, click the Coordinate button image-20240709-141525.png and then select a location in the Snapshot to insert a coordinate pair as text. The unit of measurement can be set to:

  • Meters

  • Centimeters

  • Millimeters

  • Feet

  • Inches

  • Yards

  • US Survey Feet

coordinate measurement.PNG

Temperature

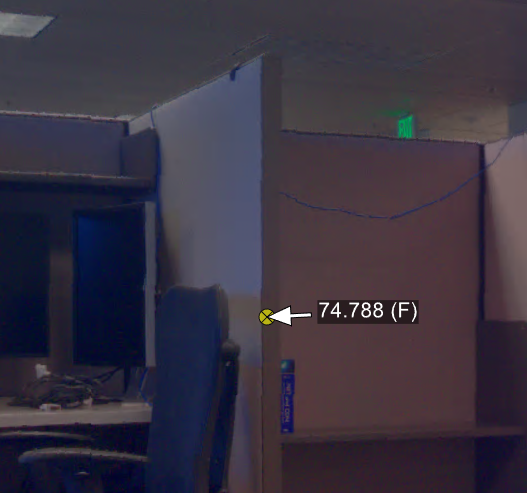

This tool enables the insertion of the temperature of a point into a Snapshot. To use it, click the Temperature button image-20240709-141653.png and then select the point at which you would like to query the temperature. This option is only available if the temperature was recorded from the sensor. The unit of measurement can be set to Celsius, Fahrenheit, or Kelvin.



Note: The Temperature tool is only enabled for data originated from the BLK360 imaging scanner and published as an LGS file.

Distance

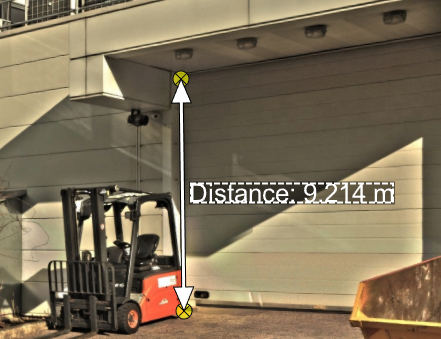

This tool enables the insertion of the distance between two points into a Snapshot. To use it, select the origin point and the terminus point and then select a third point where the distance measurement text will be placed. The unit of measurement can be set to:

  • Meters

  • Centimeters

  • Millimeters

  • Feet

  • Inches

  • Yards

  • US Survey Feet

distance measurement.PNG

Text

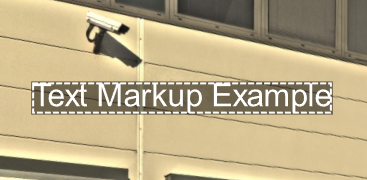

The tool enables the insertion of text into a Snapshot. To use it, click the Text label button image-20240709-142227.png and then select the location in the Snapshot where the text should appear.

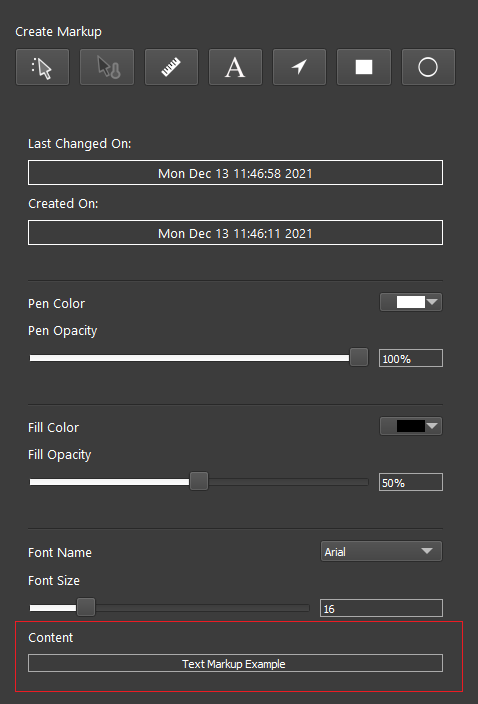

To edit the text, scroll to the bottom of the Markup panel and add the desired text in the Content field. To move the text, drag it within the Snapshot.

text markup edit.png





text markup.PNG


Arrow

The tool allows inserting an arrow graphic into a Snapshot. To use it, click the Arrow button image-20240709-142747.png , then click the origin point of the line and the terminus of the line. A line with an arrow at each end will be created. Arrows on each end of the line can be toggled on or off using the arrow buttons.

double arrow.PNG
double arrow 2.PNG
right arrow.PNG


right arrow 2.PNG


left arrow.PNG


left arrow 2.PNG


Rectangle

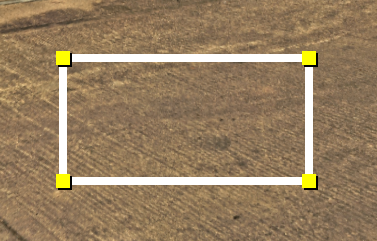

The tool allows inserting a rectangle into a Snapshot. To use it, click the Rectangle button image-20240709-143005.png and then click the upper-left and bottom-right points of the rectangle and the shape will be fitted to the selection.


Ellipse

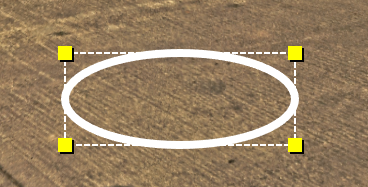

The tool allows inserting an ellipse into a Snapshot. To use it, click Ellipse button image-20240709-143225.png and then click the upper-left and bottom-right points of the ellipse and the shape will be fitted to the selection.
