July 17, 2024 | Reality Cloud Studio

What’s New

This is a weekly release including a new user search and support for Revit files.

Support for Revit Files

Users can now upload and navigate Revit files as assets. This addition expands the available formats that can be stored and interacted with using Reality Cloud Studio allowing user’s to archive not only point cloud and mesh assets but RVT files and their associated PRJ files for georeferencing.

Uploading RVT files

1. Navigate to the project you wish to add the RVT file to.

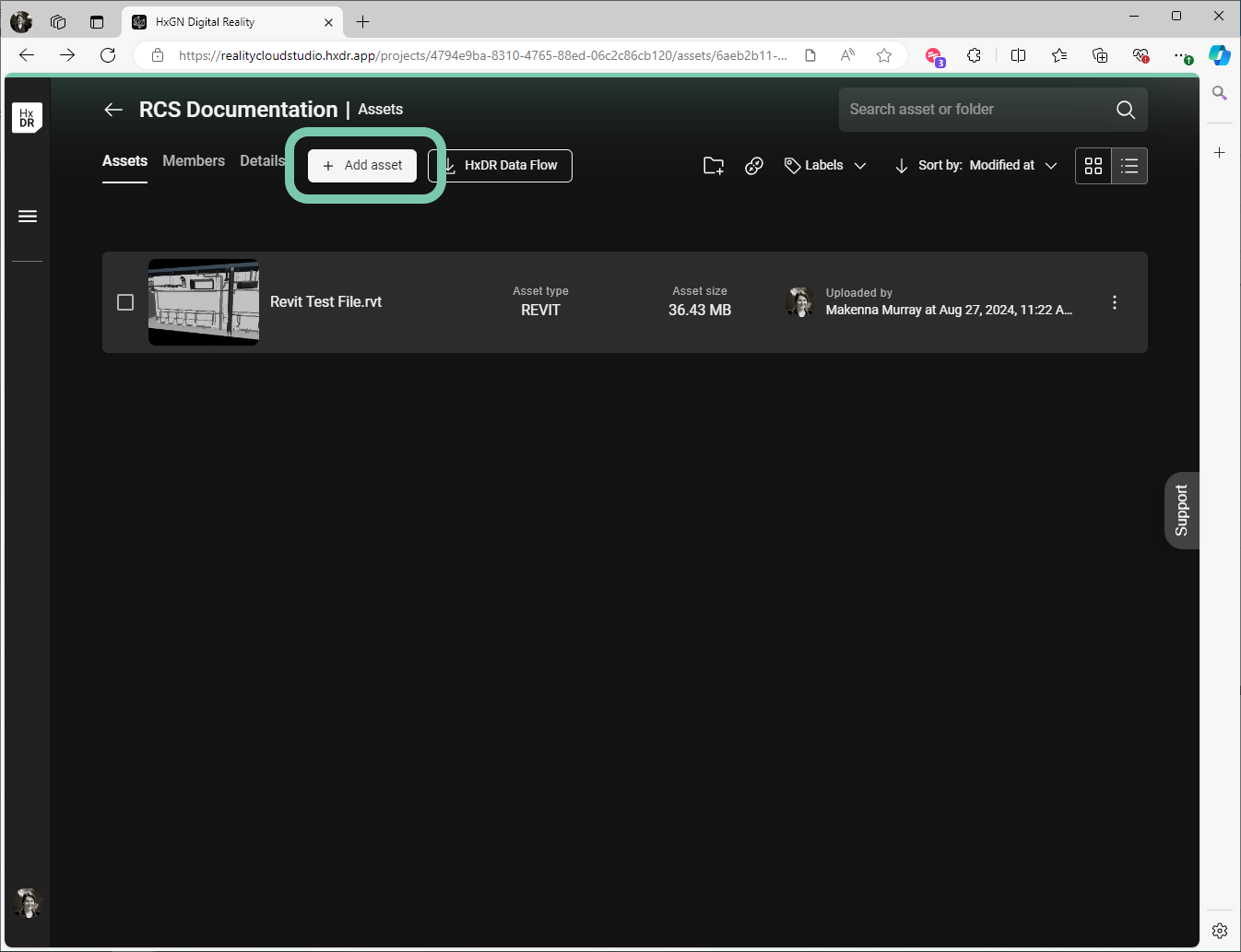

2. Select + Add asset and navigate to the file or drag the file into the browser window.

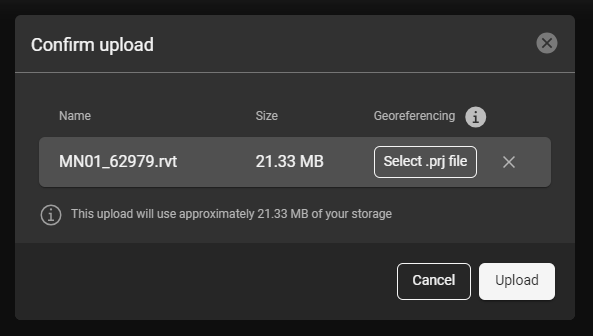

3. You will be prompted to confirm the upload.

4. Select Upload to begin uploading the file(s).

   1. During the upload process, you may navigate elsewhere in the product.

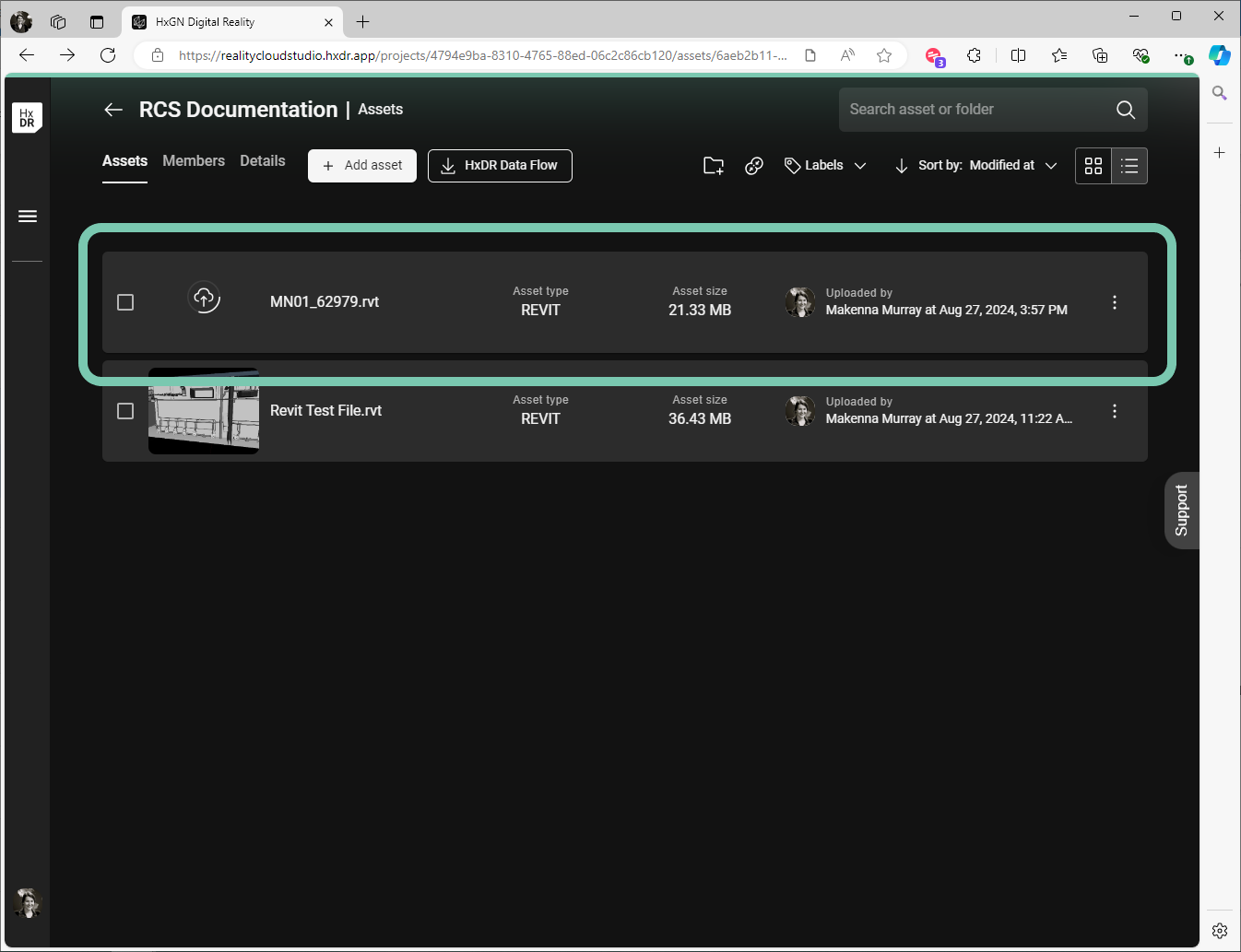

5. When the file is uploaded, it will appear in the same way as other project assets. Select the asset to view it.

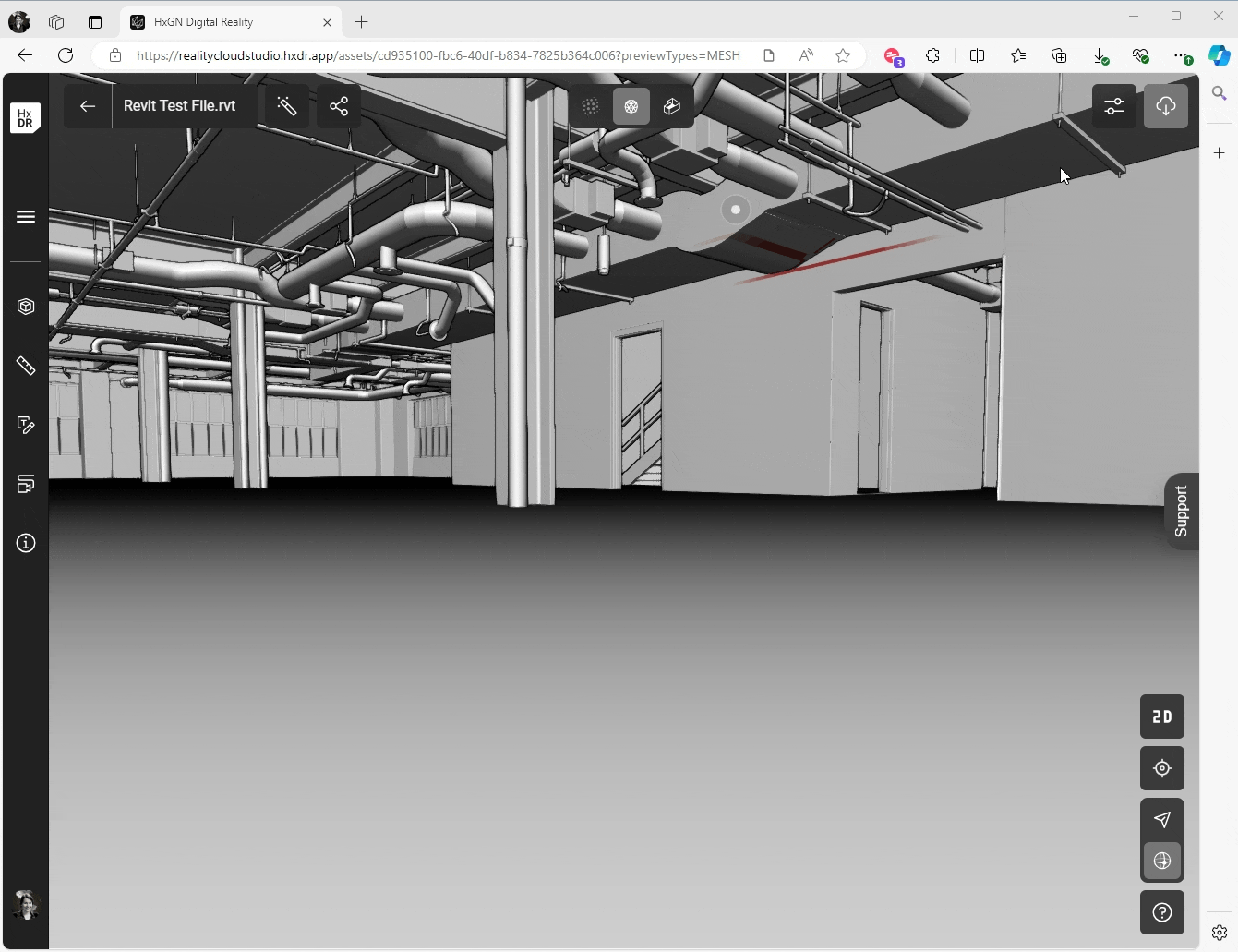

   1. The asset will be placed within the user’s field of view and can be interacted with as with any other asset.

Interacting with RVT Assets

Once an RVT file is uploaded as an asset, it can be interacted with in the same way as point cloud and mesh-based assets. Supported actions include:

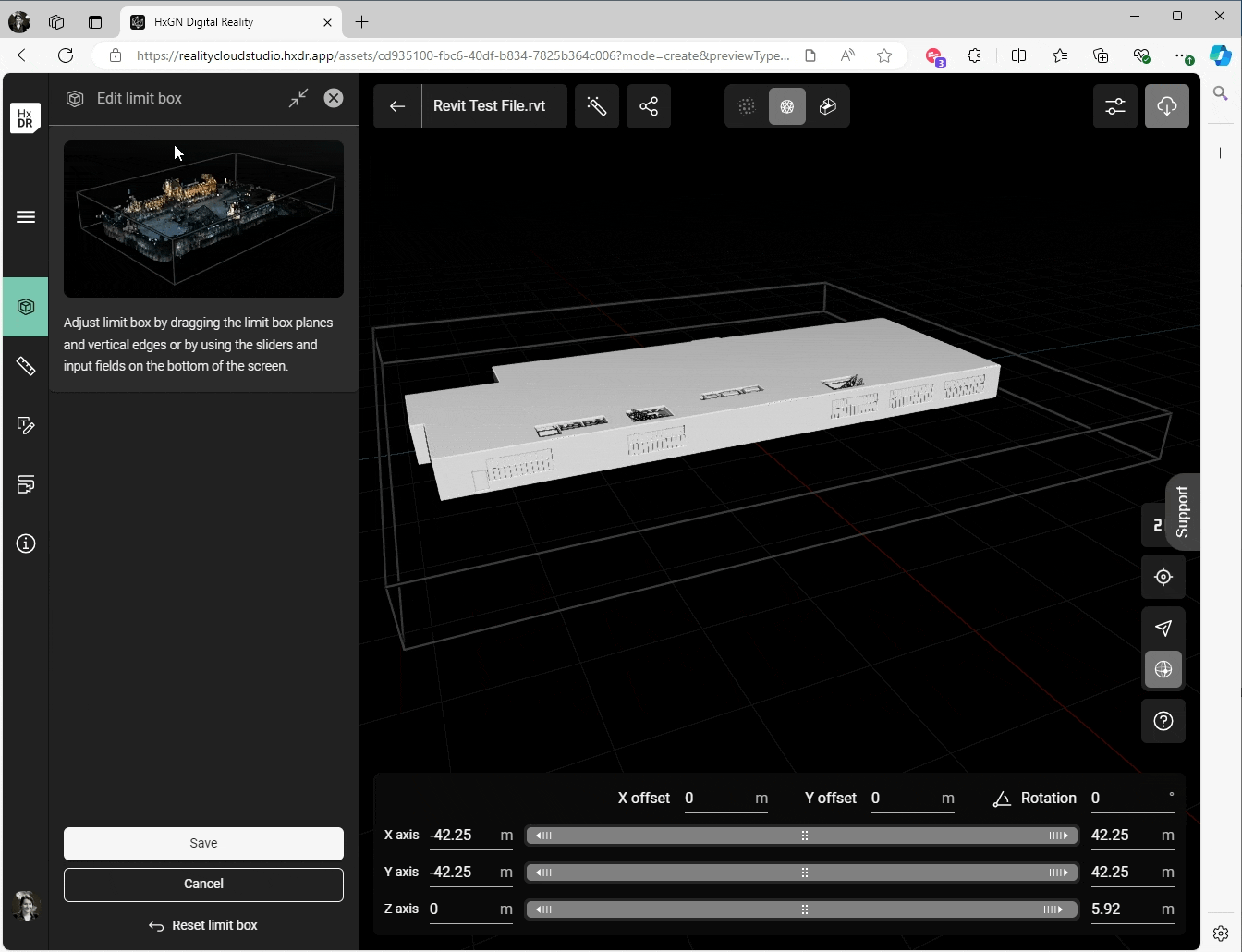

• Creating limit boxes including the model

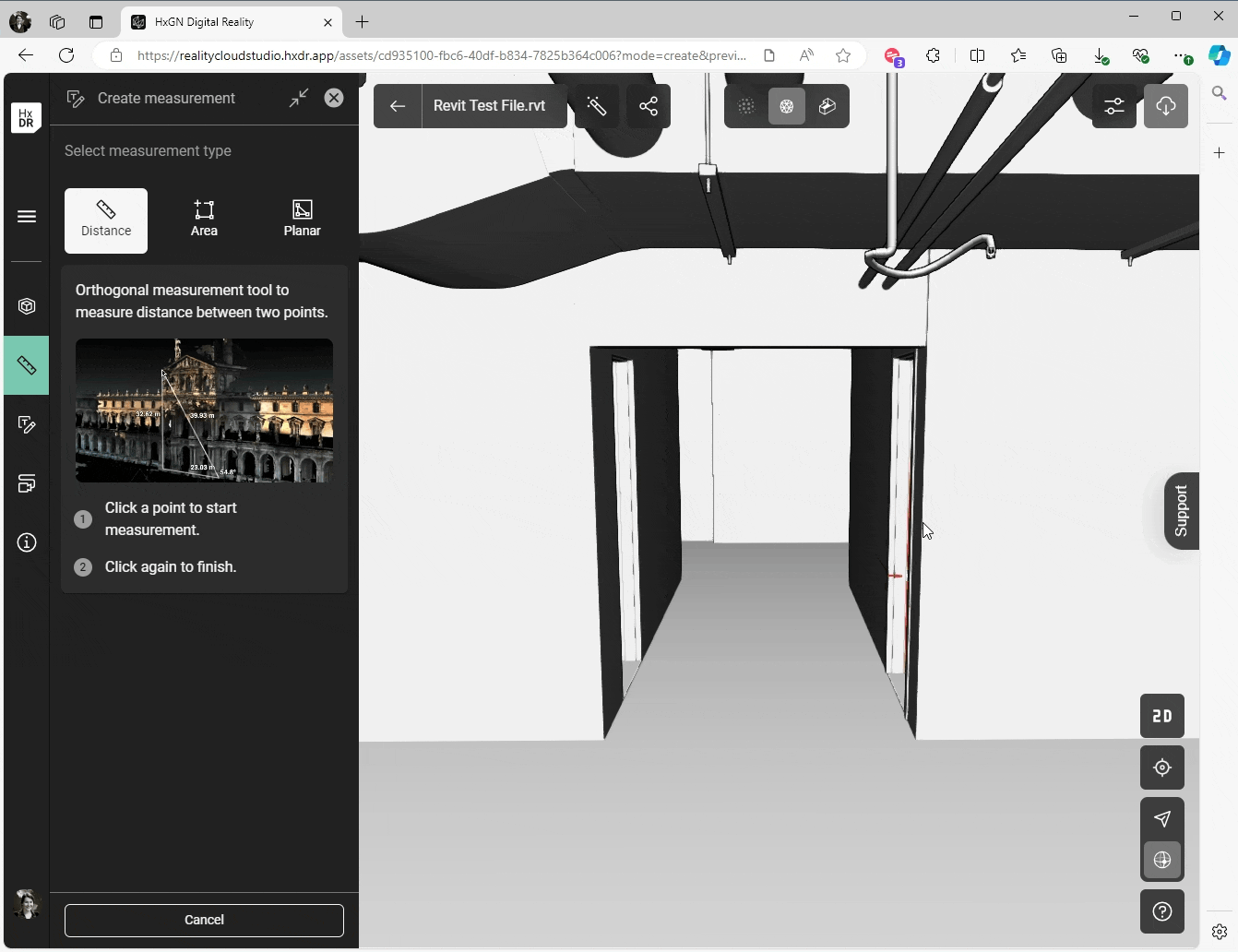

• Measuring on the model

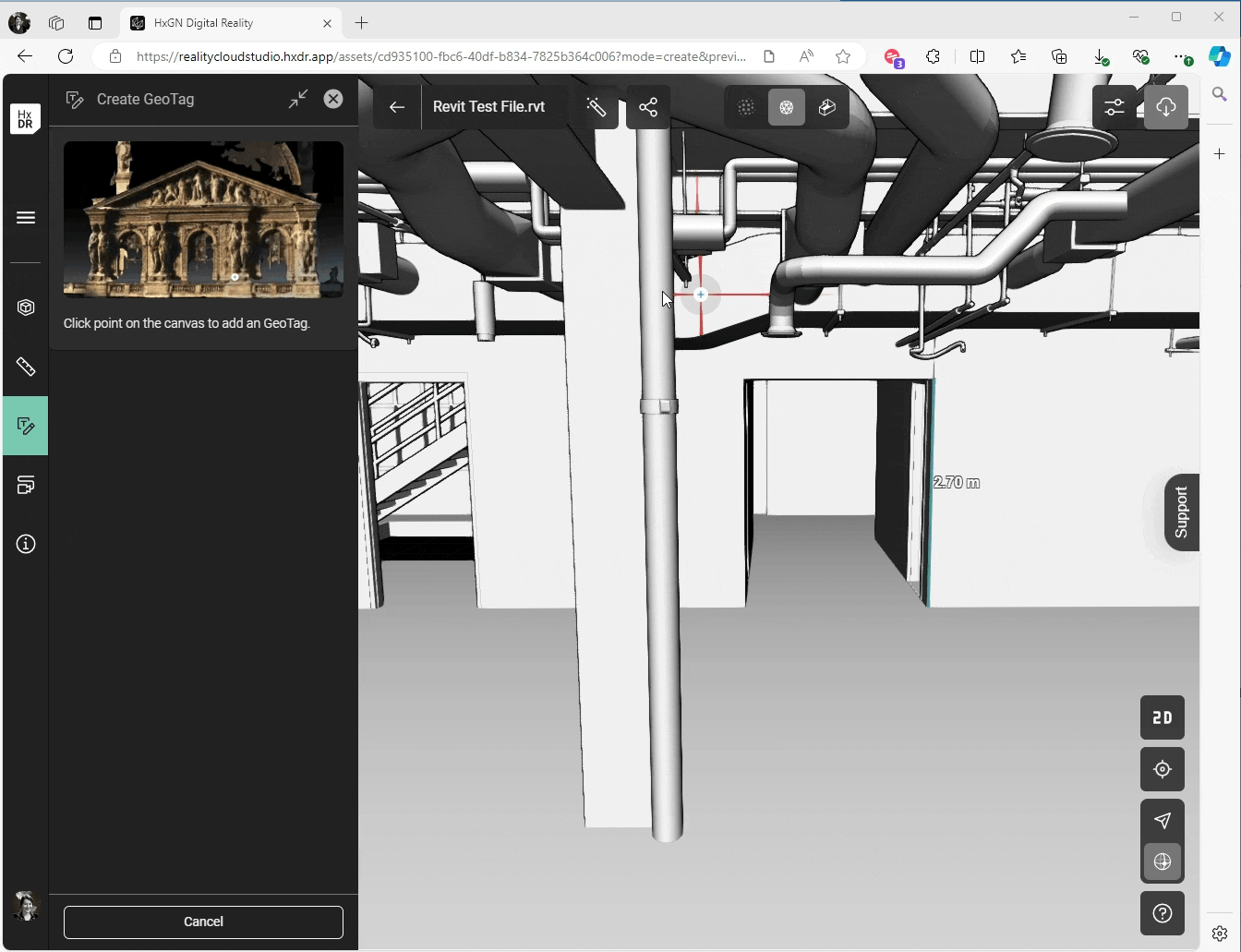

• Placing GeoTags on the model

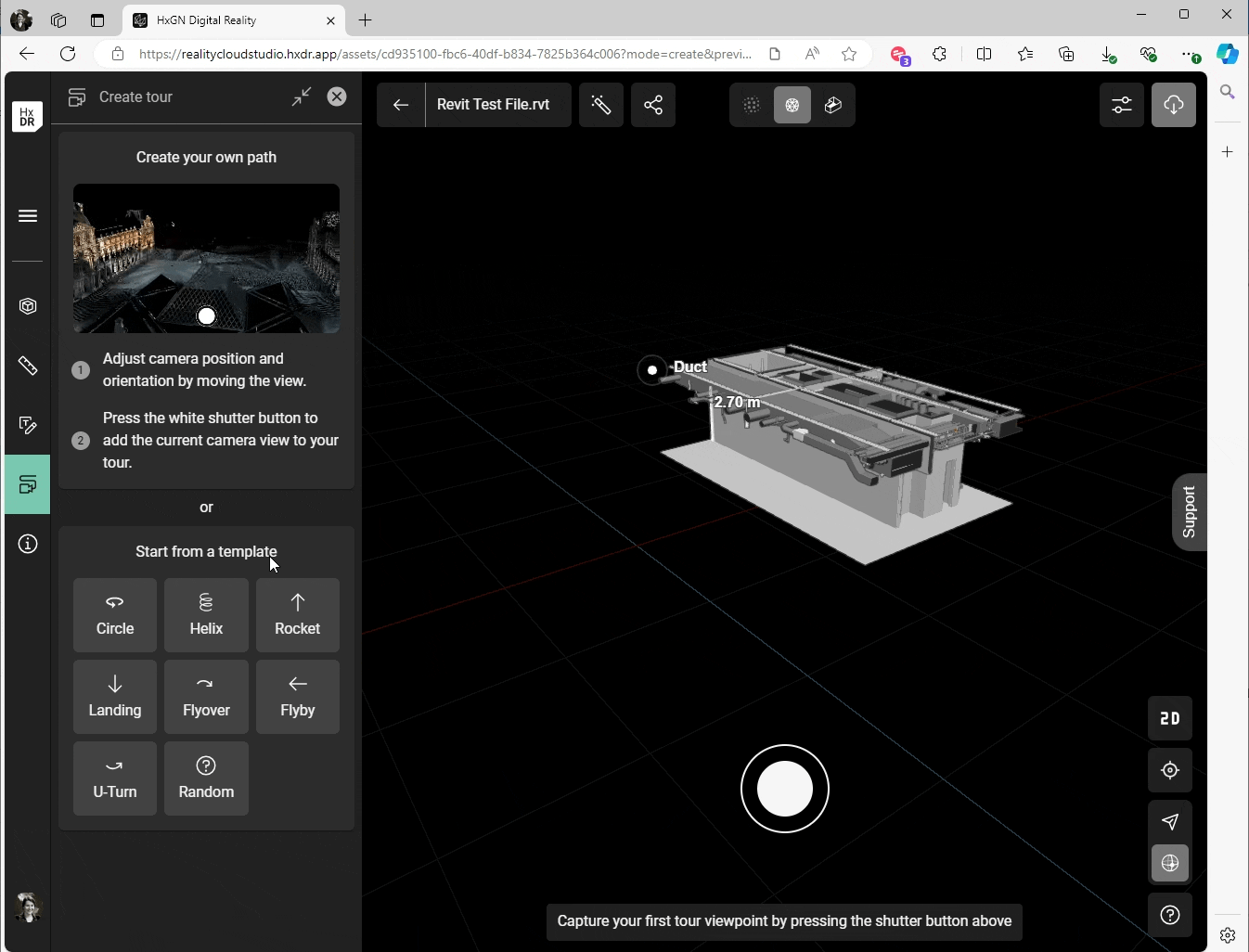

• Creating tours including the model

• Modify visualization settings

Exporting RVT Files

Assets originally uploaded as RVT files can also be exported. Follow the standard export steps described in the help file to download the original RVT file. https://rcdocs.leica-geosystems.com/reality-cloud-studio/latest/export

Search Users

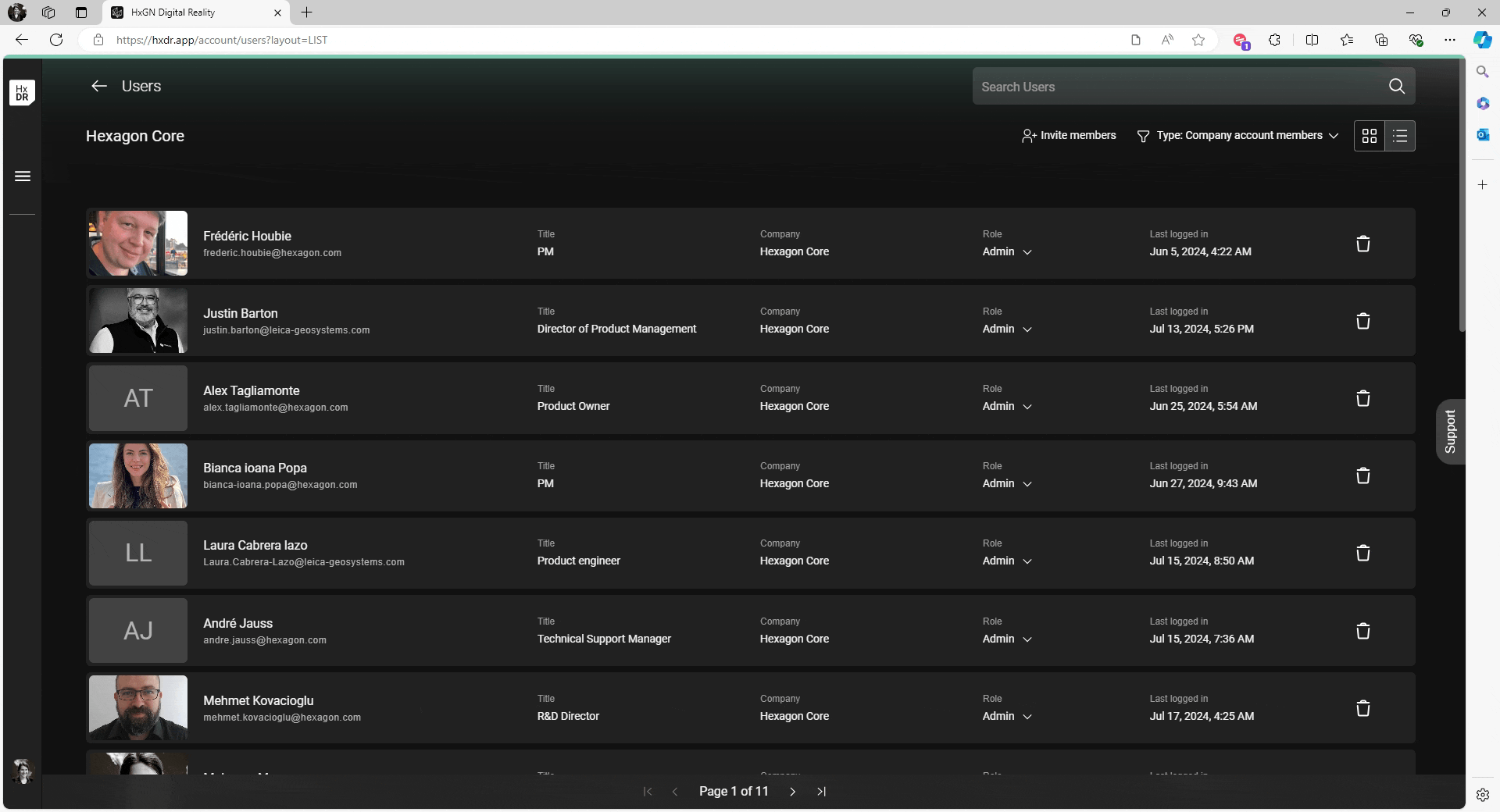

Within the Users tab, you can now filter results using a search bar. The list of users will update in real time.

Bug Fixes

• Fixed a bug that caused asset links to redirect to the dashboard.
