Export
Exporting your data is a convenient way to share transferable files with external users. Reality Cloud Studio allows you to export both the original file or your processed point cloud and mesh in the following formats.
Point cloud exports | Mesh formats | Other Formats |
---|---|---|
E57 | OBJ (.zip) | 3D Map (.byte) |
LAS | ||
PTS |
Access the export options by clicking the Export button in the upper right of the asset view.
The asset may also be exported from the Asset Dashboard.
Exporting consumes your subscription download quota.
Original File

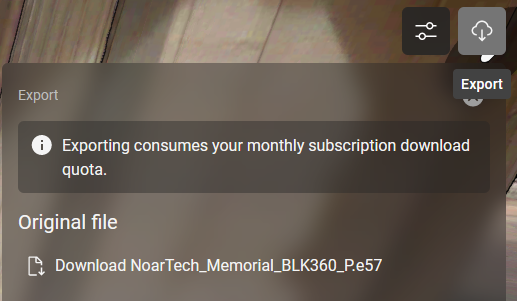

Users can export original uploaded file format. Clicking on the file name will begin the download.
![image-20240326-192841.png](../../__attachments/44857656498/image-20240326-192841.png?inst-v=f9e056c9-f985-428d-a0ce-85f560ea1d91)
Export As
Users can export the processed point cloud and mesh.

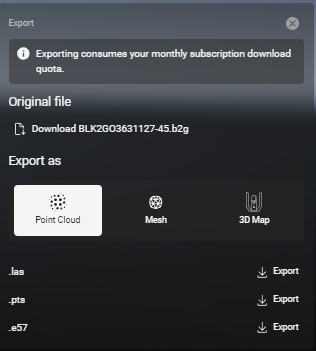

Select either Point Cloud, Mesh (when processed) or 3D Map (mobile data only)
![image-20240704-075222.png](../../__attachments/44857656498/image-20240704-075222.png?inst-v=f9e056c9-f985-428d-a0ce-85f560ea1d91)
If the desired format says ready for download, click the Export button.
Once the export is complete, click the Download button.
