BLK360 Support

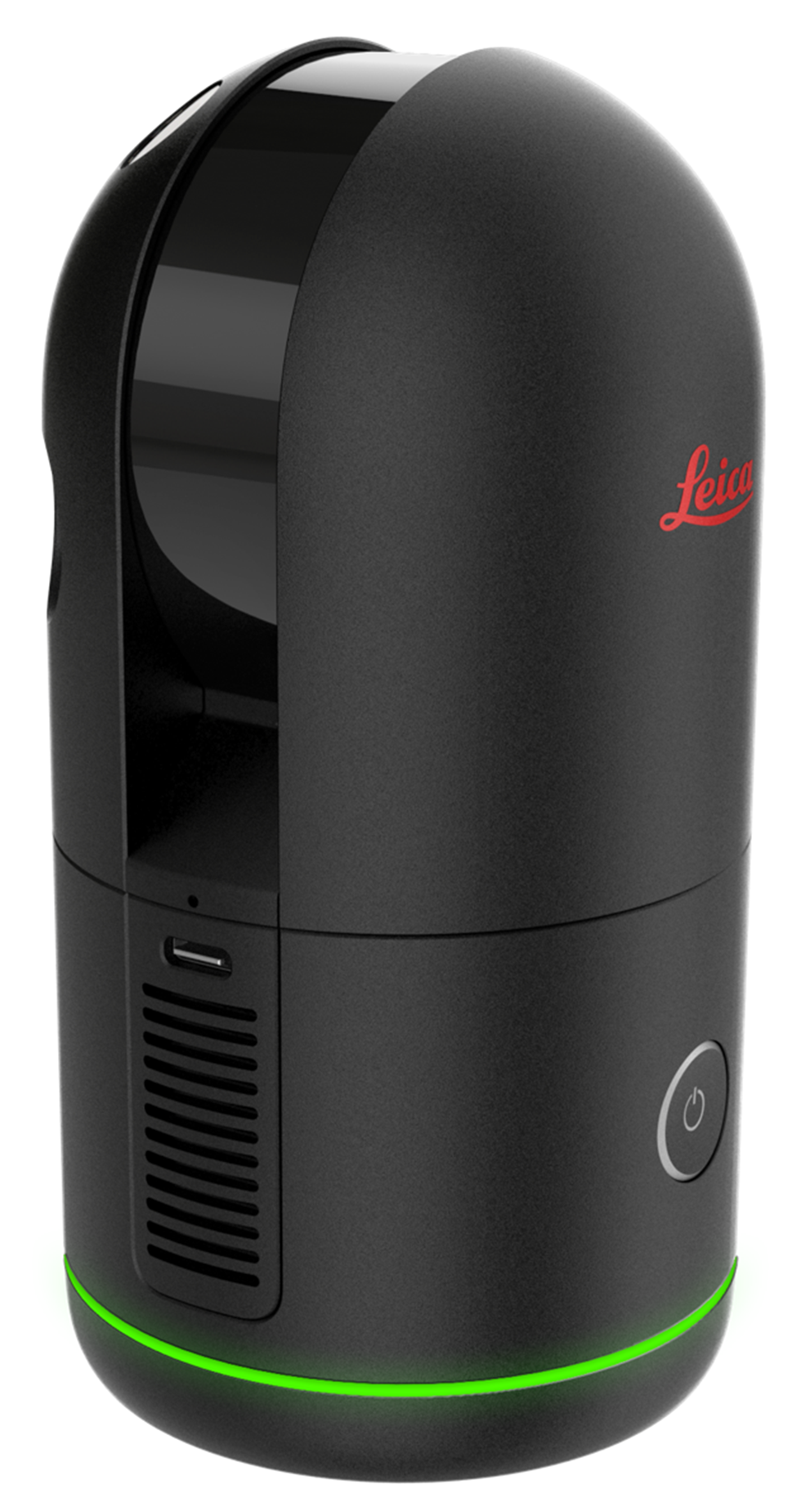

The all-new Leica BLK360 is the world’s fastest, smallest, and easiest to use laser scanner that speeds up and simplifies reality capture workflows. It captures complete scans within 20 seconds and even tracks its own location with a VIS system that automatically combines scans in the field.
Users can now download their scans from new BLK360 using either Wi-Fi or a direct connection with a USB-C cable. The new cable connection was a highly requested feature. It decreases download times while increasing the stability of the downloads.
Users can download to either the Data Manager creating .blk files and a new .blkjob file or they can directly import scans to Cyclone REGISTER 360 PLUS.
Any work done on FIELD 360, like pre-registering & creating bundles will be synched back to BLK360. Importing from BLK360 will have the updated information.
BLK360 Features
VIS links can now be created automatically if there is enough overlap between scans or through the Cyclone FIELD 360 app.
There are three settings that can be changed when the scanner is connected to a tablet using FIELD 360, BLK live app, or through the BLK Data Manager, Cyclone REGISTER 360 PLUS, or Cyclone REGISTER.
Scan Settings
Fast+
Fast
Dense
Dense+
Image Settings
None
LDR (LowDynamic Range)
HDR (High Dynamic Range)
Set delay
1 second to 600 seconds
There are three ways to connect to and download the scans into Cyclone REGISTER 360 PLUS.
Cyclone REGISTER 360 PLUS
Directly connect BLK360 to Cyclone REGISTER 360 PLUS.
Import from BLK Data Manager
Thumbnails not supported. The Thumbnail is a small picture of the images taken from the scanner that pops up when the icon in the left panel is hovered over.
