(2022.1.0000) Create Limit Box

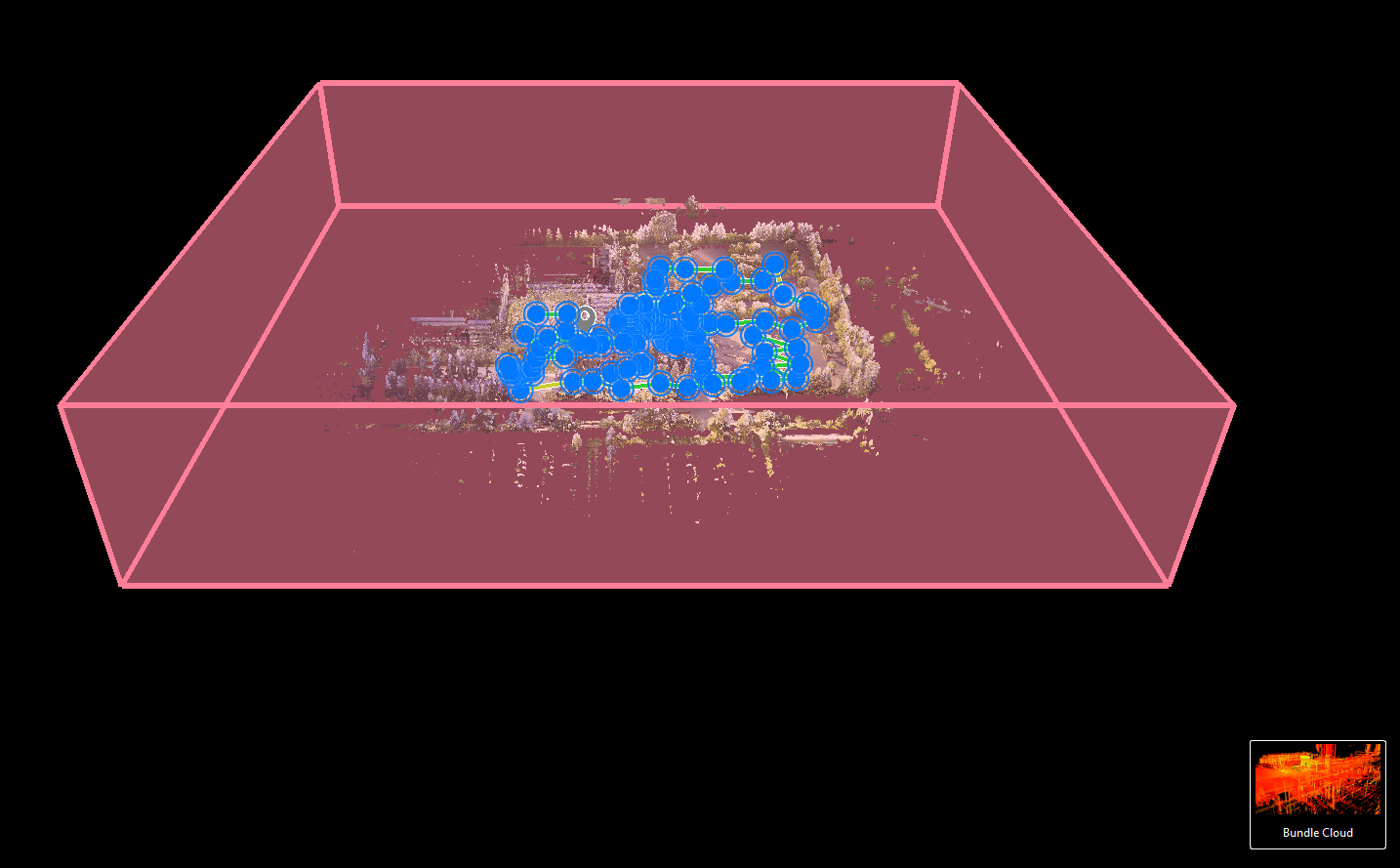

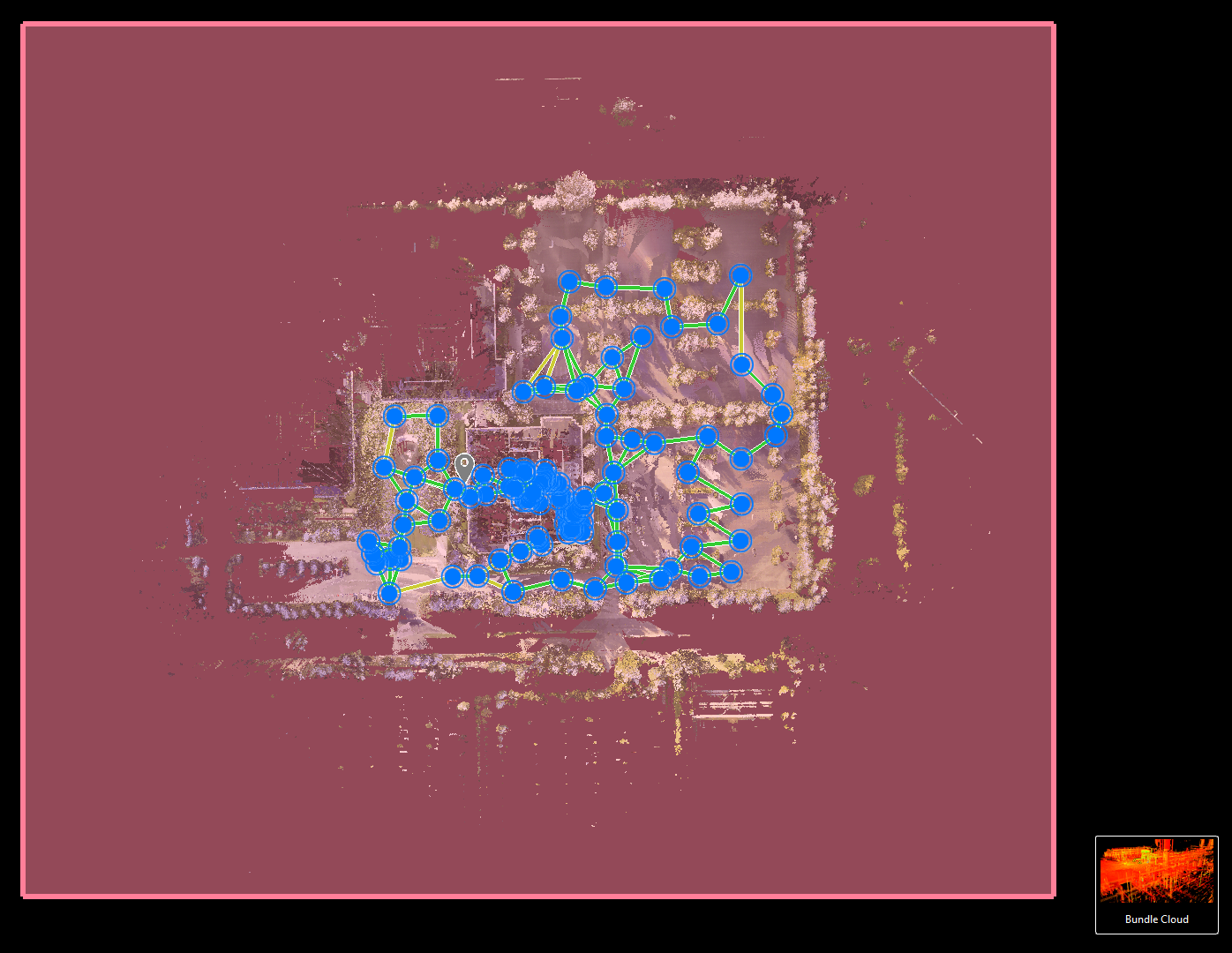

By clicking Create Limit Box a temporary clipping box is placed and shown that is vertically aligned to the z-axis and fits the setup/bundle extents.

  • If there is an active UCS then the Limit Box comes in aligned to the UCS.

  • The current box can be set shown/hidden from the command in the Limit Box tools.
