2022.0.1- Automatic registration from RTC360

Cyclone REGISTER 360 processes the RTC360 setup positions and Cyclone FIELD 360 pre-registrations for smart and automated registration.

Registration options

Auto Cloud

Importing RTC360 Projects without Cyclone FIELD 360

Cyclone REGISTER 360 processes the VIS tracking information from the RTC360 to create links that are later used for auto-registration.

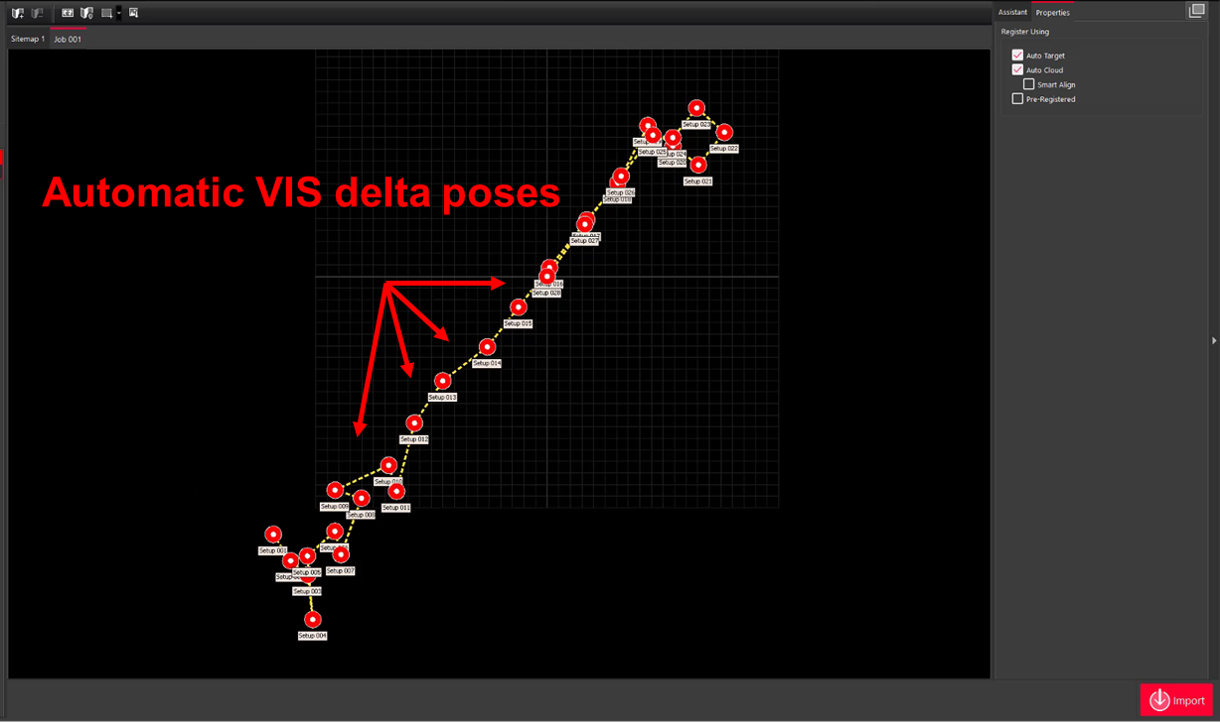

Upon transferring RTC360 data to Cyclone REGISTER 360, the VIS delta poses from the RTC360 are automatically created (yellow dotted lines)
The VIS delta poses are then validated for quality.

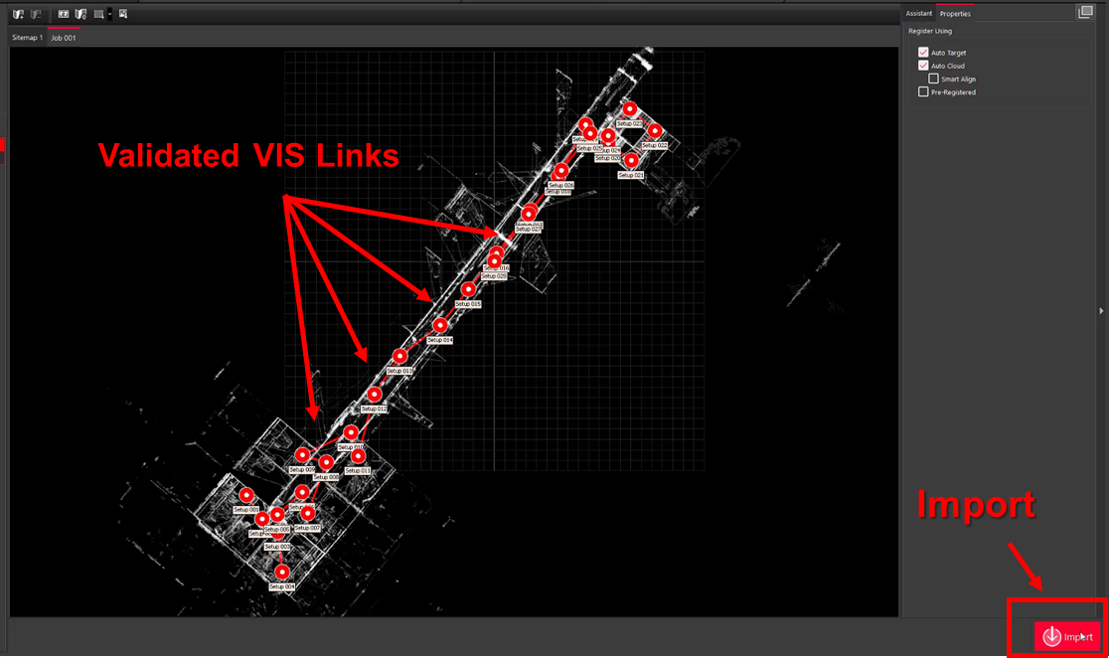

After validation, the VIS delta poses are changed to “trusted” links, which appear as solid red lines, in Cyclone REGISTER 360 and are prepared for importing

Importing Cyclone FIELD 360 pre-registered projects

Cyclone REGISTER 360 can also accept data that has been pre-registered in Cyclone FIELD 360. Rather than validating links in Cyclone REGISTER 360, as outlined above, the user will have already validated links in the field, allowing them to import data with links pre-defined.

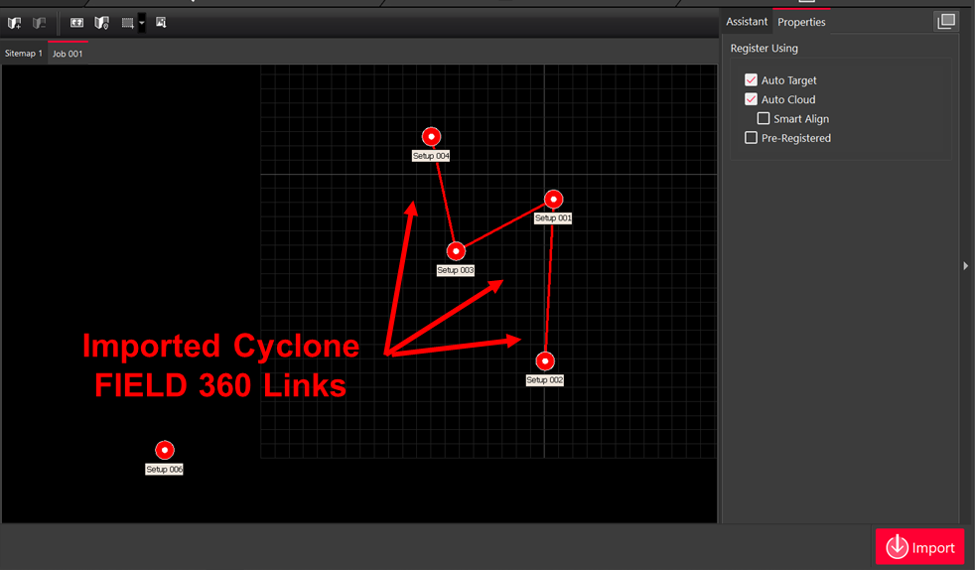

Upon import of RTC360 data, any verified Cyclone FIELD 360 links are included

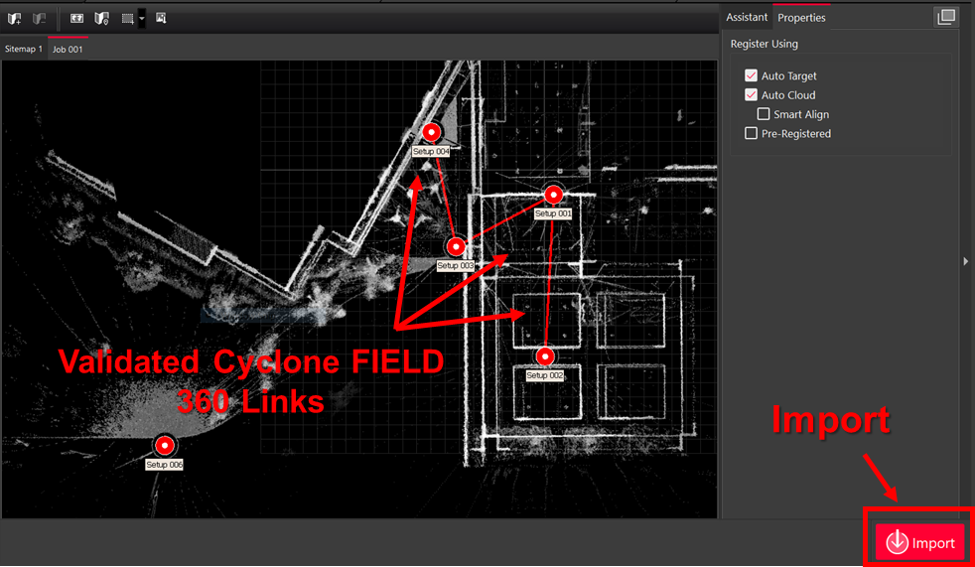

The existing links are re-validated and re-optimized and prepared for import

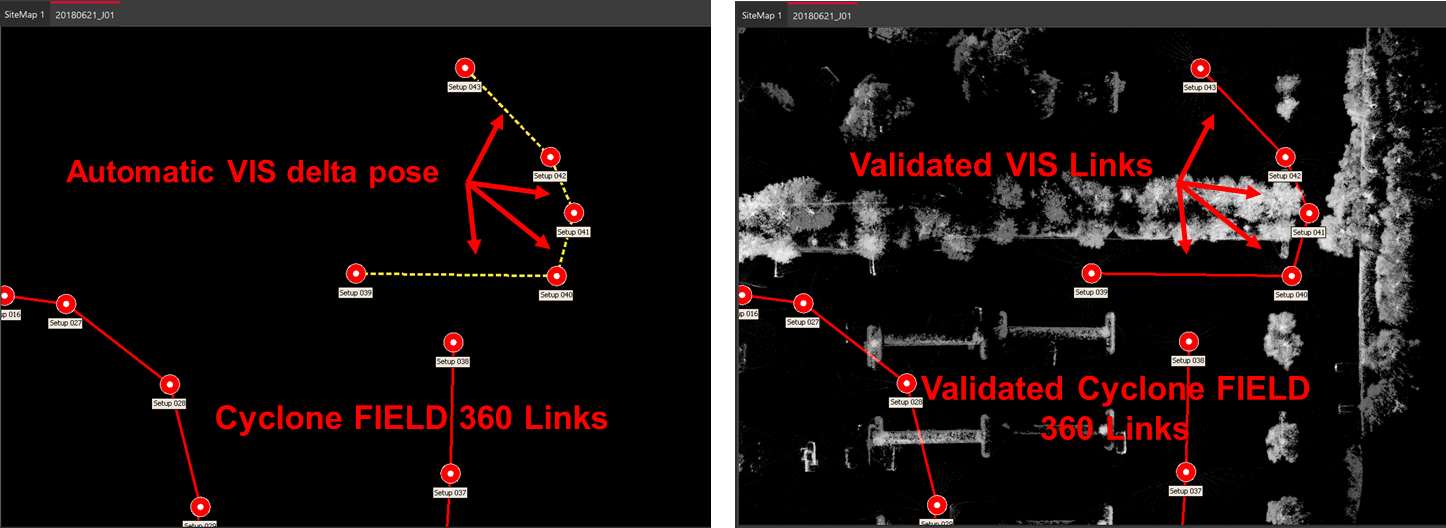

Combination of Cyclone FIELD 360 and VIS Links

It is possible to have a project with a combination of Cyclone FIELD 360 pre-registered links and unvalidated VIS links (assumed links derived from setup position information). For each type of Link, VIS or Cyclone FIELD 360, they are accordingly processed to generate the validated links.

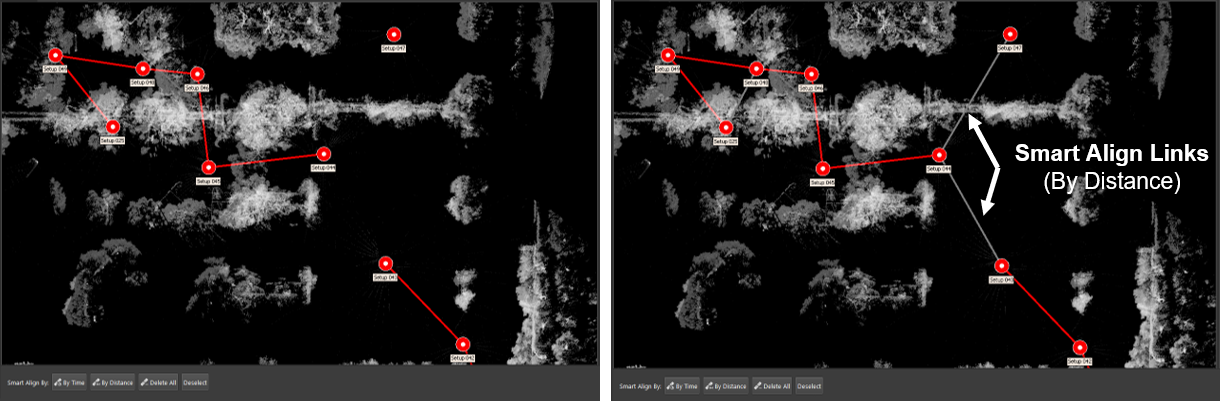

Smart Align

As mentioned in the “Registration Options” section, Smart Align is a feature that can shorten the time required for Auto Alignment by creating pre-defined links based on time or distance before importing the data

Smart Align can be generated based on time, distance, or both.

The geolocation data and VIS poses from the RTC360 scanner makes it easier for the user to modify bundles, combine job, and perform Smart Align.
