CW TruSpace User Interface

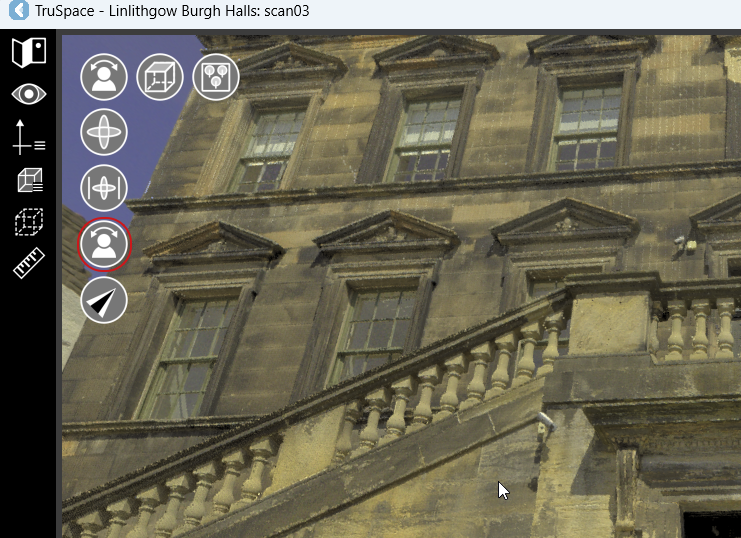

Primary Toolset

The primary tools are located in the upper left-hand corner of the TruSpace workspace.

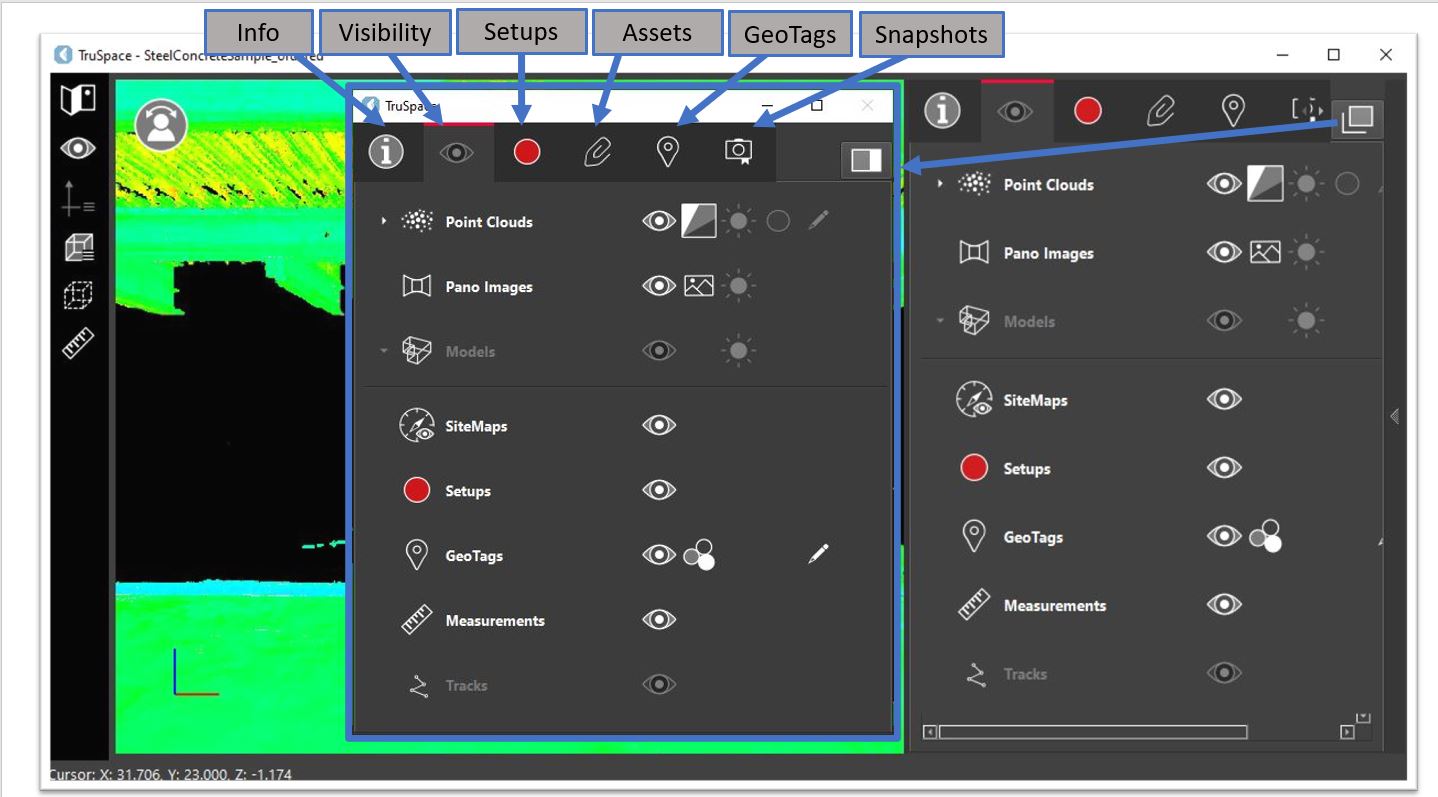

Panels

TruSpace includes a set of panels on the right-hand side of the workspace, providing various functions and information related to the project:

• Project Information

• Visibility

• Setups and Tracks

• Assets

• GeoTags

• Snapshots

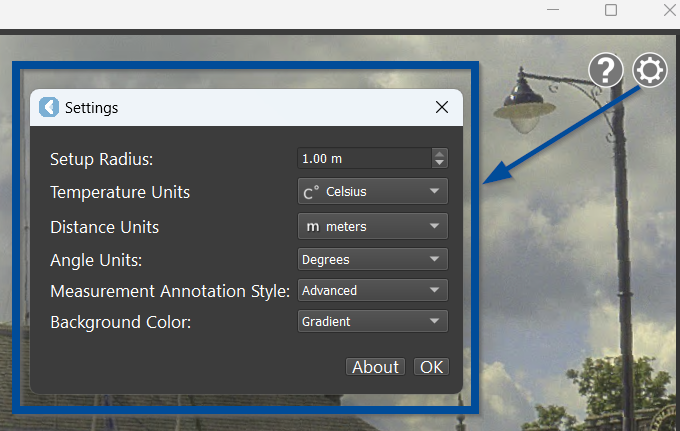

Viewer Settings

By clicking the gear button in the upper-right corner of the viewer, users can manage the following TruSpace settings:

• Setup Radius

• Temperature Units

• Distance Units

• Angle Units

• Measurement Annotation Style

• Background Color

Help Info

To learn more about TruSpace functionality, users can click the Help button in the upper-right corner of the viewer and access the TruSpace Explorer Help documentation.

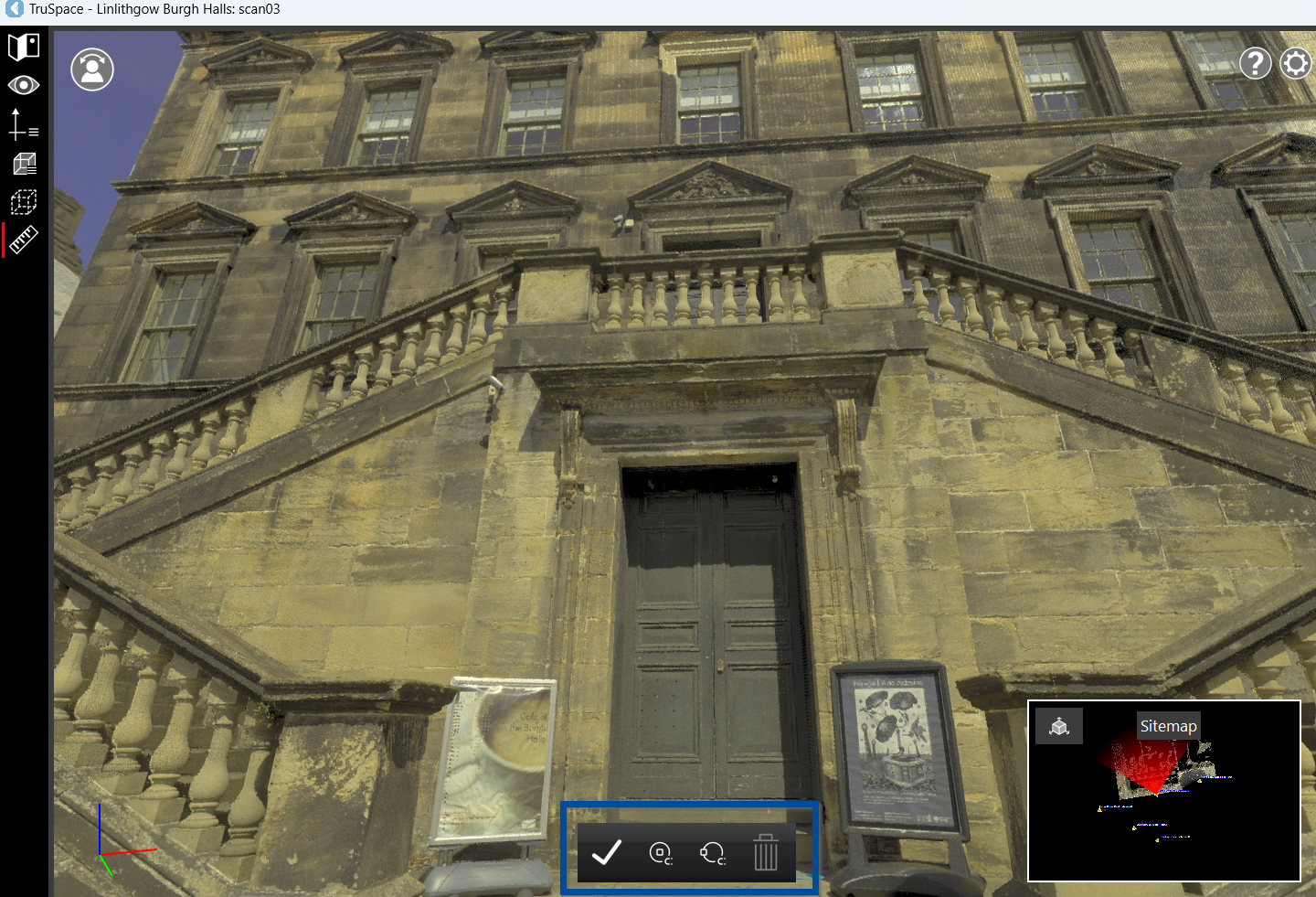

Floating Toolbars

Floating toolbars will display when creating measurements.
