CW TruSpace Setups and Tracks Panel

AUTOCAD PRO REVIT ULTIMATE

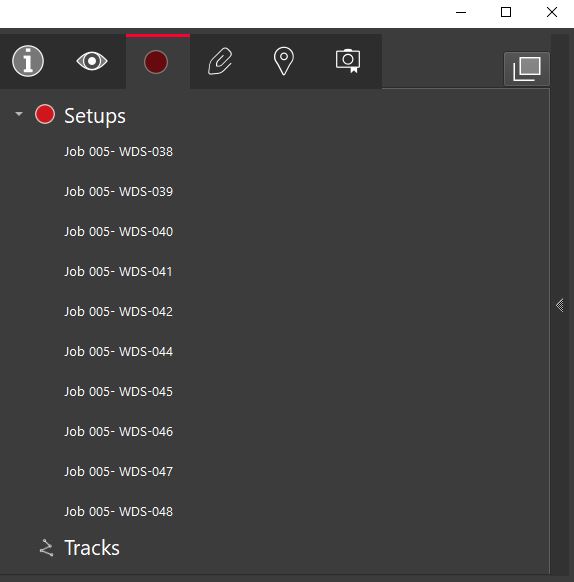

The Setups and Tracks panel contains a list of all of the Setups and Tracks available in the project.

When a Setup is selected, the associated pano can be viewed by clicking the Pano button next to it, if any. The Setup properties can viewed by clicking on the Setup Info button.

Double-clicking the Setup will navigate to the Setup location.

Notes:

  • Older projects do have pano images stored as setup properties. This feature is only available in projects published from Cyclone REGISTER 360 PLUS 2021 or newer.

  • Some older projects do not contain all Setup properties, leading to empty fields in the Setup properties dialog.

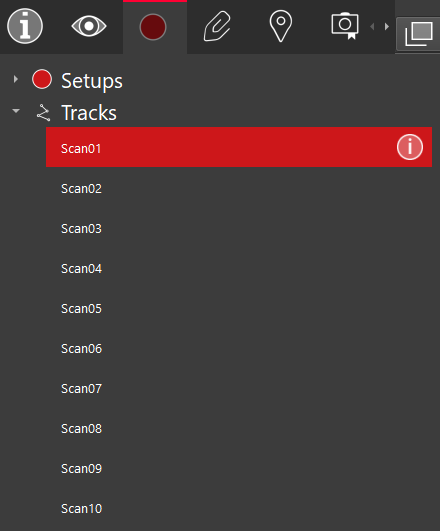

When viewing a mobile dataset, tracks are listed the same way as Setups. Panoramic images cannot be previewed for tracks as each track typically contains several images. The track properties can be viewed by clicking on the Info button.

Double-clicking a track will navigate to the first WayPoint in the track.

Note: Some older projects do not contain all track properties, resulting in empty fields in the Tracks properties dialog.
