By Plane allows the creation of a UCS by assigning a plane to either the X or Y axis without assigning a coordinate like By Pick in the workflow above.
To set a UCS by plane, the user should follow the steps below:
Name the UCS.

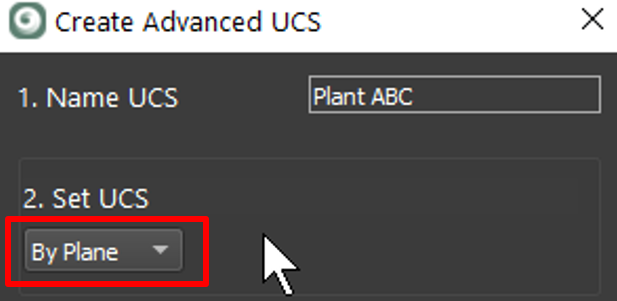

Select By Plane as the UCS creation method.
Optionally, fence an area to constrain plane creation.

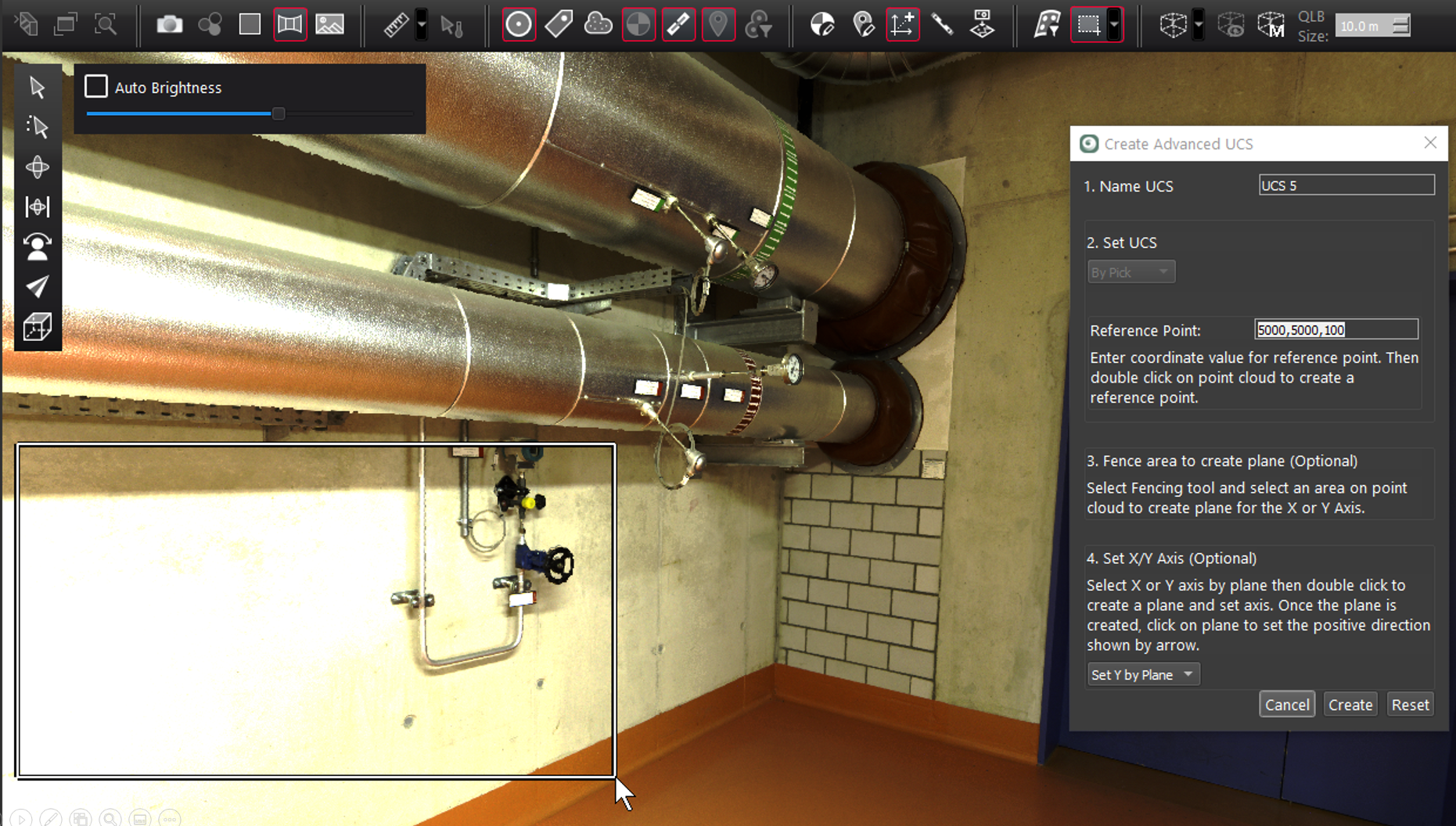

Use the fence tool to highlight an area for plane creation.
Select X or Y direction to be assigned to the plane.

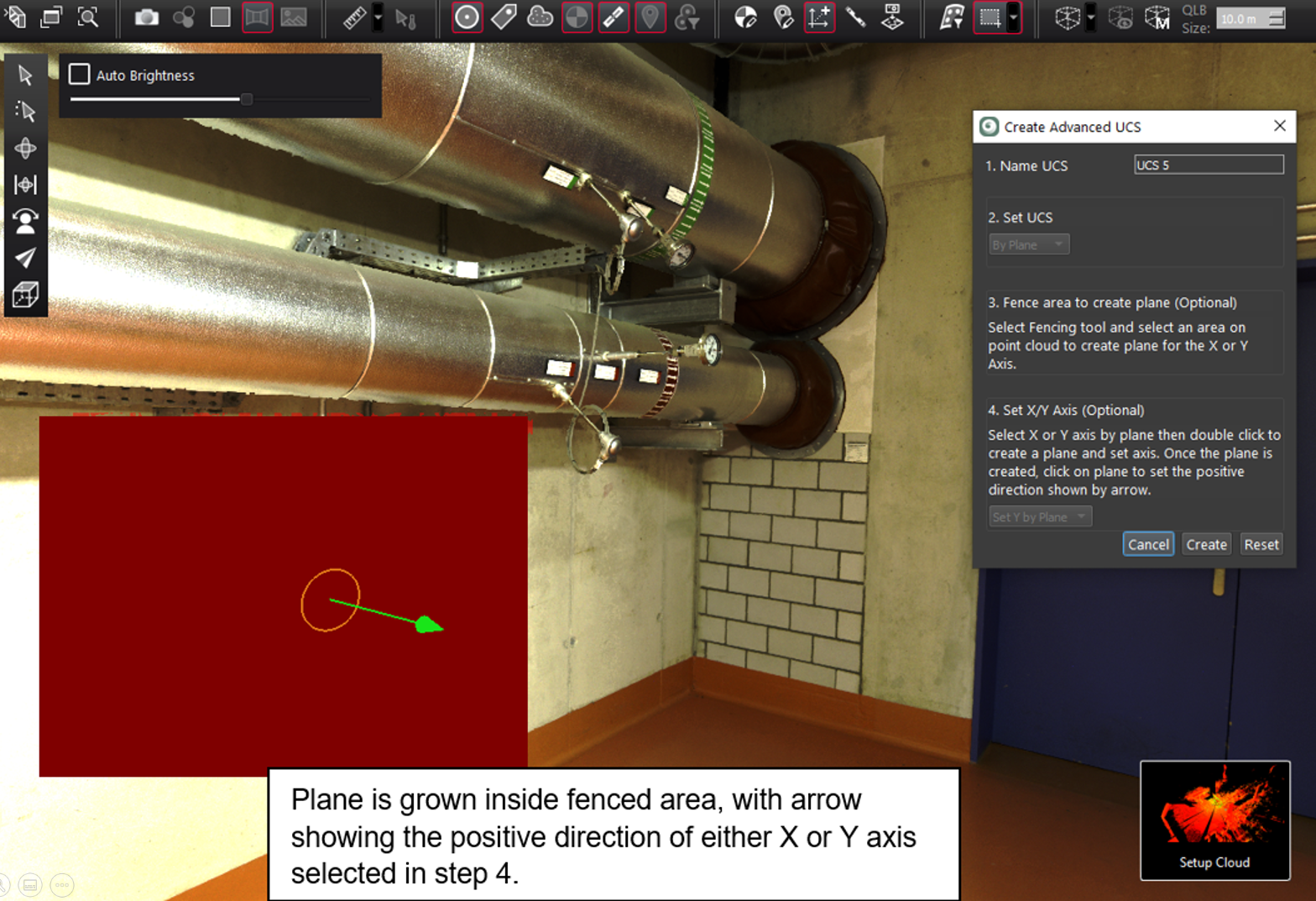

Double-click the surface to region grow a plane.
Click the plane again to set the positive X or Y direction as shown by an arrow.
Click Create to finish and create a UCS.
