Trajectory Report

Function

A Bullet Path Reconstruction Report can be created for the trajectories in the scene. The report lists the details of each trajectory: Name, Description, Horizontal Angle, Vertical Angle, Tolerance and any Attachments.

Procedure

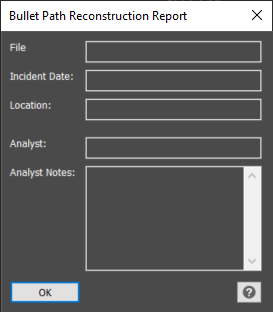

A report can be created whether the trajectories are analyzed or not but there must be existing trajectories defined. The dialog allows the user to enter case details to include on the report.

The entered data will be at the top of the report followed by a screenshot of the current view of the drawing. The analyst notes will be added to a section at the end of the report.

The trajectories are grouped together based on their reference plane(s). Any trajectories that have not bee analyzed will be listed separately.

The report includes the name, description, horizontal angles, vertical angles, and tolerance of each trajectory cone. An embedded link will be included for each attachment, displaying the file name. The attachment could be an image, PDF, audio notes, video, etc..
