Rectangle (3 Point)

Function

Draw a 3-point rectangle

Procedure

1. First left click defines a corner.

2. Second left click defines the rotation and width of the rectangle.

3. Third click defines the height and opposite corner to first click and completes rectangle.

Select the rectangle to modify its size, position and rotation with the grips.

Modifying Properties

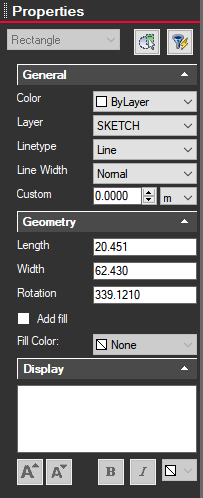

Clicking on a 3-Point rectangle will bring up information on the left side Properties panel. From here you can change the line color, layer, line type, width, dimension, add fill and text label.
