December 9, 2025 | Reality Cloud Studio
Improvements
New version of the Plant classification model
New Plant classification model introduces improvements to classification for industrial and plant environments. It delivers higher accuracy and broader coverage than the previous version.
A key enhancement is the expanded class map, now supporting 18 classes for plant-specific assets. This added granularity reduces misclassification and improves detection of critical components such as structural elements, addressing limitations found in the older version.
Current class map includes: Unclassified, Steel structure vertical, Steel structure horizontal, Steel structure diagonal, Steel connection element, Footing, Valve handle, Valve body, Pipe Bend, Pipe Cylinder, Pipe Connection, Pipe Reducer, Pipe flange, Pipe equipment, Pipe asset, Tank, Pipe instrument, Pipe special.

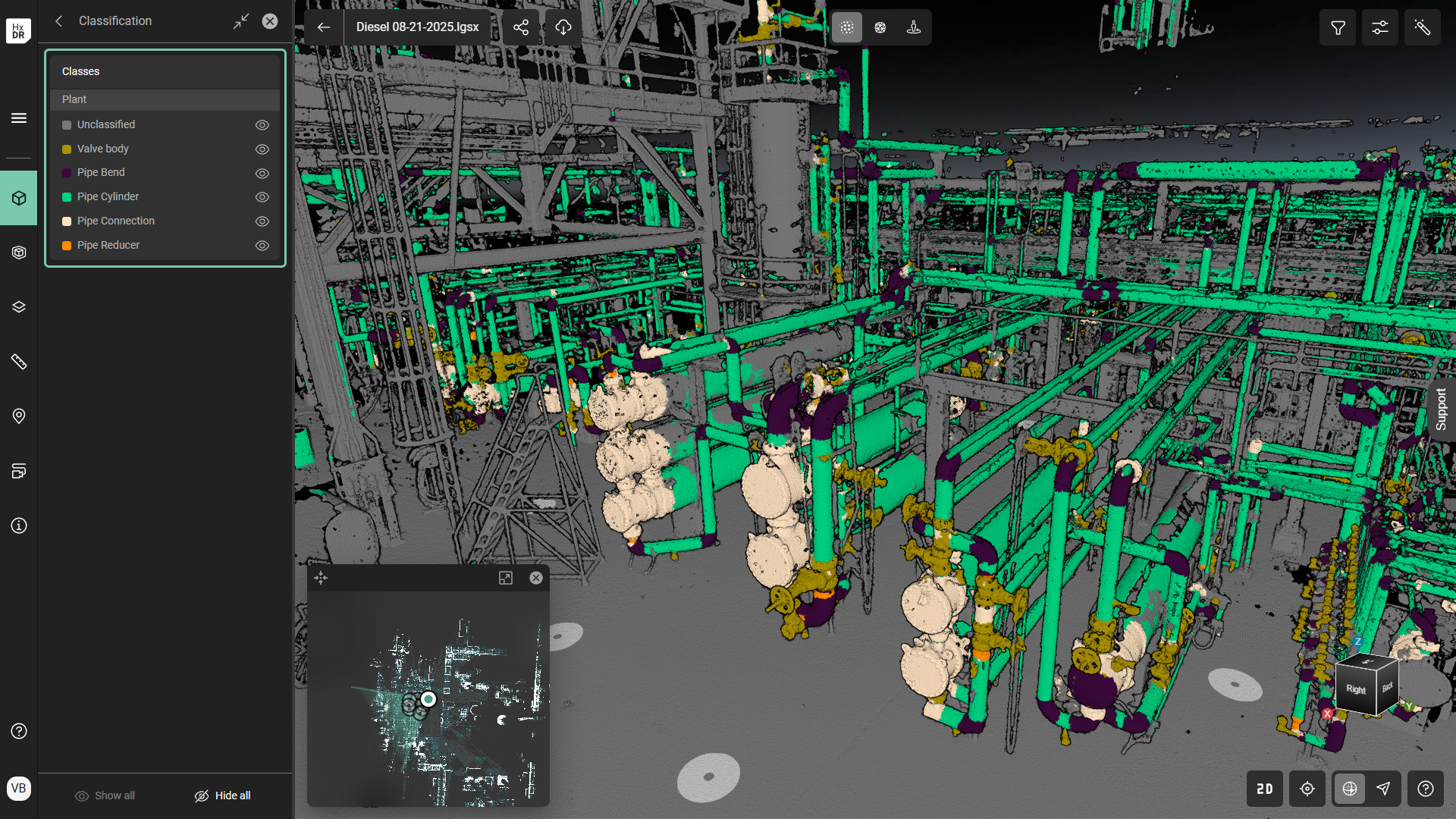

Previous version of Plant classification model with limited classes

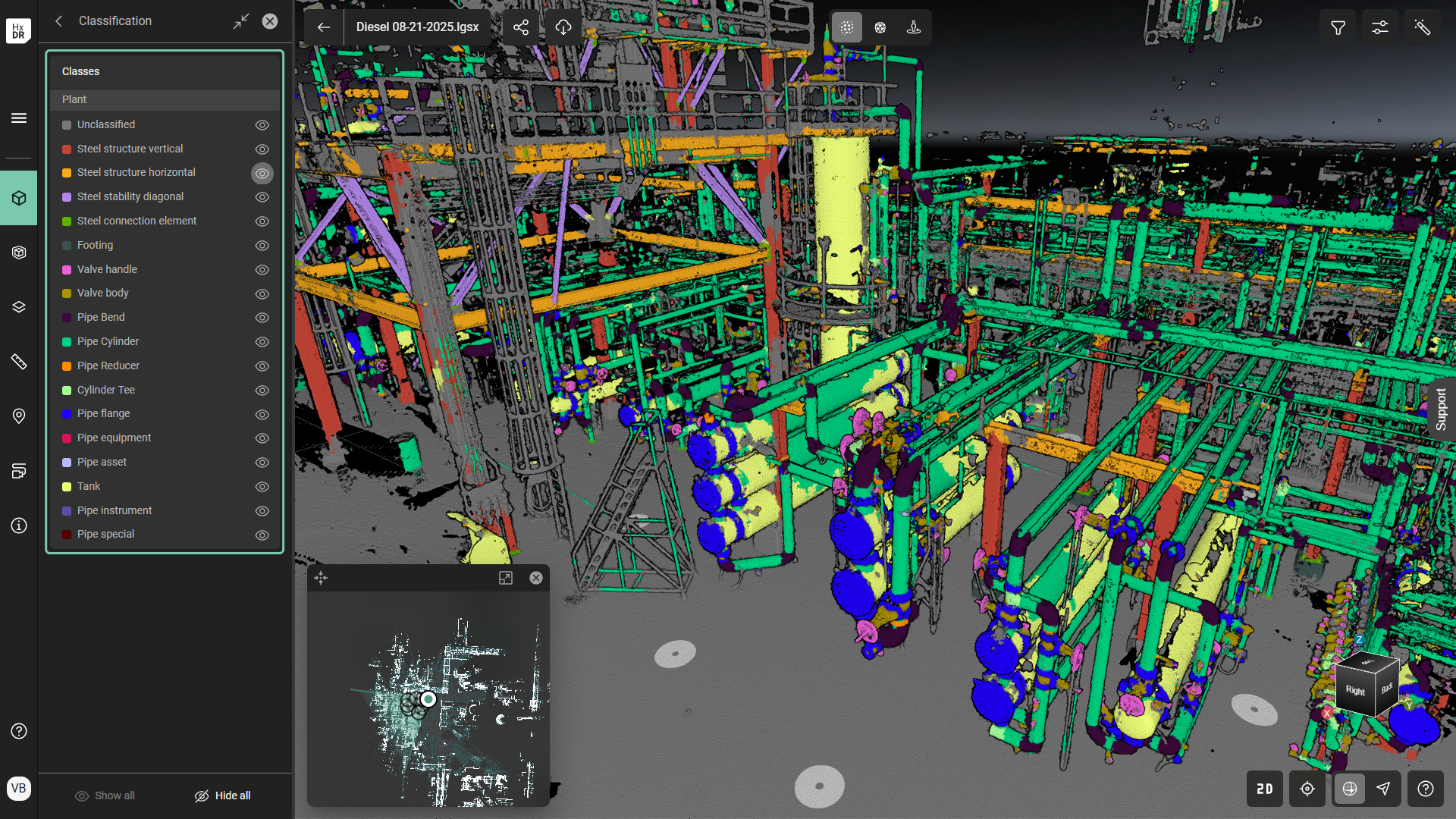

New version of the Plant classification model
Bug fixes
Switching from Editing a Geotag to the measurements was not possible. This is fixed.
On assets with levels enabled, the Site map was showing the full dataset after going to Pano and then back to Point Cloud. This was fixed.
An issue related to result of export pipelines not being available in some cases was fixed.
