December 11, 2024 | Reality Cloud Studio

What’s New

This is a weekly release including improved tools for measurement and minor bug fixes.

Measurement Tools

Users now have an additional set of measurement tools available to them when taking measurements within an asset. These tools allow the user to take more precise and reproducible measurements.

These tools can be activated standalone or together. The tools operate independently of the Advanced details universal toggle in the measurement list.

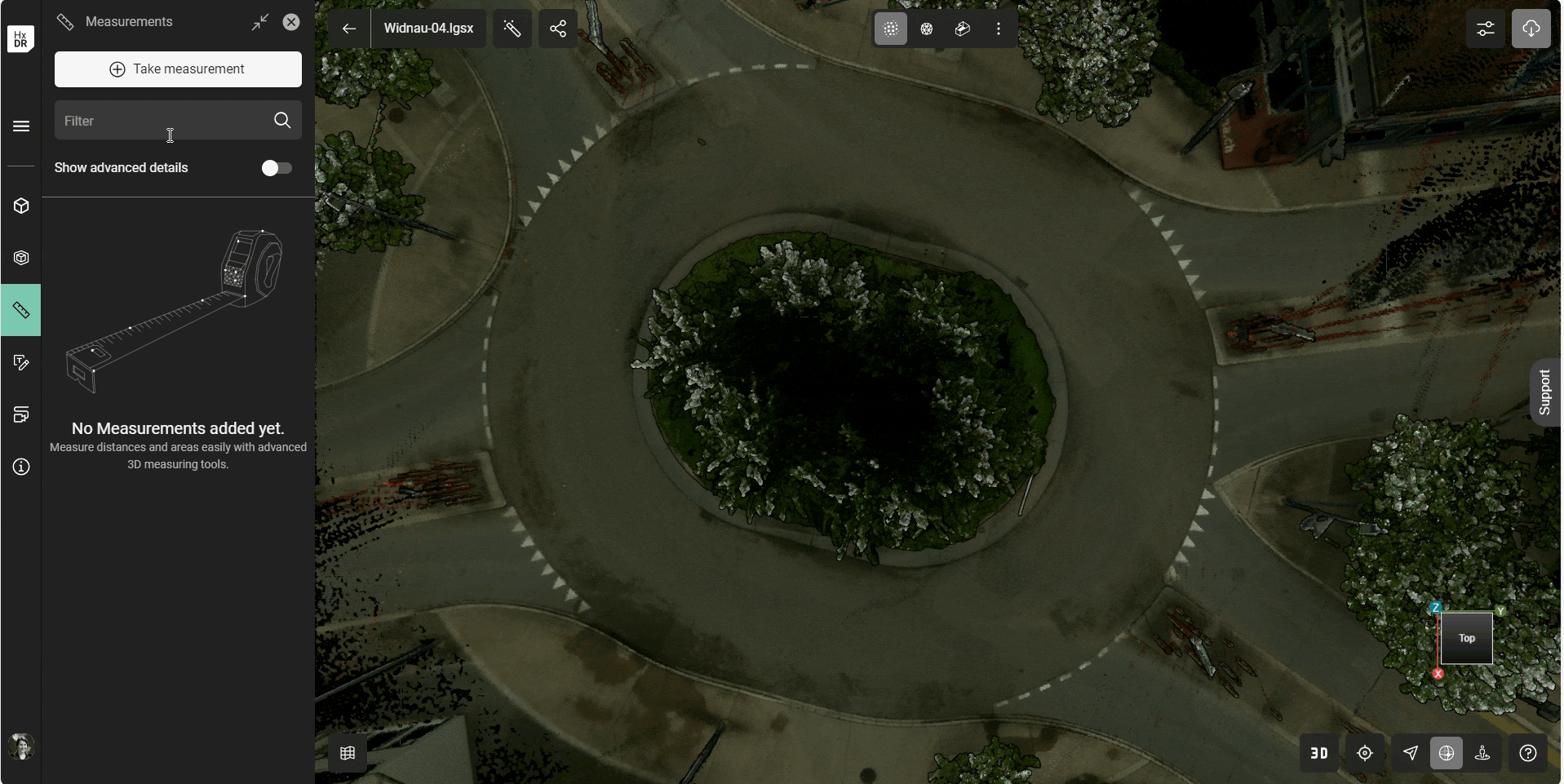

Magnifier

Activate the magnifier option to be presented with a zoomed in view during point picking appropriate for precisely selecting on edges, corners and details.

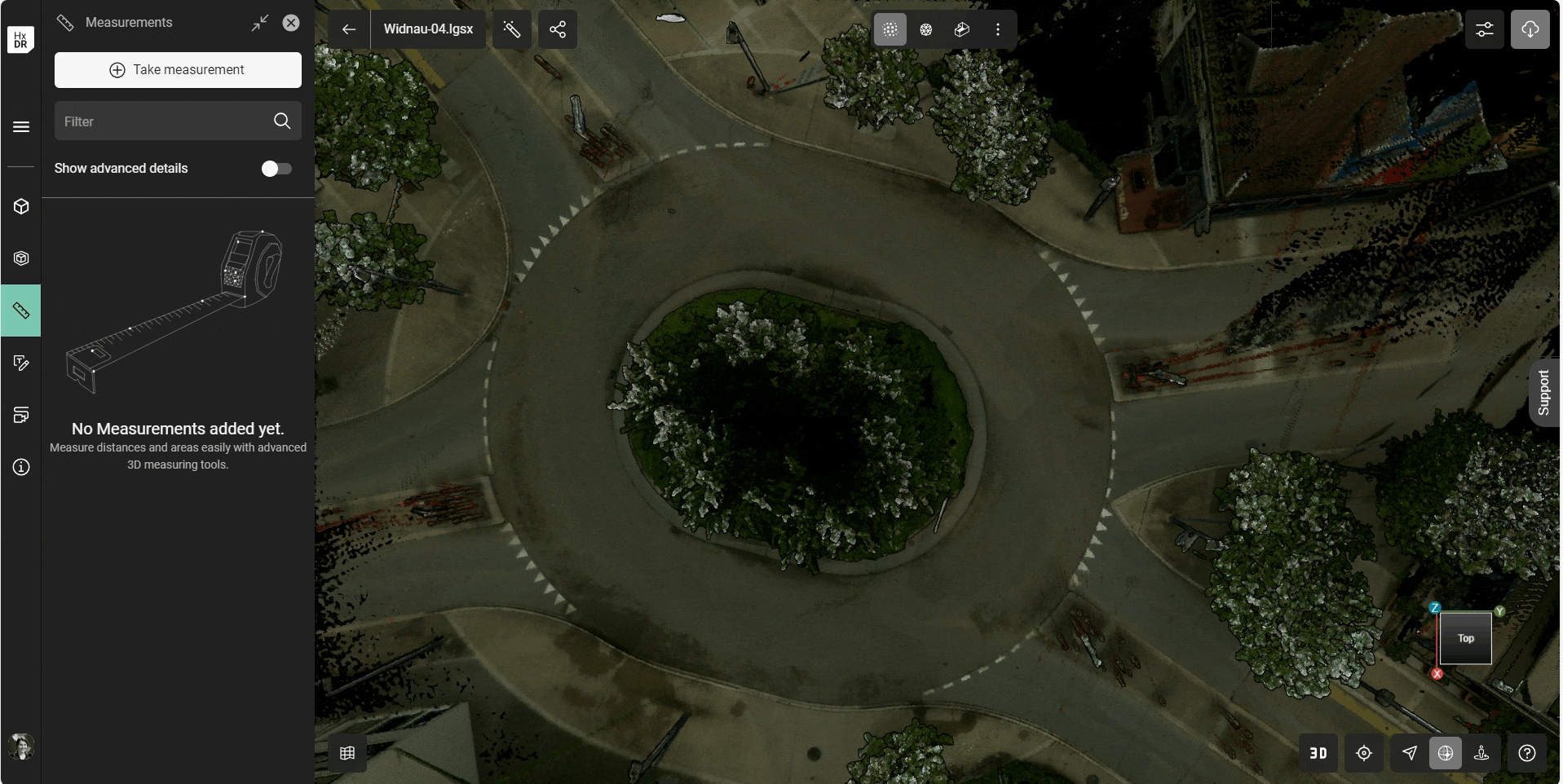

Cursor coordinates

Activate the Cursor coordinates option to show the x, y, z coordinates of the cursor in real time. Upon completing a measurement the coordinates of each point, the coordinates will be displayed in the scene.

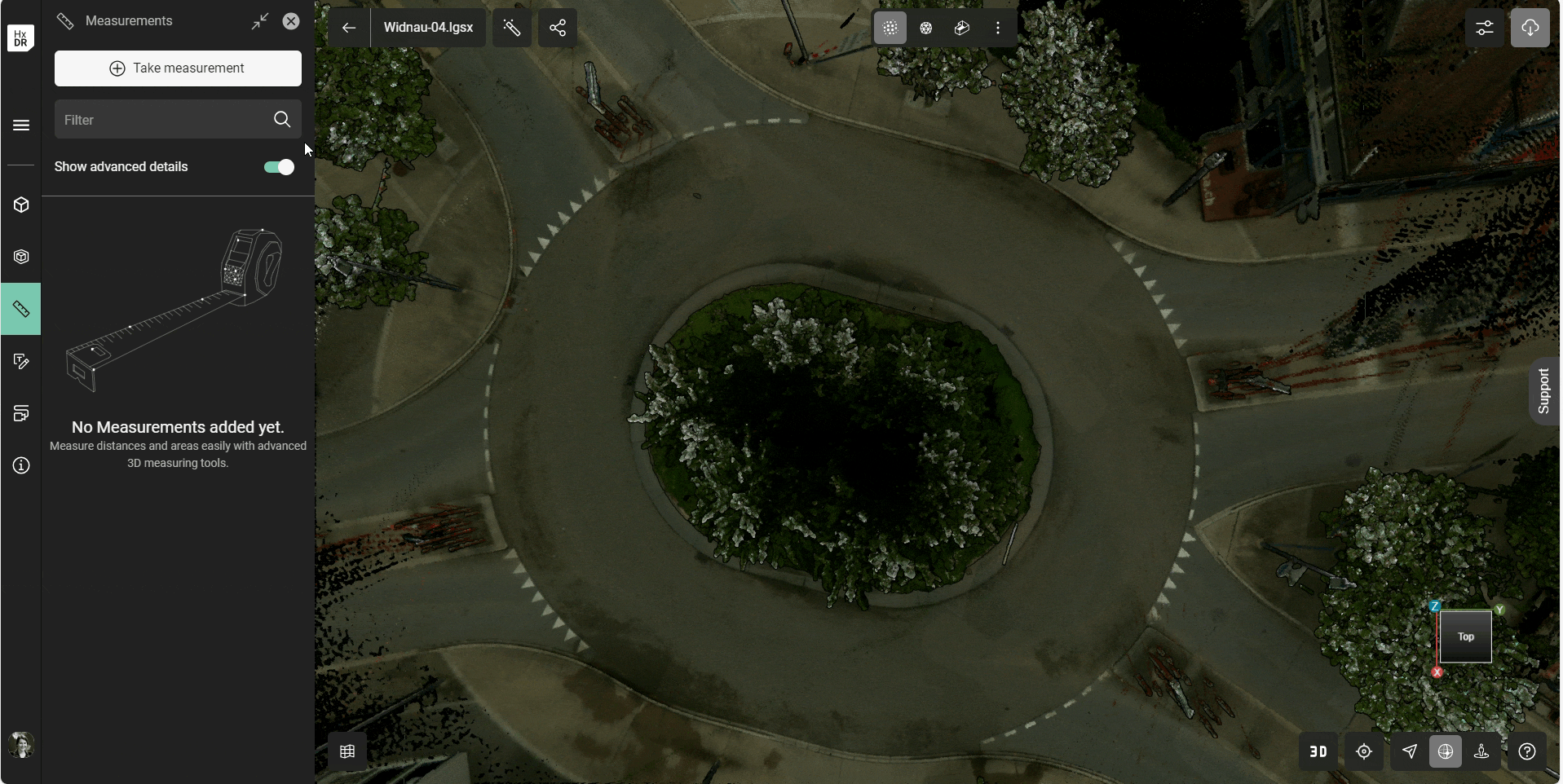

Advanced details

Activate the Advanced details option to show the x, y, z coordinates of the cursor in real time. Upon completing a measurement the coordinates of each point, the coordinates will be displayed in the scene.

Bug Fixes

• Firefox deployed a fix which addresses incompatibilities with Reality Cloud Studio and is now a recommended browser again.

• Users can now see that an asset is processing when viewed in the asset list view rather than only in the tile view.

• Fixed a bug that could cause the limit box to remain applied to the data even after deletion.

• Fixed a bug that could cause instability of user-selected asset coloration in visual comparison scenes when toggling on/off different assets.
