Evidence Legend

Prev Next

Function

Evidence Legend allows you to insert a legend in your map which lists all evidence markers in a table.

Procedure

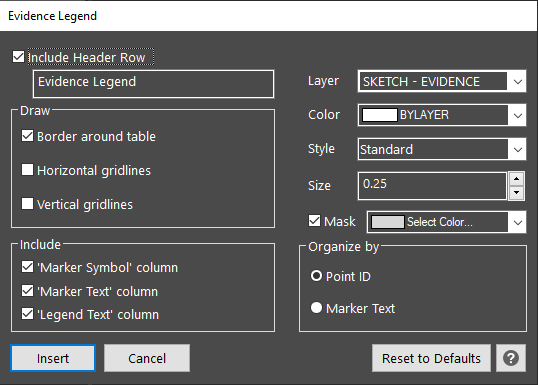

Launch the command while in model space to see the Evidence Legend configuration dialog.

Select the options.


Include Header Row: Select this option to include a label at the top of your legend. Enter the text you would like used for the title. The default "Evidence Legend" is entered for you.

Draw

Draw border around table: This will draw a rectangle border around the table.

Draw horizontal gridlines: This draws lines between rows.

Include

Include "Marker Symbol" column: Select this to include an image of your evidence marker.

Include "Marker Text" column: Select this to include the code added to your marker.

Include "Legend Text" column: Select this to include the "Legend Text" defined in the evidence marker dialog.

Layer: Set the layer you would like the table drawn on. The default "Evidence Legend" is selected for you. Enter

Color: Set the color that will be applied if you create a new layer for the legend. This will affect the lines and text that are created.

Style: Set the text style that will be used to create the legend.

Size: Set the text height that will be used to create the legend.

Organize by

Point ID: Orders the evidence markers in the legend in numerical order and alphabetical order based on their point ID.

Marker Text: Orders the evidence markers in the legend in numerical order and alphabetical order based on the marker text.

OK: Closes the dialog and prompts you to position the legend.

Cancel: Closes the dialog and creates nothing.

Reset to Defaults: The values and options in the dialog will be set back to default.

Help: Opens this article.

When you select your options and pick "OK" you will be prompted to select a location for your evidence table:
