2D Polyline

Prev Next

Function

Draw a connected sequence of line segments

Procedure

  1. Left click to start polyline and continue clicking for additional polyline segments. You can also type in an exact line length to be drawn in the direction of the cursor.

  2. Right click or press Enter to end the command.

  3. After three or more vertices are defined, type C in the command line to create a closed polyline shape.

Modifying Properties

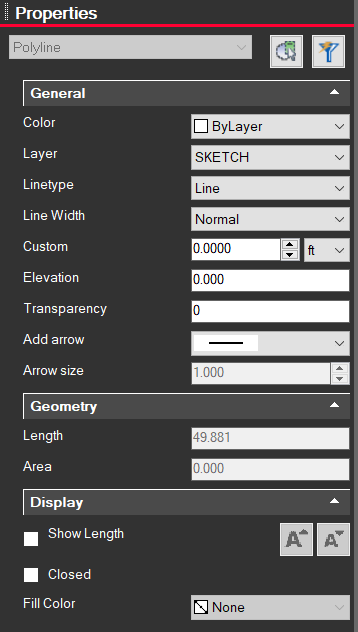

Clicking on a polyline entity will bring up information on the left side Properties panel. From here you can change the color, layer, line type, width, etc.
