Create Limit Box

Prev Next

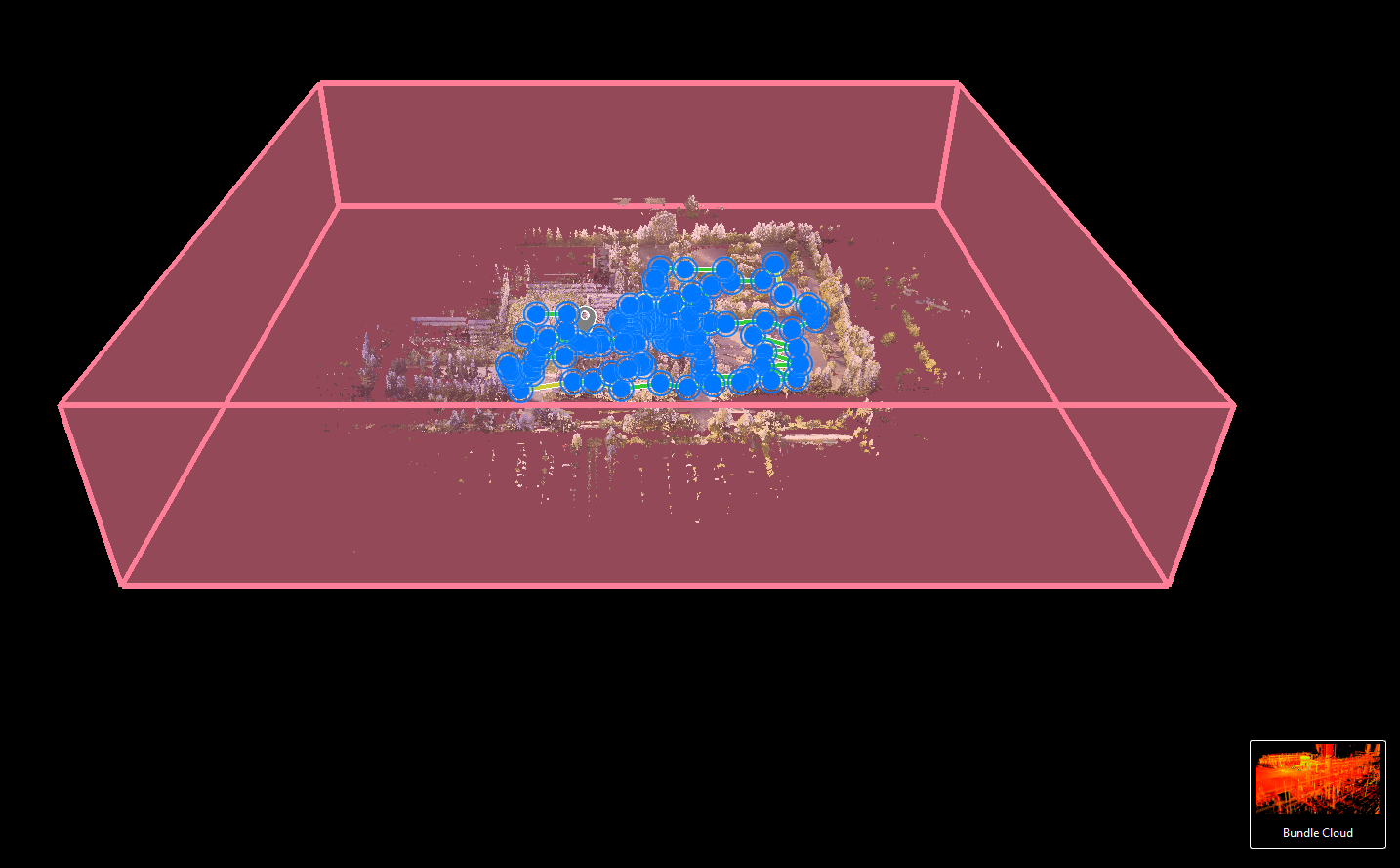

Clicking Create Limit Box places a temporary clipping box that is vertically aligned to the Z axis and fits the Setup/Bundle extents.

  • If there is an active UCS, then the Limit Box is aligned to the UCS.

  • The current box can be shown or hidden using the command in the Limit Box tools.
