6.1.0 | Cyclone FIELD 360 Release Notes

Prev Next


September 18, 2025

What’s New

This is a minor release including improvements such as new Limit Boxes and various bug fixes.

Limit Boxes

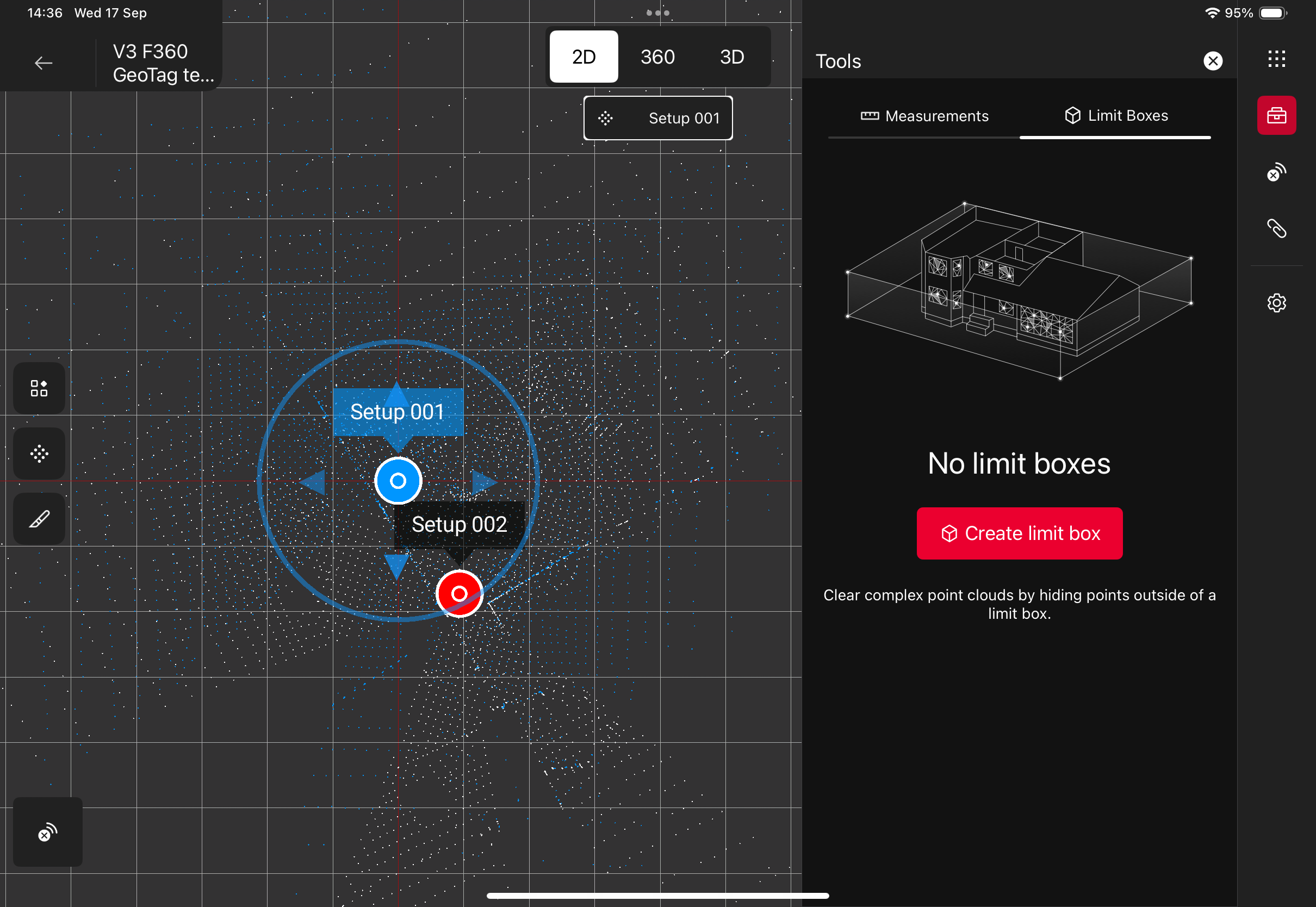

New Limit Boxes tab in the Tools Browser

We’re introducing Limit Boxes, a new feature that allows you to define boundaries for your Point Clouds. Whether you’re working on large-scale data or focusing on specific areas, Limit Boxes help you isolate and refine your work with ease. This feature is perfect for keeping your projects organised and efficient.

The Limit Box Manager is in the new Limit Boxes tab of the Tools Browser.


Limit Box Manager in Tools Panel

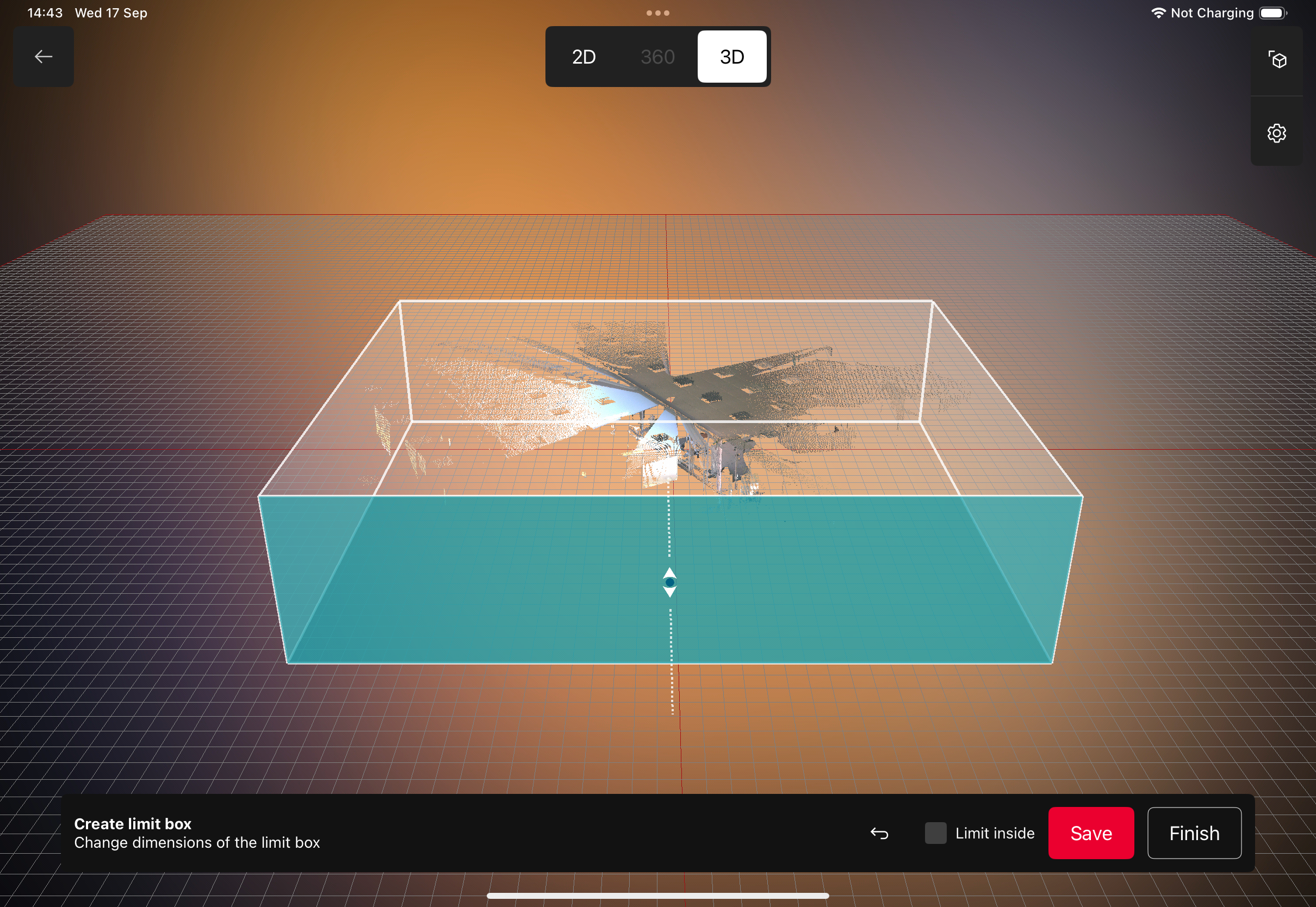

Limit Box creation 3D view

You can choose to hide the point cloud inside or outside the box.

Additionally, you can now export your cleaned data to E57, enhancing data sharing.

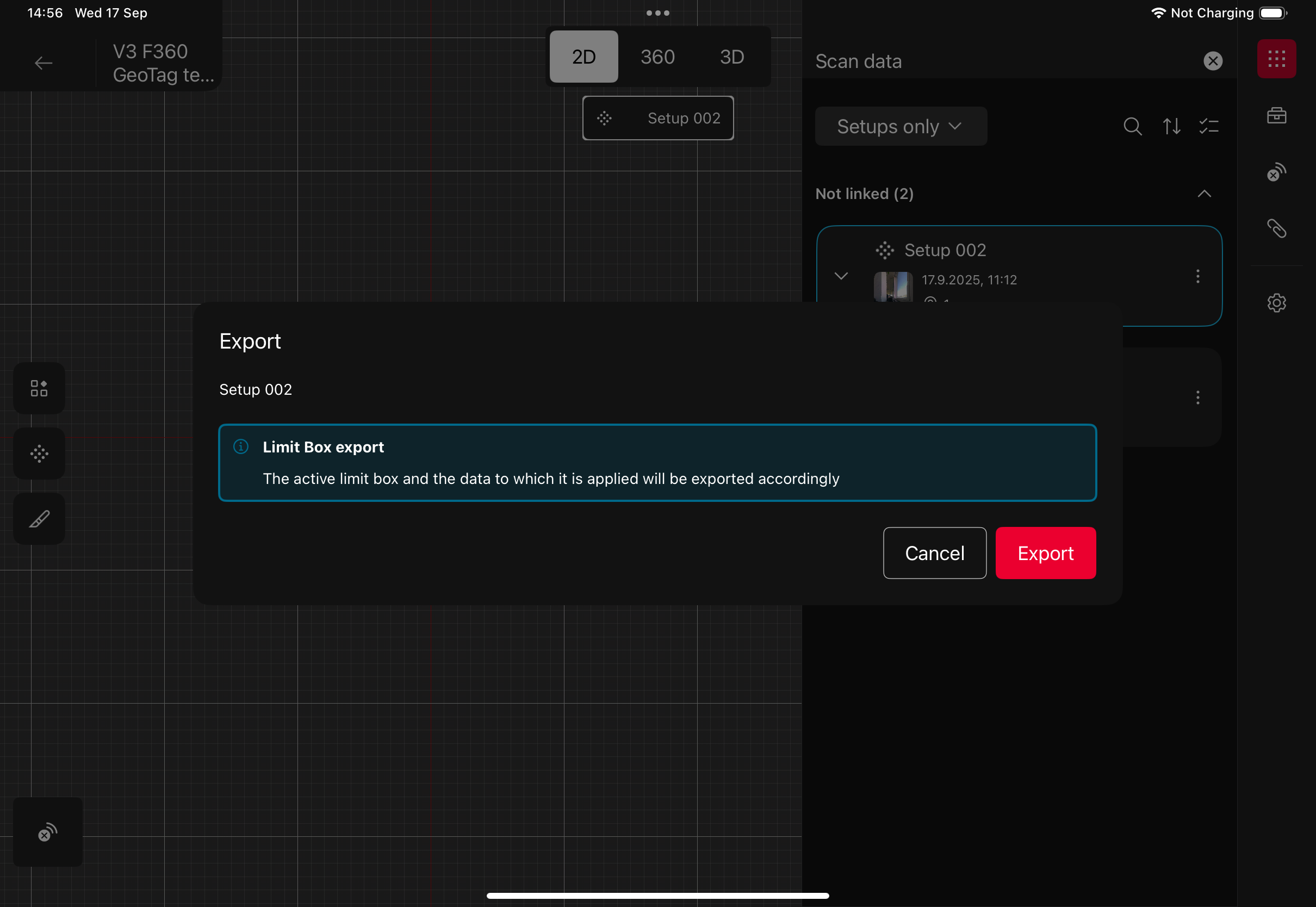

Export to E57 with active Limit Box

Please note: Limit Boxes from Cyclone FIELD 360 are not supported in Cyclone REGISTER 360 PLUS in this release.

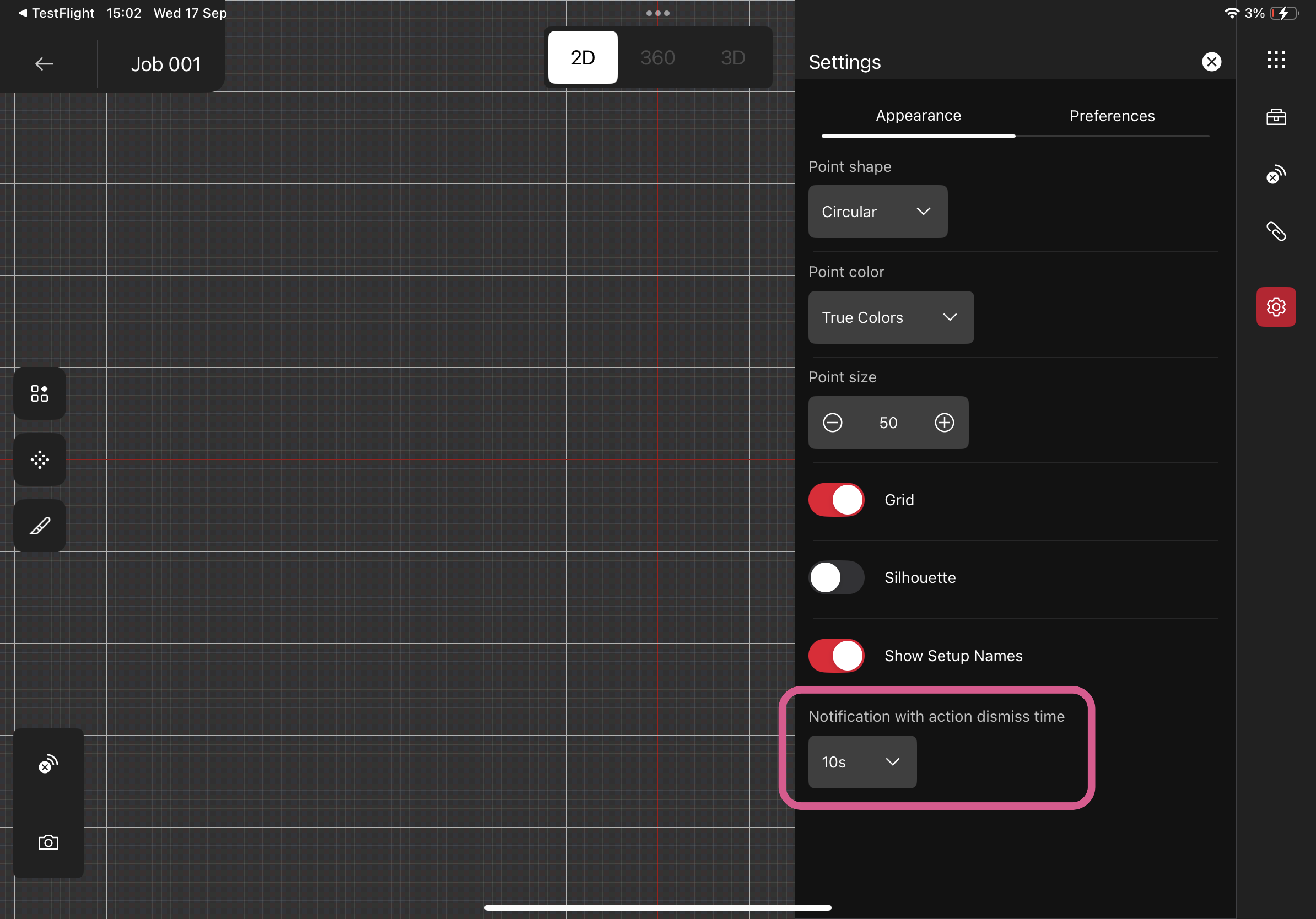

Our latest update includes additional settings for notifications with actionable buttons such as Quick Link, Pre-Align and others.

Users can now customize the duration of notifications to 10, 30 or 60 seconds or keep them visible until dismissed. This ensures you never miss the opportunity to run a Quick Link on the last pair of scans.

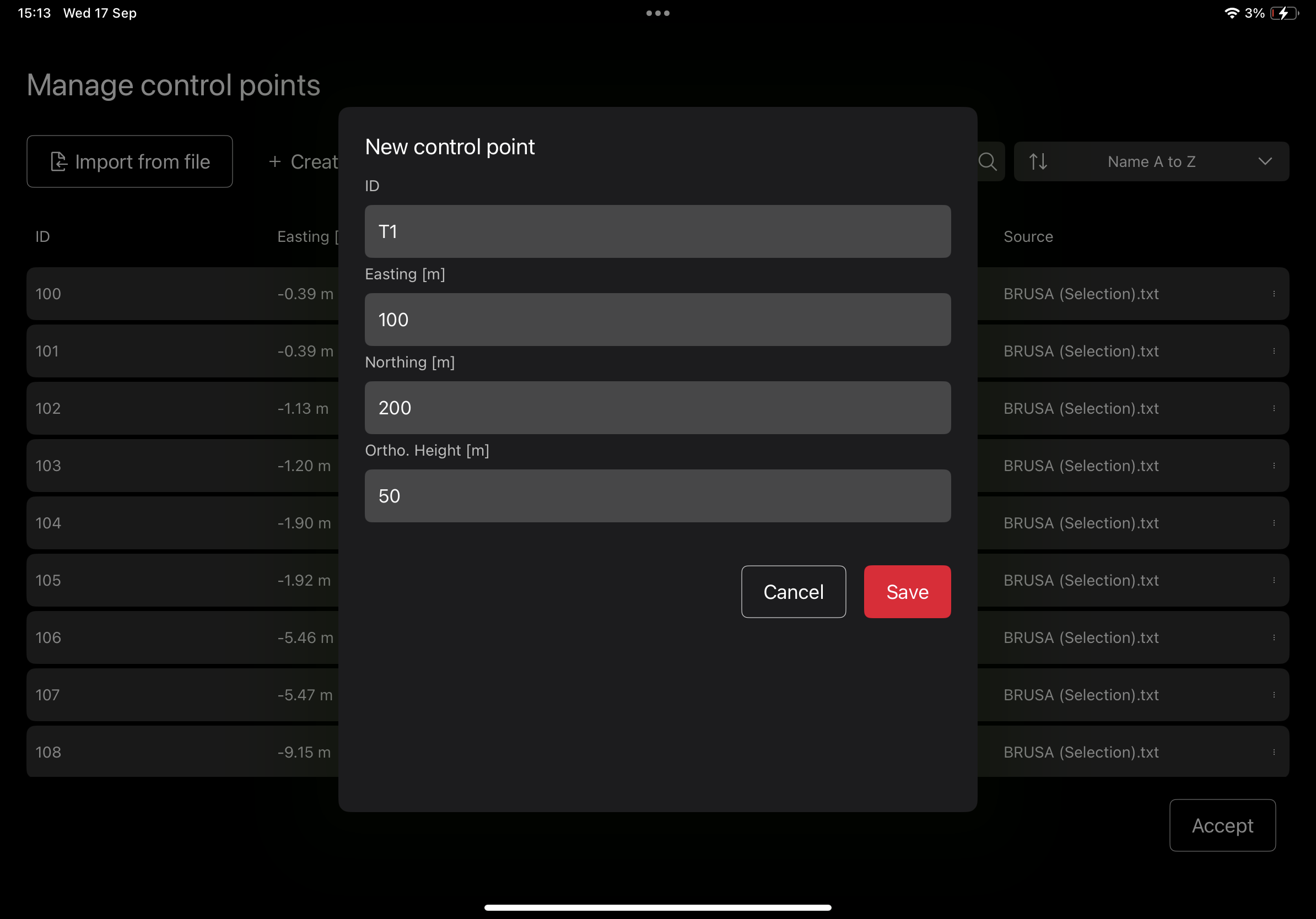

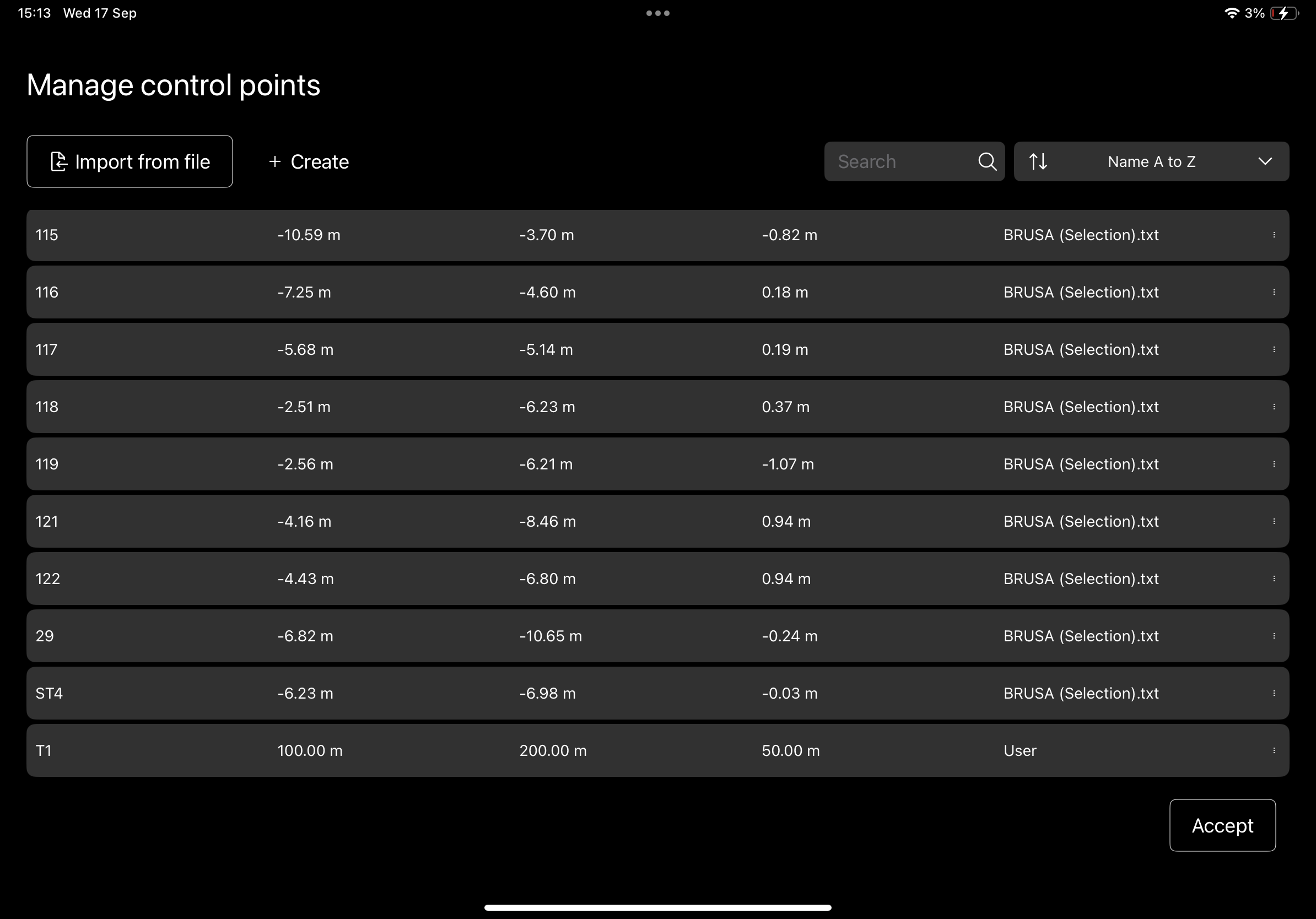

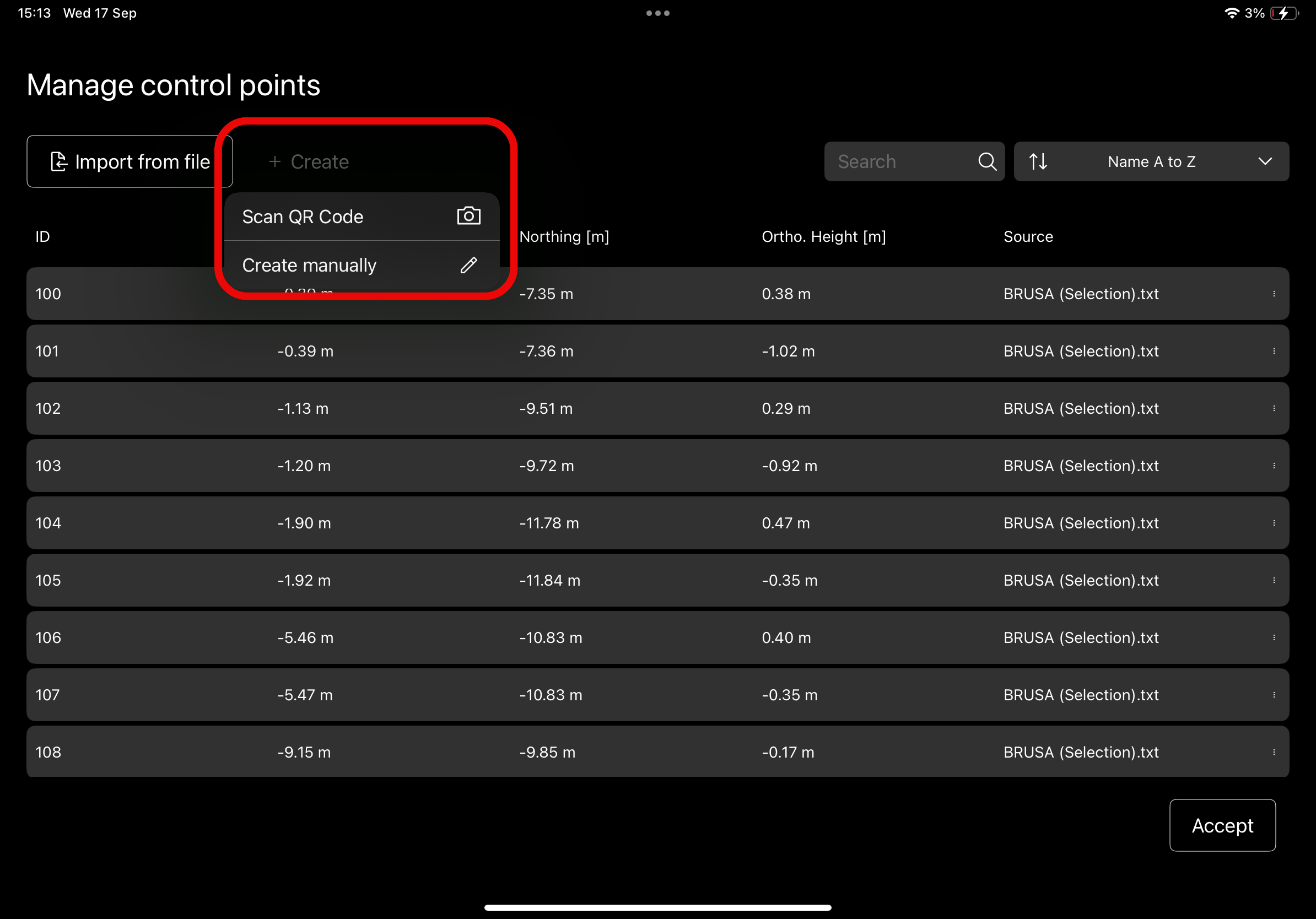

Manual entry of control point coordinates

This new feature allows you to input control points directly without the need to import a control file or type in additional control points into a previously imported control file.

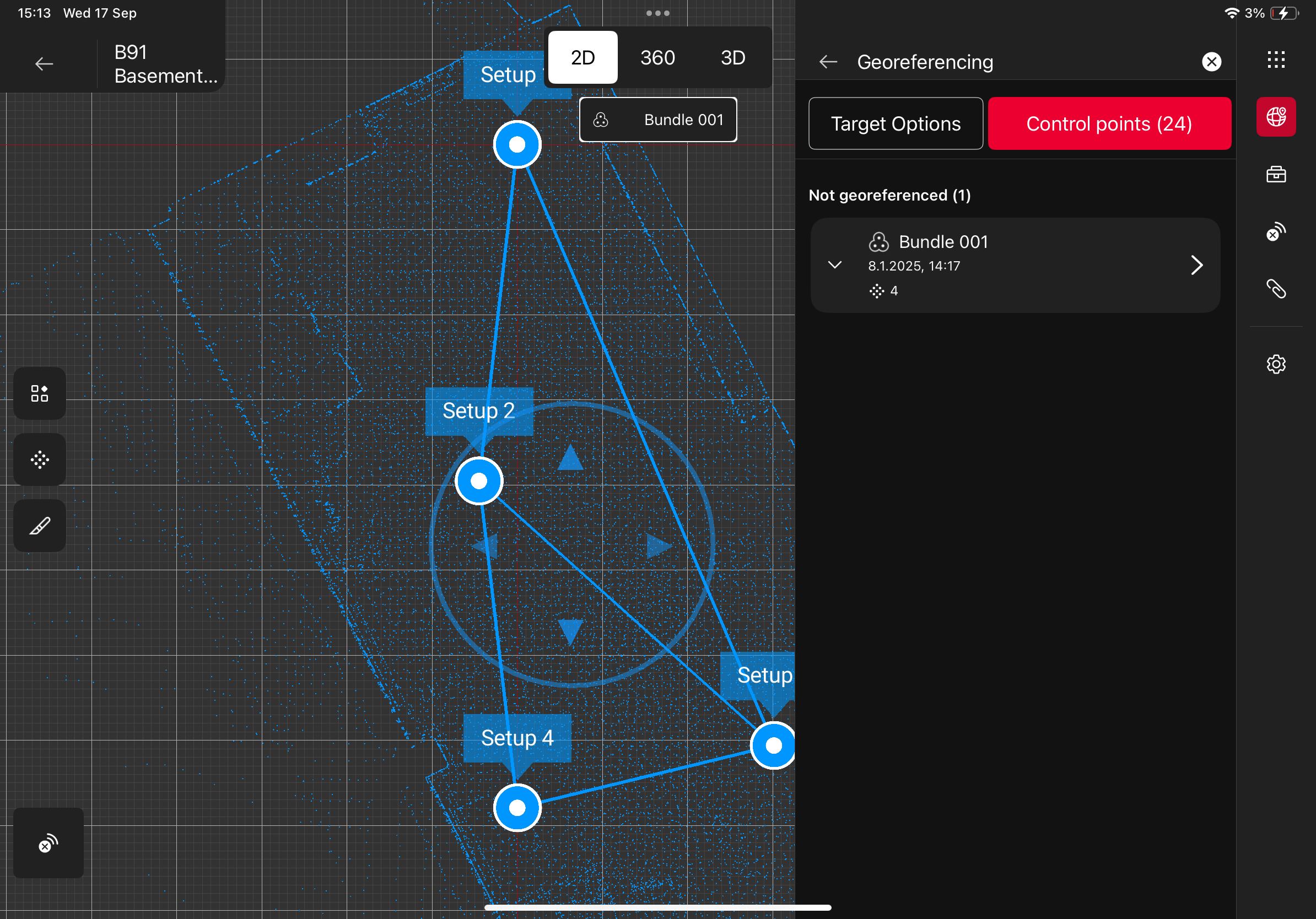

The option is available in the Control Points tab of the Georeferencing panel.



Improvements

  • E57 files now include bubble views in third-party applications.

  • Various bug fixes

Compatibility

Leica Cyclone REGISTER 360 PLUS 2024.0.1 (or higher) or Leica Cyclone version 2023.1.0 (or higher) to support data import.

Leica Cyclone REGISTER 360 PLUS 2025.0.0 (or higher) is required to support the Georeferencing workflow.

Android tablet or phone running on Android 10.0 - 15 on 64-bit ARM architecture with 64-bit operating system and at least 4GB of RAM.

  • Recommended devices:

    • Samsung Galaxy Tab S8 and S9

    • Samsung Galaxy S23, S24 series

Please note: Android 16 is not supported

Apple iPad or Apple iPhone running on iOS 17 or higher with 64-bit operating system and at least 4GB of RAM.

  • Recommended devices:

    • iPad Pro 11 (2021, 2022, 2023, 2024) and iPhone 13, 14, 15, 16 series.

      For first generation BLK360 scanners, iOS devices are recommended.

Licensing

Leica Cyclone FIELD 360 6.0 requires an active Cyclone REGISTER family or Cyclone FIELD 360 license for activation.

Leica Cyclone FIELD 360 Pro is required for use of the plug-ins (FF/FL and Quick Plan).
