This tool aligns a steel element on the extremities of 2 other steel elements.
Select the 2 steel elements as reference points.
Select the steel element that has to be aligned.
The steel element will be aligned and stretched to the nearest extremities of the ‘reference’ steel elements.
Validate the preview with ENTER.
The alignment process is made according to the axes of the steel element: they must be set up appropriately.

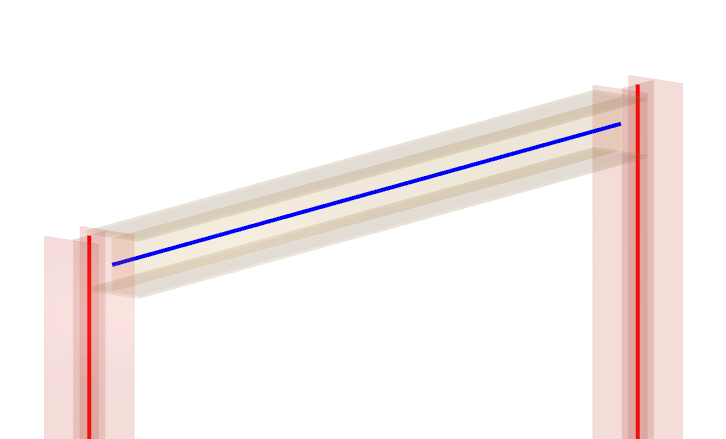

Default axes

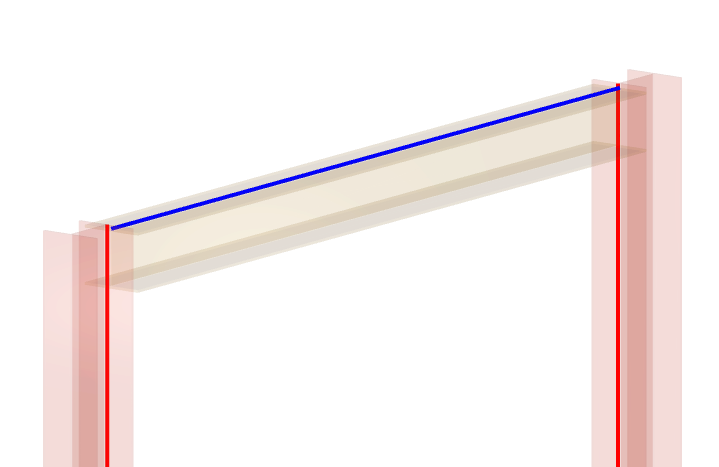

Correct axes setup

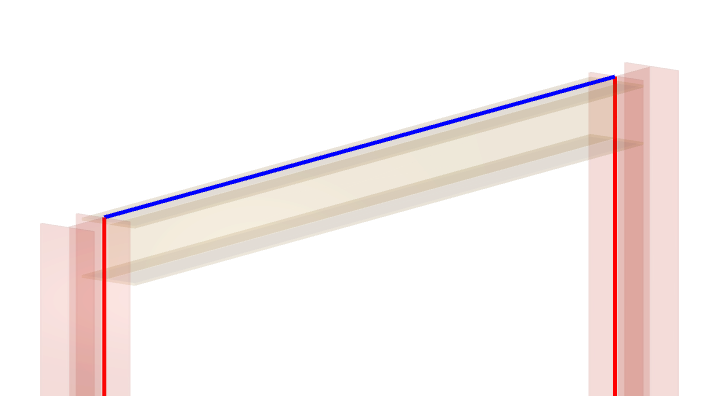

After alignment
