Basic Tutorial | Align clouds according to surveying targets

Prev Next

Open the file AlignTargets.3dr (download).

This file contains two clouds to align according to surveying targets, Cloud 1 and Cloud 2. Show both clouds, then select "Cloud 2" and go to N Points Registration.

The screen is automatically divided into two parts:

  • on the left, there is the selected cloud (the one that will move)

  • on the right, the other one (the one that will not move)

Deselect the option Apply Bestfit as we want to do an alignment according to targets only.

In the Define constraints section, you can select the option Constraint rotation axis and choose Z if you want to be sure to retain the the Z orientation as the Z axis is already aligned with the vertical in both clouds.

Uncheck the others options to allow translations along the three axes.

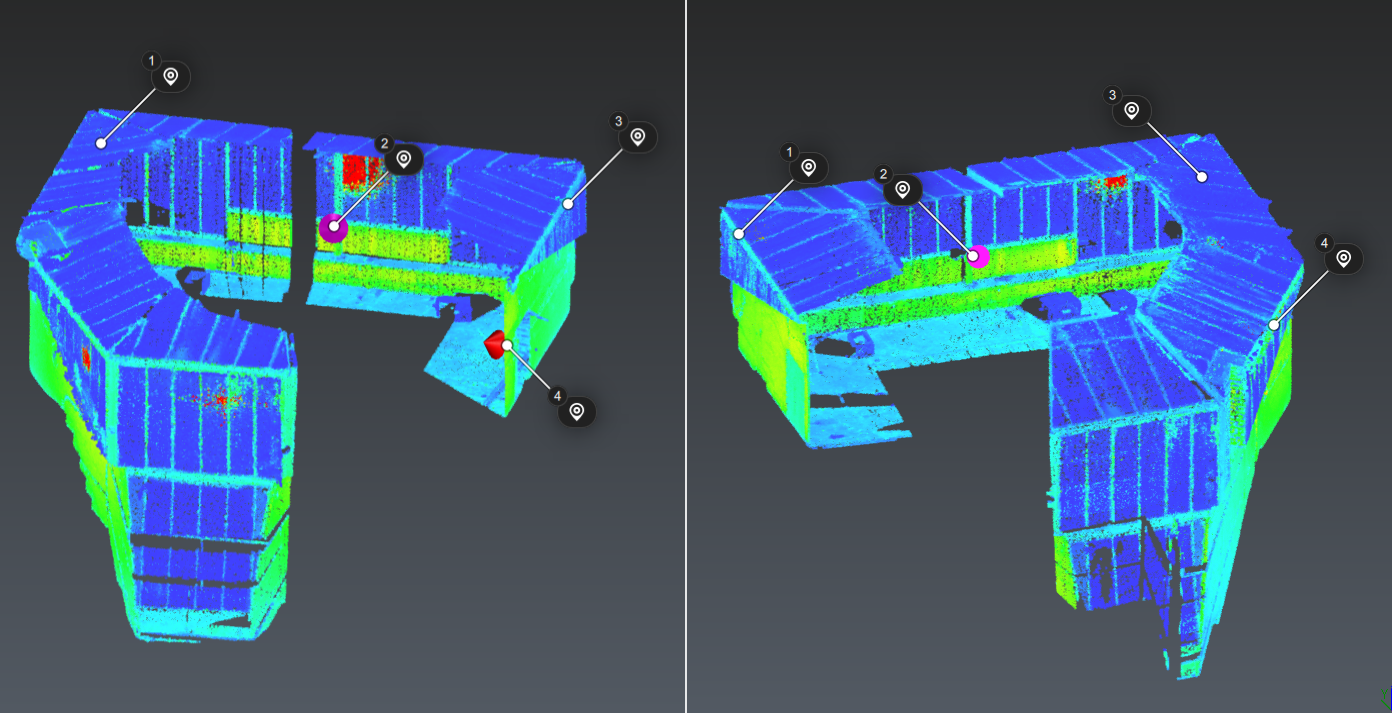

Example of picked points

In the selection point toolbar, select only the option Surveying target and set a checkered pattern target with a Diameter of 0.15.

Identify the four targets in the point cloud on the left, as shown in the previous image, then click on each of them. The point created in this way will automatically become the centre of the target.

Find the corresponding targets on the other point cloud (right view) and then click in the same order as you did in the left-hand view.


Please note that you can also click on a target in one point cloud (left-hand view), then on the corresponding target in the other point cloud (right-hand view), and so on.

Once the four couples of points have been clicked, you can click Preview.

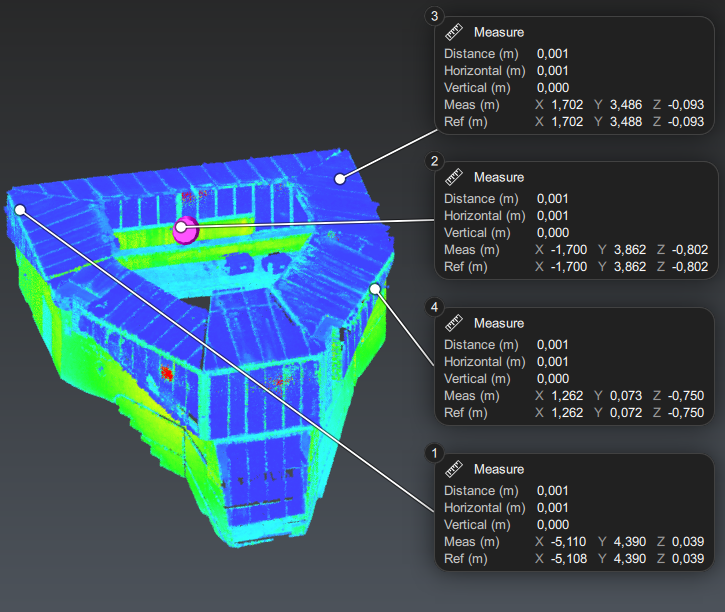

Expected result

One measure per couple of points will be created in the right view in order to see deviations.

If you notice a couple with a deviation that differs significantly from the other pairs, you can cancel the alignment by clicking Reset.

Select the mode Vertex / End and click on the point corresponding to the biggest deviation (left or right view) in order to inactivate this couple of points. The arrow on the target becomes gray instead of red. Click on Preview again. The deviations should be lower and the alignment done with only 3 couples of points.

Screenshot 2026-11-13 104931.png

Click OK to validate. Both clouds are now aligned: you can use the command Merge Clouds in order to merge them. Note that the color of your cloud might change during the merge because the cloud contains both texture and inspection information. You can select the cloud to restore the Intensity representation then go to Edit Colors to take only one color level.

If you make a mistake during the selection of the target, you can reverse step by step by pressing the DEL key.
