Review and Optimize | Assistant Panel

Setup \ Bundle Rotation

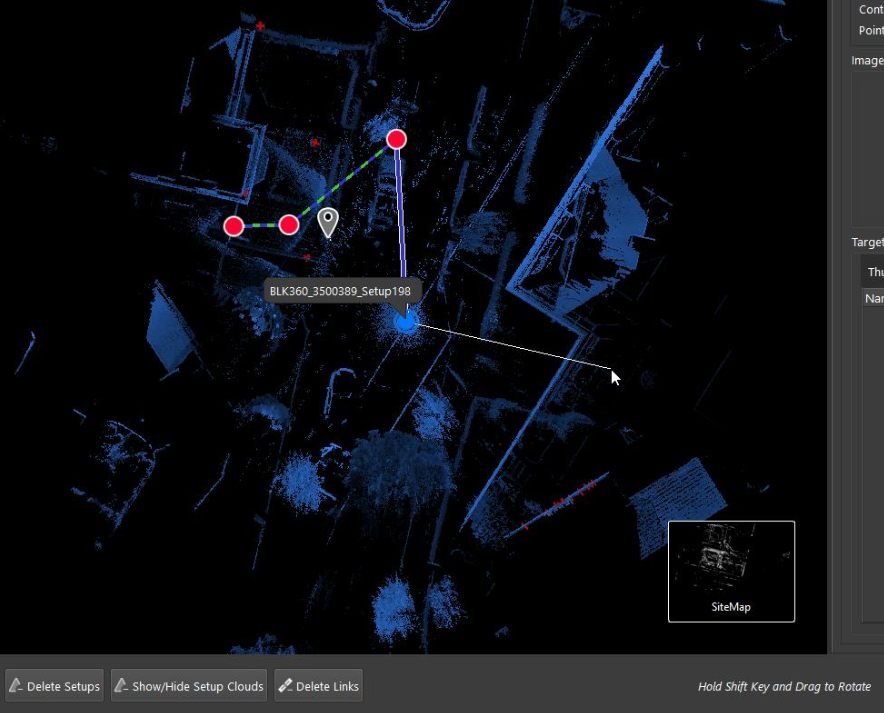

To rotate a setup or bundle click on a setup in the SiteMap view then hold down the shift key and drag the mouse away from the setup. A rubber band indicator will appear and allow rotation of the setup and or bundle.


Tips for Viewing

Links are colored GREEN YELLOW or RED to indicate the error.

By default:

  • GREEN indicates an overall error of less than 7mm.

  • YELLOW indicates an overall error between 7mm and 10mm.

  • RED indicates an overall error of greater than 10mm.

  • BLUE indicates a pre-registered or user created link.

  • WHITE White indicates a suggested link.

  • Dashed link indicates that the link is un-optimized.

Defaults for error thresholds can be changed in the Settings area.

Bundle Inspection and Bundle Joining

When a Bundle or Link is selected, there will be a value of Strength shown in the properties panel. The video below explains how this value is calculated and what it means to the user.


Use horizontal slices to spot check your registration. Each setup scan is colored differently to easily view how well they align.
