Option to Publish by LimitBox

Users can choose to publish only the points inside of existing Limit Boxes to E57, PTS, and RCP as a single cloud. Publishing only a Limit Box allows users to selectively reduce the size of an export to only a certain area of interest and speed up the publishing process.

Points exported by Limit Box will be exported as unstructured data.

  • Create Limit Boxes per normal procedure.

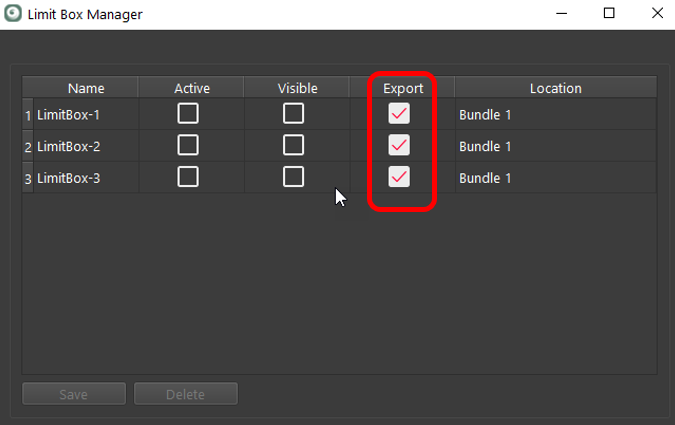

  • Save Limit Box and select the Export check box.

  • Proceed through the Finalize to the Report area.

  • Select the desired publish format. The following formats are supported: PTS, E57, and RCP (cloud).

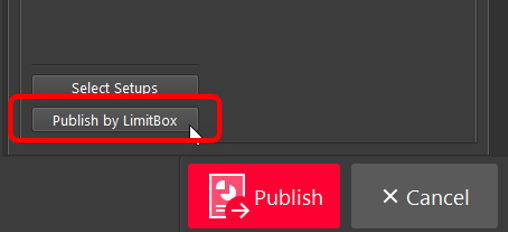

  • Click Publish by LimitBox.

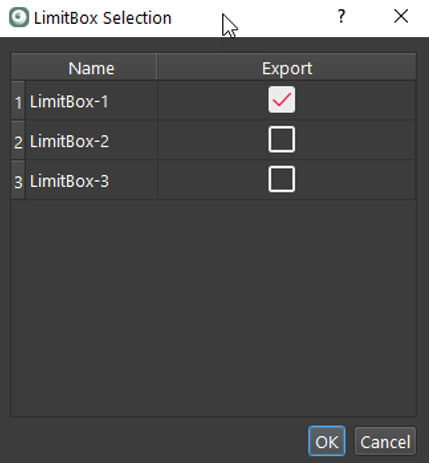

  • Select the desired Limit Boxes to publish and click the OK button.

  • Proceed to the Publish step to complete the process.

Note: All points published this way will be in an unstructured format, so the export will not import back into Cyclone REGISTER 360 2020 or earlier.
